Introduction

Go to step 1 ↓

Dismantling and Recycling Centre (DRZ)

Katharina Lenz, Vienna / Austria

Health & Safety

Dismantling doesn't include any harmful steps. Nonetheless workers should wear personal protection equipment like gloves, goggles, apron, robust shoes and, especially for the vacuum cleaner, dusk masks.

Note: This is a general guide for most vacuum cleaners. As the construction can differ, the dismantling steps mentioned below can vary in their order. However, the described steps show what parts the removal should focus on.

What you need

Tools

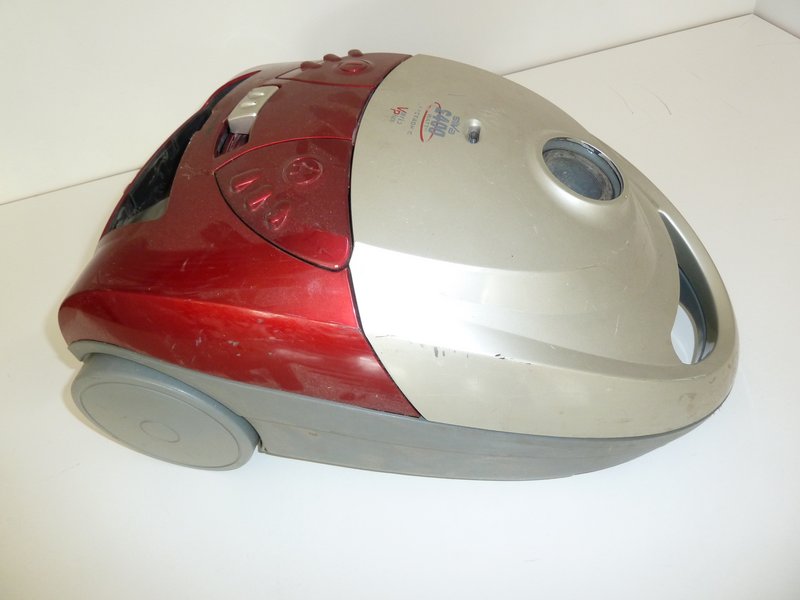

1. Step 1 Vacuum Cleaner
  Remove loose parts and the cover.
  Add Comment

  1024
2. Step 2
  Remove the dust bag.
  Add Comment

  1024
3. Step 3

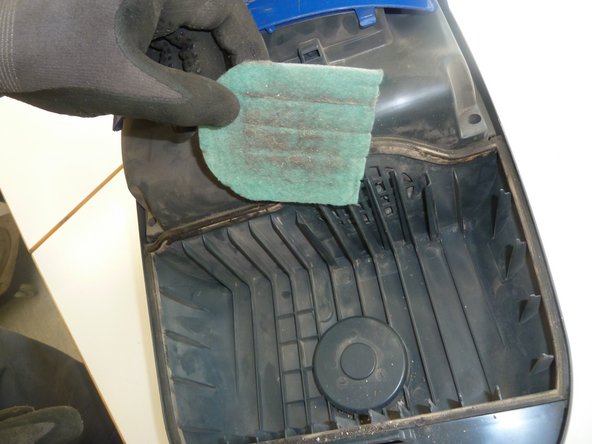

  Remove the filter.

  Remove the filter on the back of the vacuum.

  Remove the rubber seal.
  Add Comment

  1024
4. Step 4

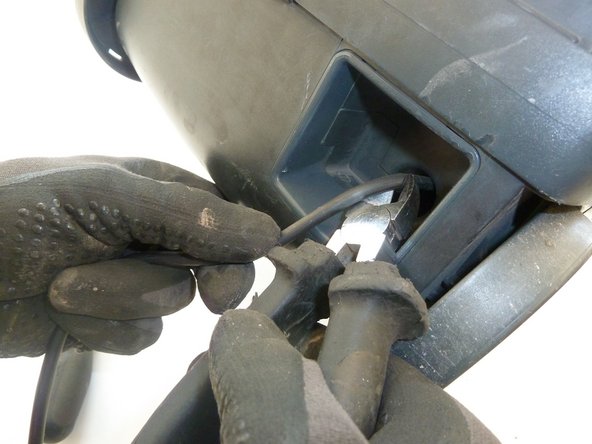

  Cut the power cable.
  Add Comment

  1024
5. Step 5

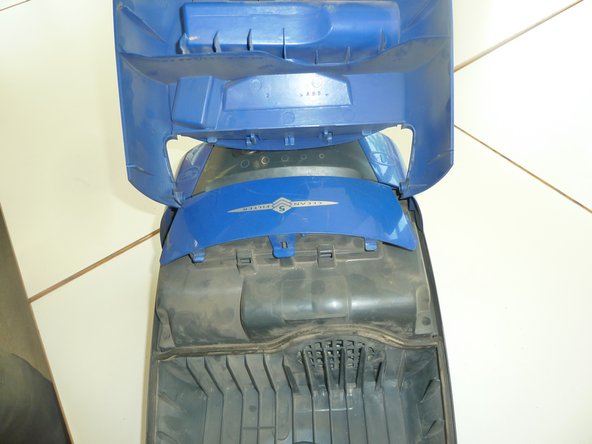

  Remove the case lid.
  Add Comment

  1024
7. Step 6

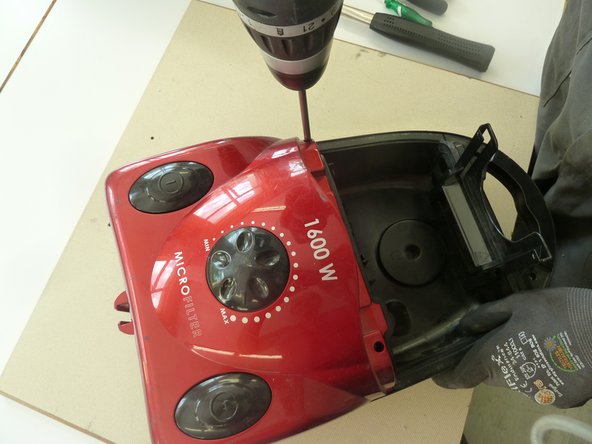

  Some vacuum cases need to be unscrewed to remove.
  Add Comment

  1024
8. Step 7

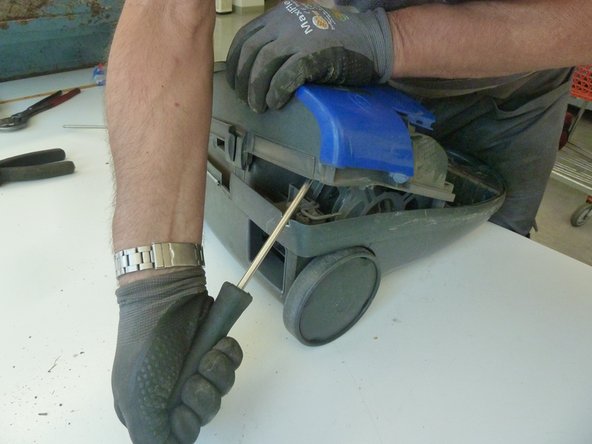

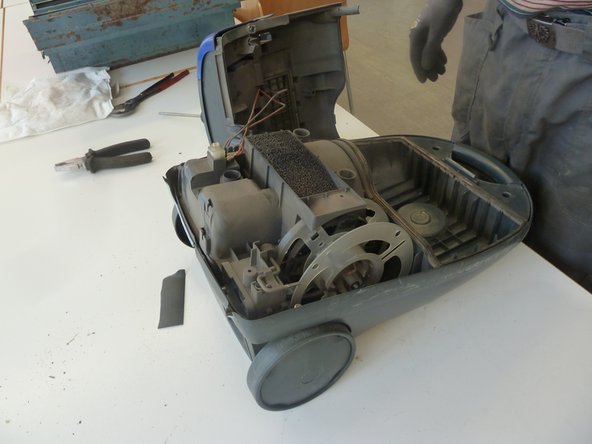

  Pry open the case.

  Remove the case.
  Add Comment

  1024
9. Step 8

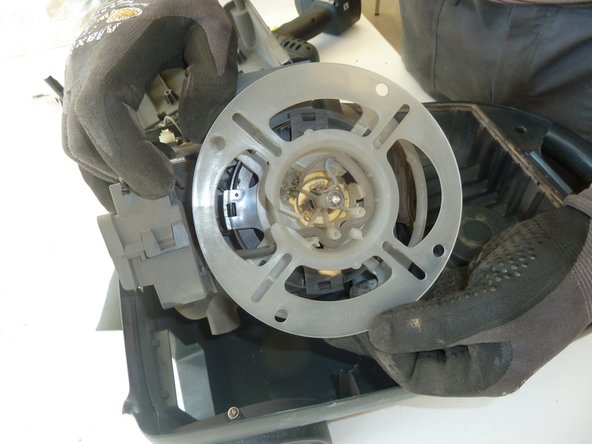

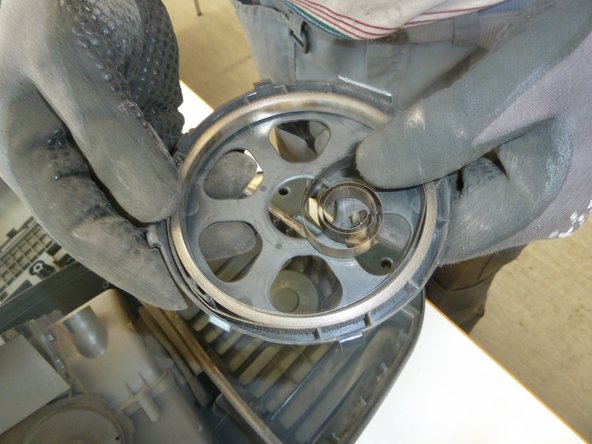

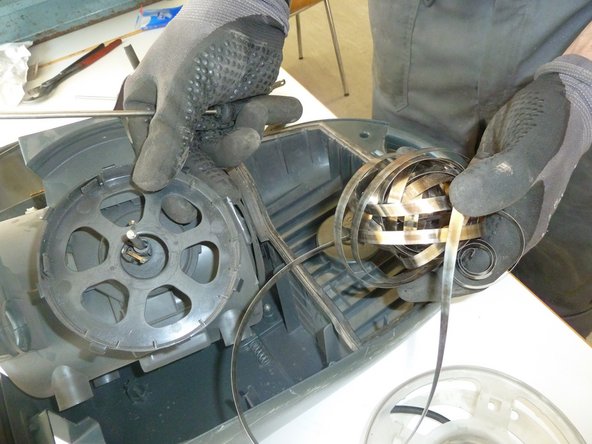

  Remove the cable drum.

  Remove the cable spring.
  Add Comment

  1024
10. Step 9

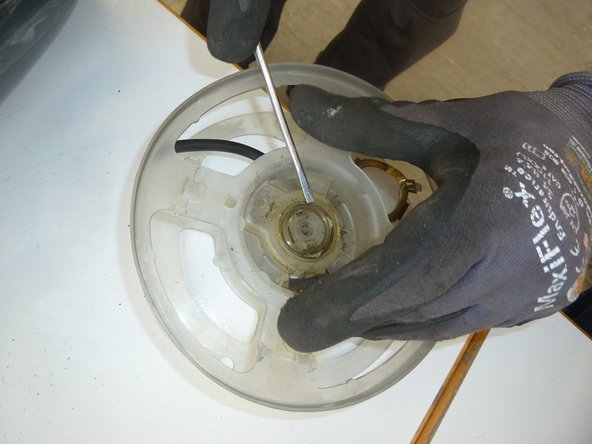

  Remove all the metal from the plastic parts of the cable drum.
  Add Comment

  1024
12. Step 10

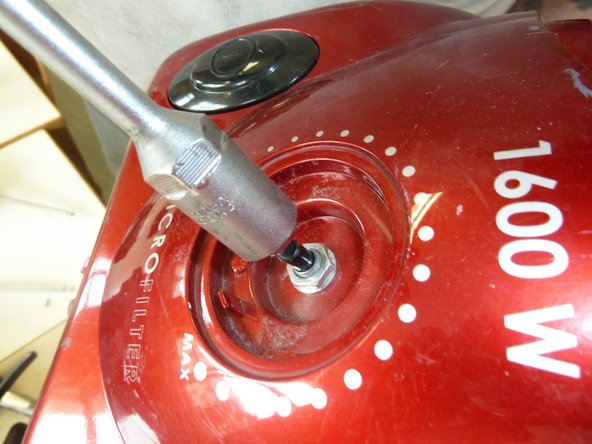

  Pry off the plastic cover of the switch.

  Remove the nut.
  Add Comment

  1024
13. Step 11

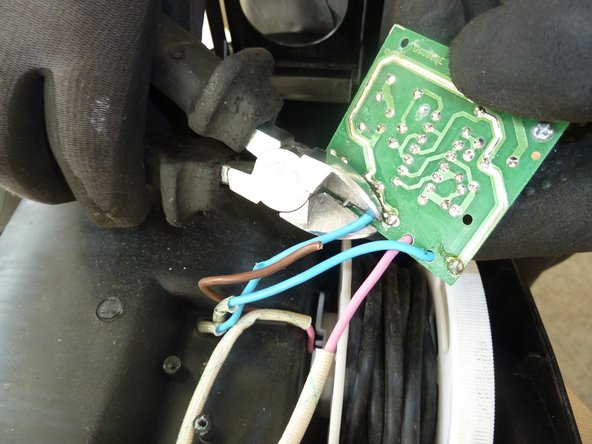

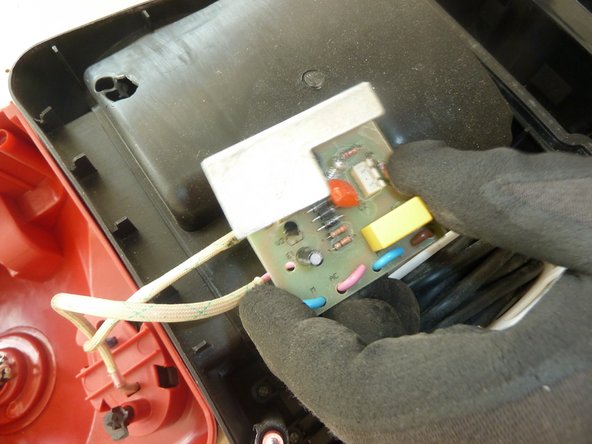

  Remove the PWB.

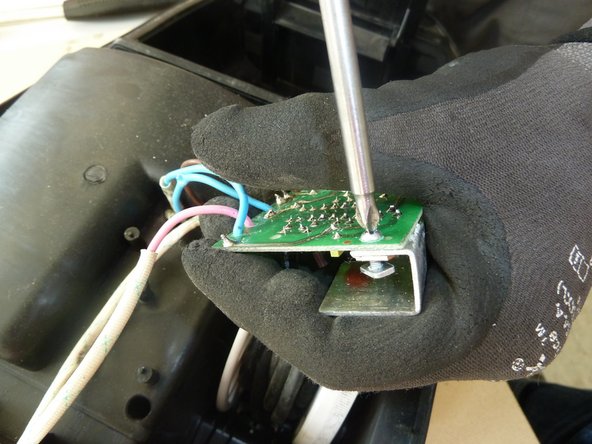

  Remove the screws that connect the PWB to the aluminium.

  Cut the wires of the PWB.
  Add Comment

  1024
14. Step 12

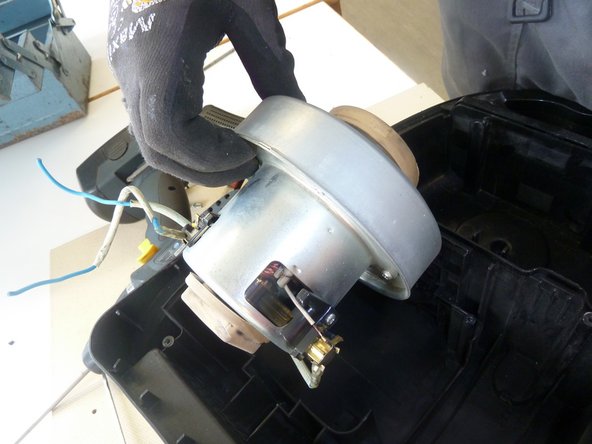

  Remove the motor.
  Add Comment

  1024
15. Step 13

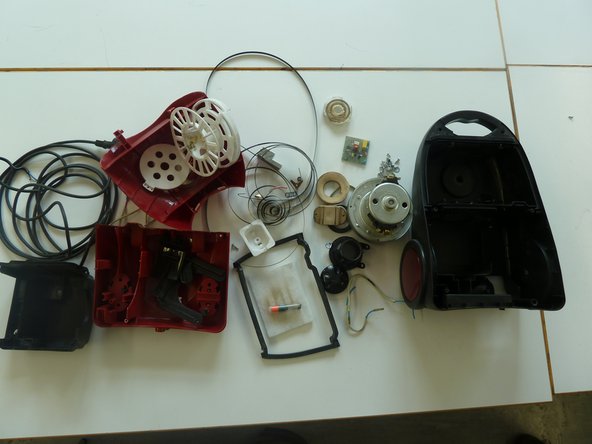

  Separate the remaining materials according to their type and go on with the appropriate data sheet (e.g. aluminium, ferrous metals, plastic, further PWBs, etc.).

  Make sure the plastic parts are completely free of metal pieces.
  Add Comment

  1024
