Xbox 360 Motherboard Replacement
Introduction
Go to step 1Use this guide to completely strip down your motherboard. Before reattaching the CPU and GPU heat sinks, be sure to apply a new layer of thermal paste.
What you need
Parts
Tools
Show more…
-
-

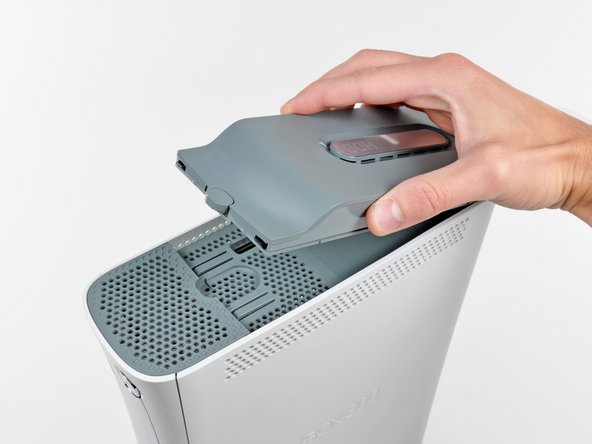

Grasp the hard drive assembly and press the release button while lifting its front edge.
-
Remove the hard drive assembly from the top vent.
-
-
-

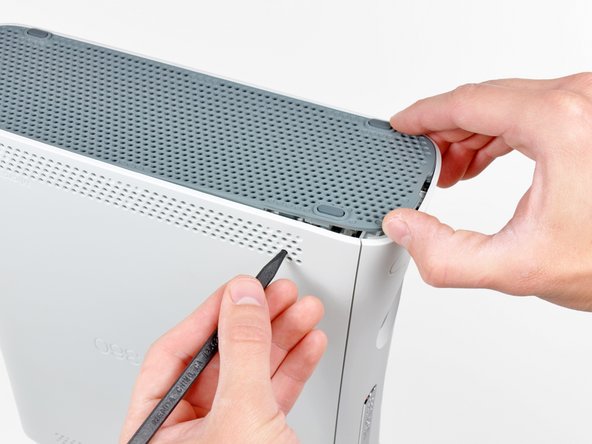

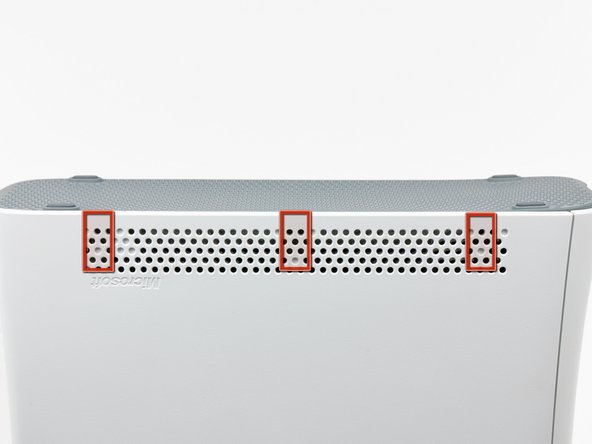

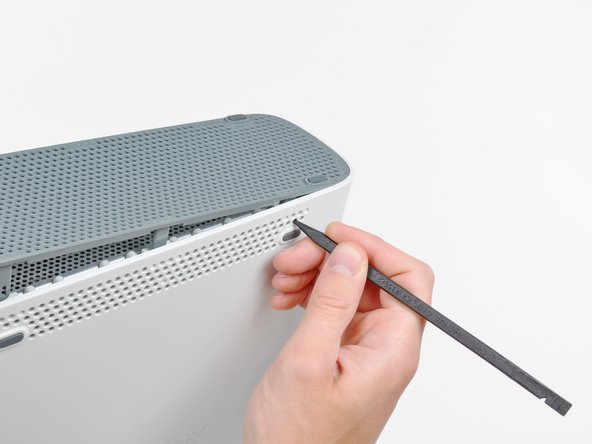

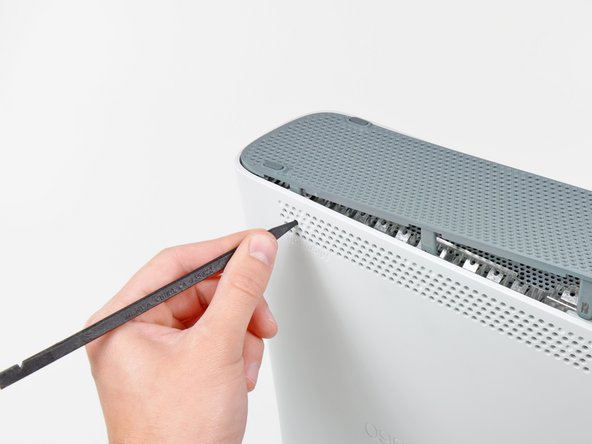

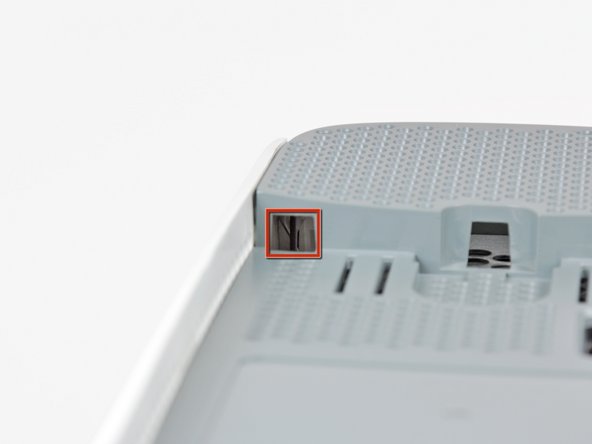

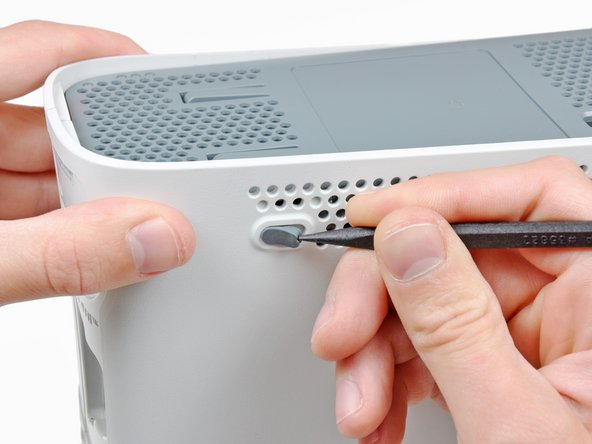

Insert the flat end of a spudger or the edge of an Xbox 360 opening tool into the small gap at the front edge of the bottom vent.
-

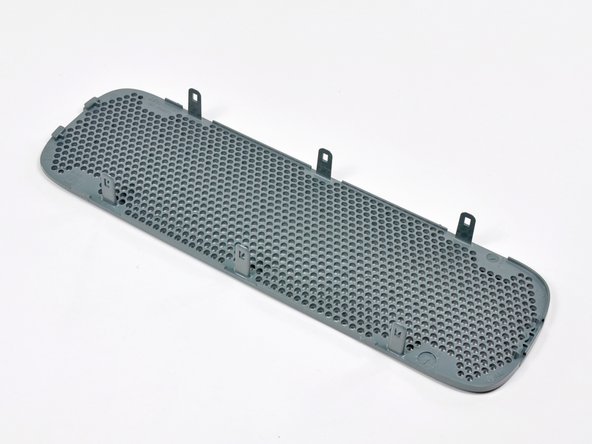

Pry the front edge of the bottom vent away from the faceplate.
-
-
-

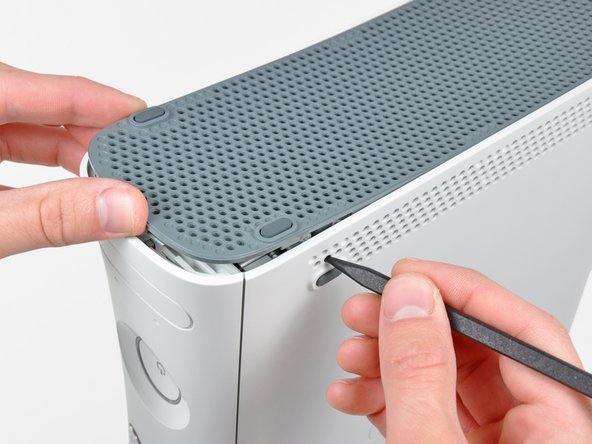

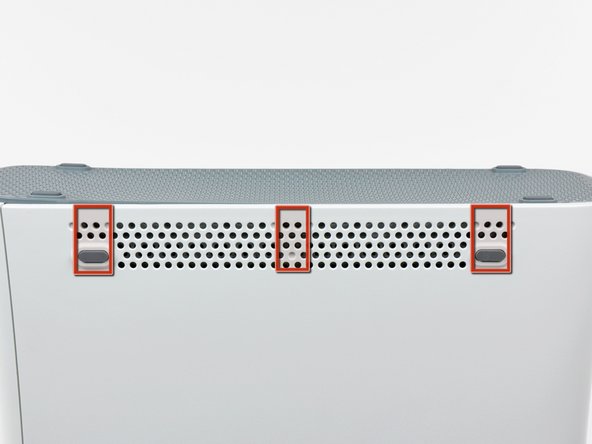

To release the clips, work from the front edge of the bottom vent.
-

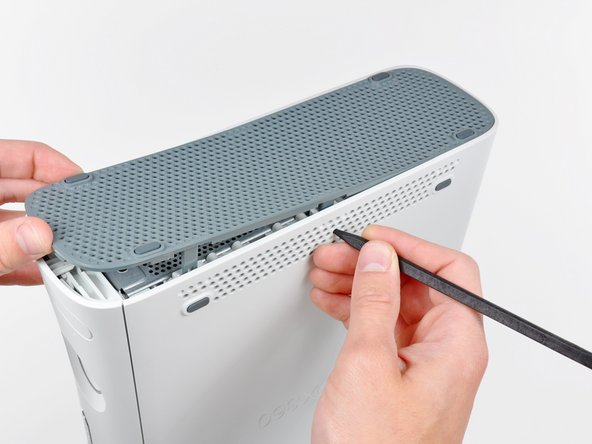

While slightly lifting the front edge of the bottom vent, use the tip of a spudger to push the clips closest to the front of the bottom vent towards the inside of the console.
-
-
-
Use the tip of your spudger to release the clips on the bottom vent nearest the back of the Xbox.
-
-
-

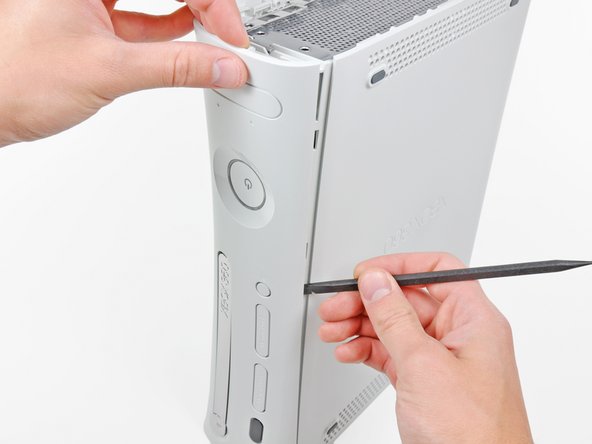

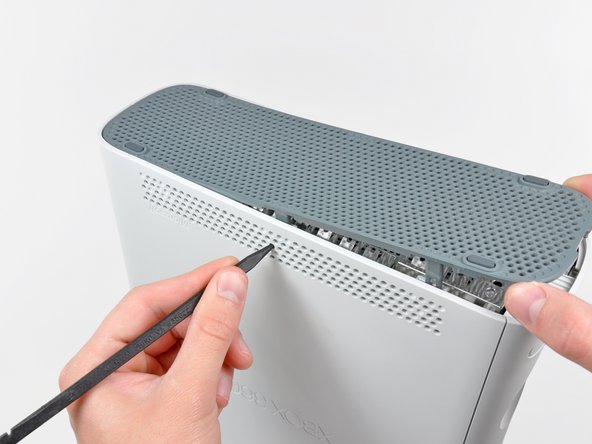

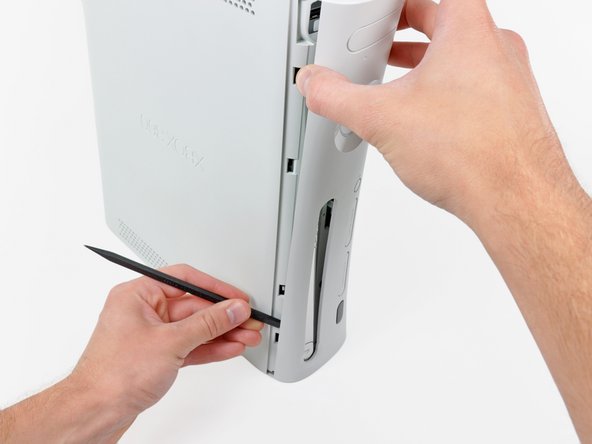

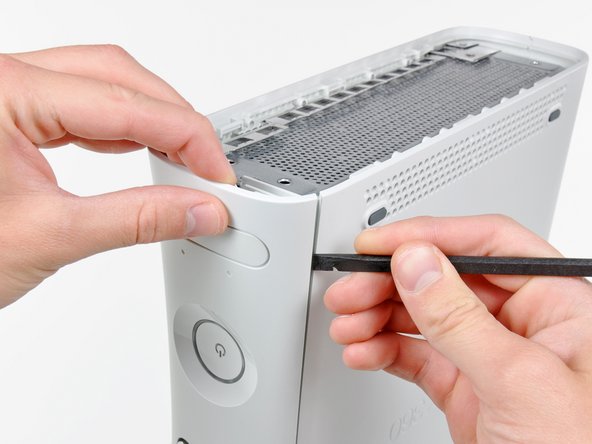

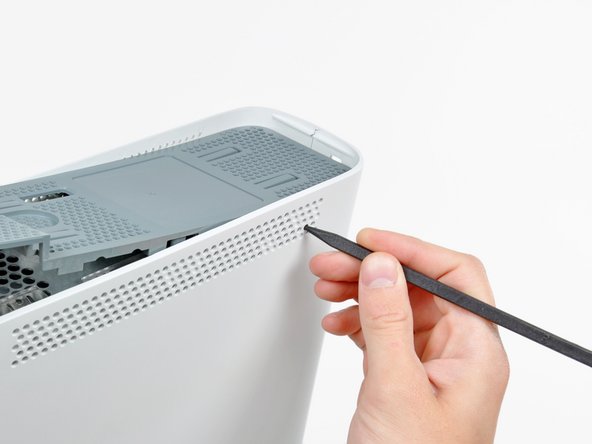

Insert the edge of a spudger between the faceplate and the outer casing near the power button.
-

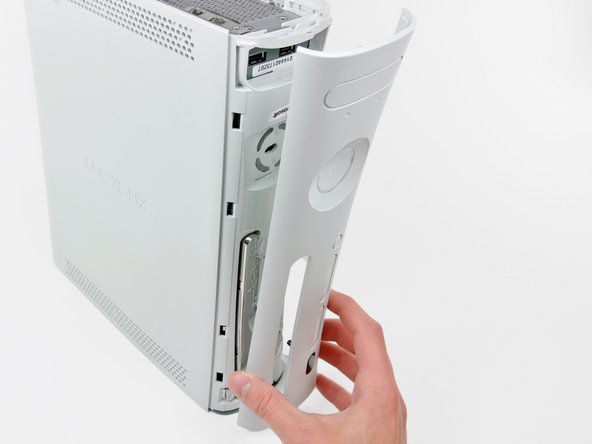

Run your spudger along the edge of the faceplate to release the clips securing it to the front of the console.
-
-
-

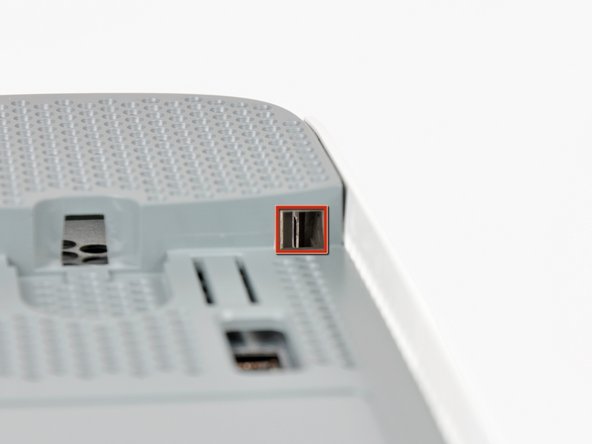

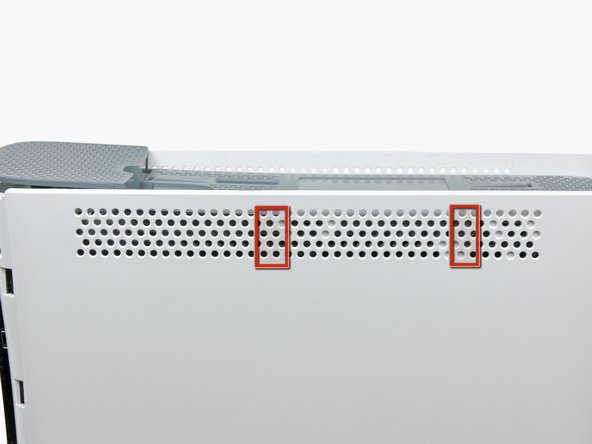

The top vent is secured to the console via clips. The first two clips are located underneath the top vent closest to the faceplate, as shown in the pictures.
-
-
-

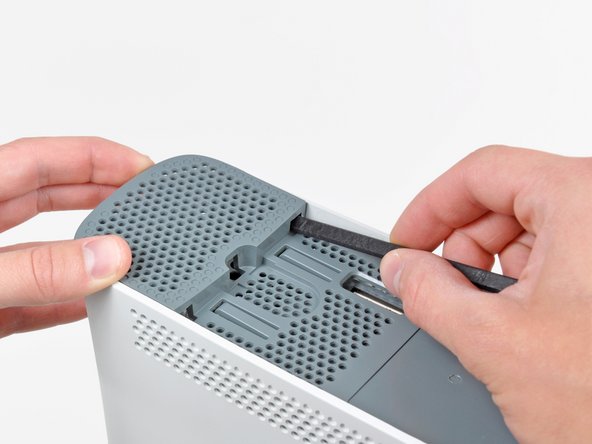

Insert the flat end of a spudger into the small gaps previously mentioned to release the clips.
-
-
-

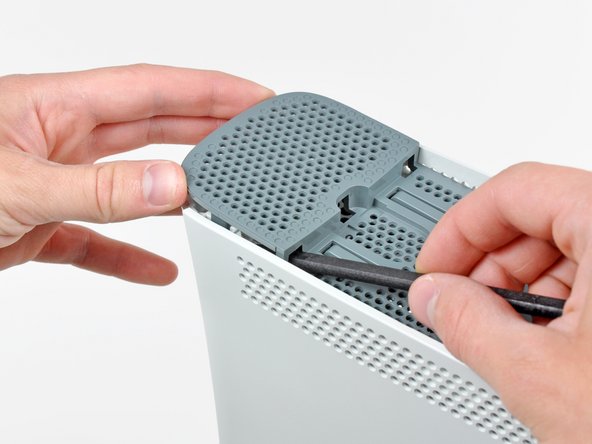

To release the clips, work from the middle of the top vent.
-

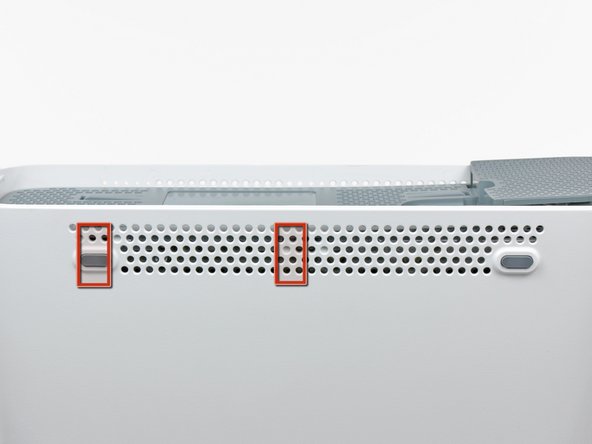

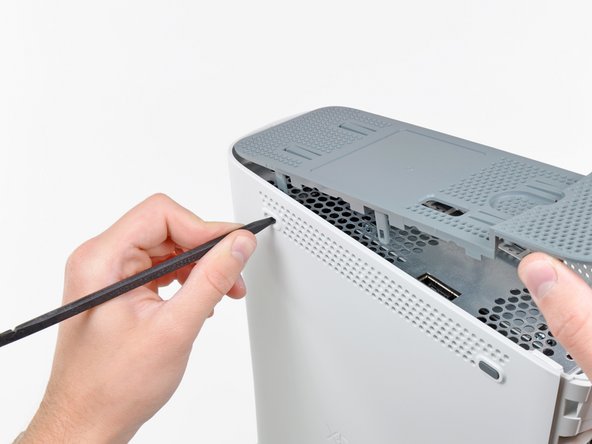

While slightly lifting the front edge of the top vent, use the tip of a spudger to push the clips closest to the center of the top vent towards the inside of the console.
-
-
-

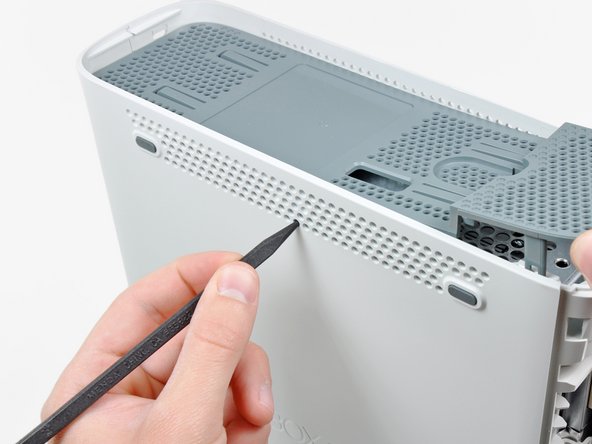

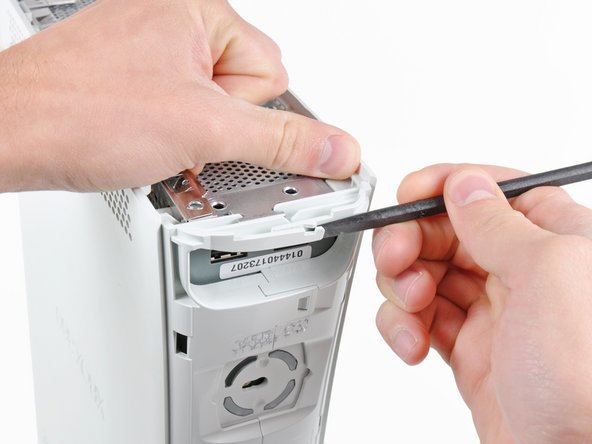

Use the tip of your spudger to release the clip on the top vent nearest the back of the Xbox's upper case.
-
-
-

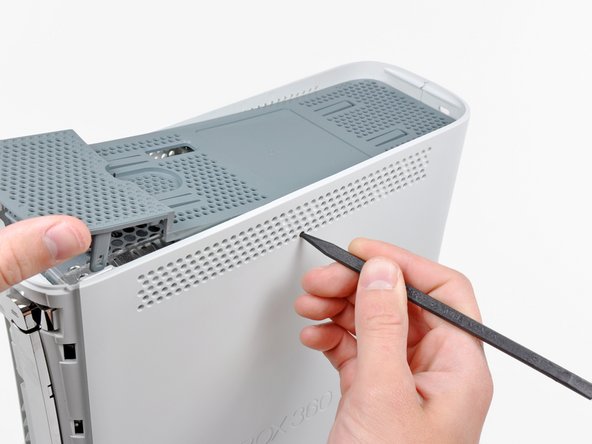

Use the tip of your spudger to release the clip on the top vent nearest the back of the Xbox.
-

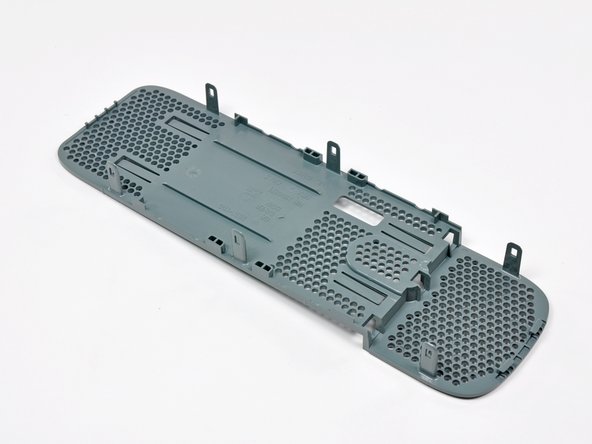

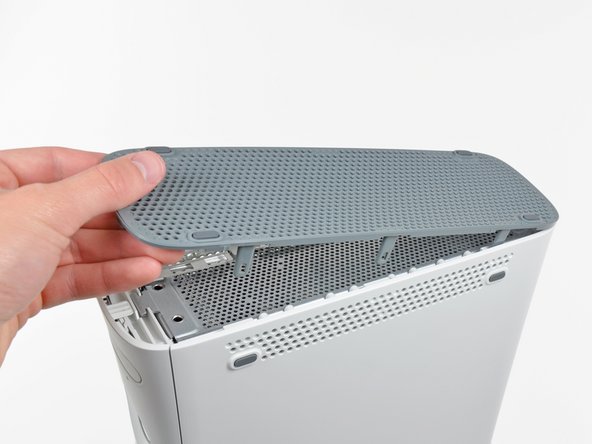

Remove the top vent from the 360.
-
-
-

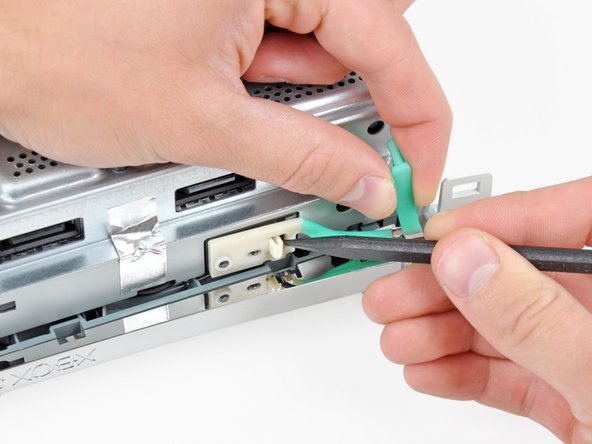

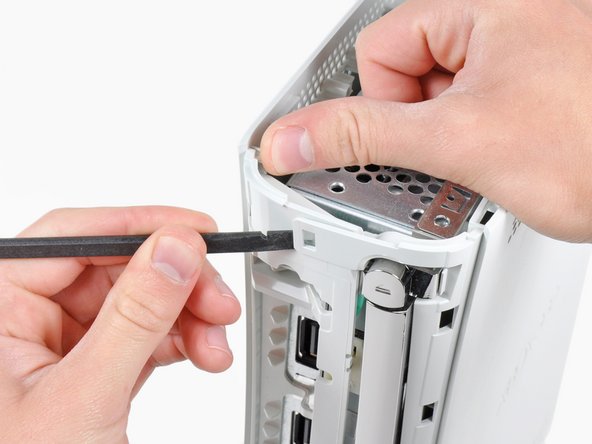

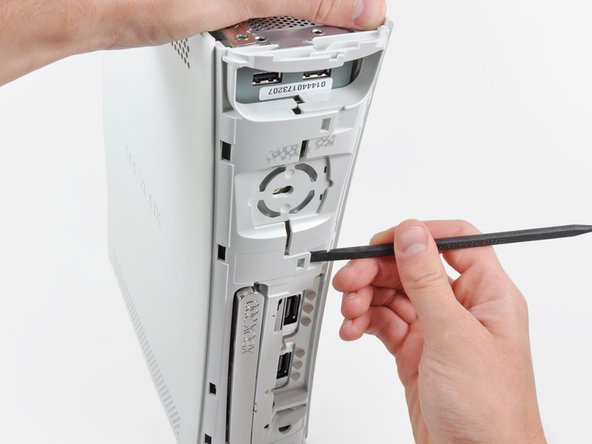

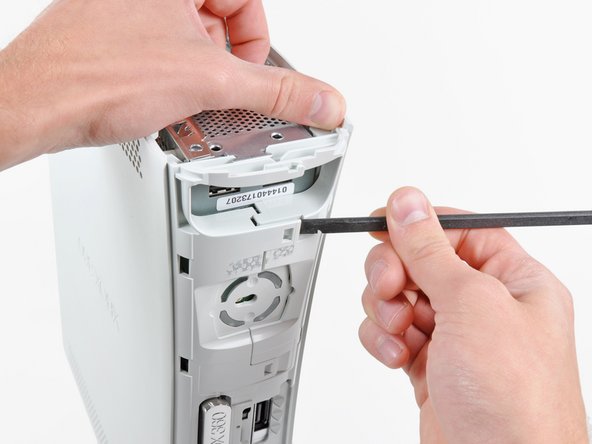

Use the flat end of a spudger to release the following latches:
-
Above the front-facing USB ports.
-
Beneath the front-facing USB ports.
-
Above the Memory Unit slots.
-
-
-

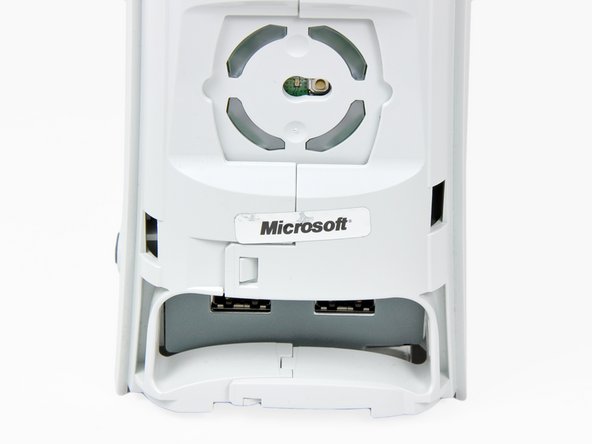

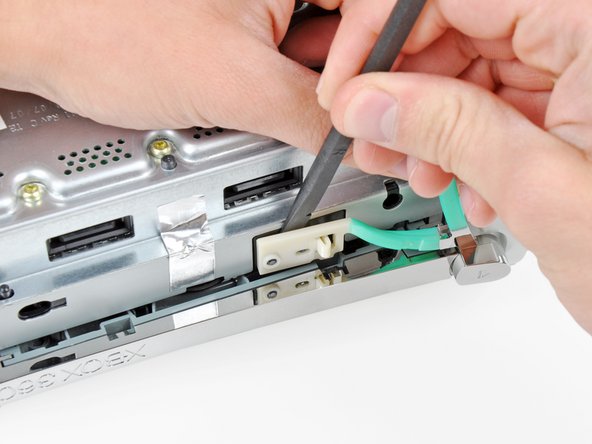

Insert the flat end of a spudger and pry upwards to release the last remaining latch located above the eject button.
-
-
-
Slightly lift the front portion of the lower case to ensure that the latches in the front have been completely released.
-
-
-

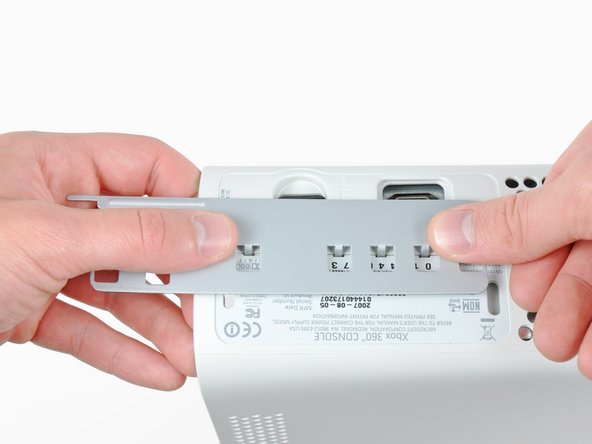

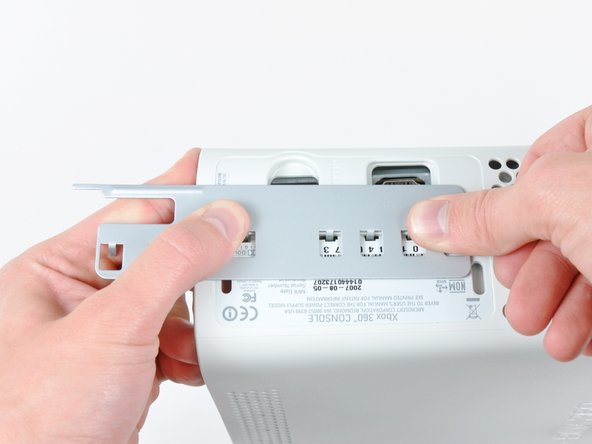

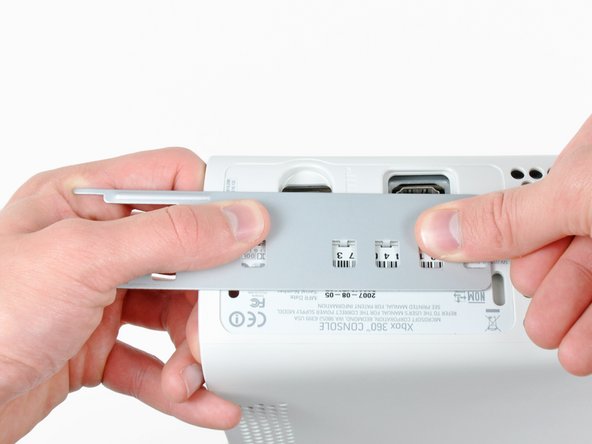

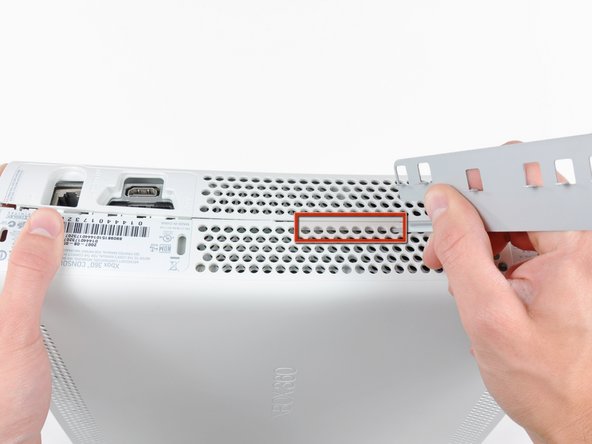

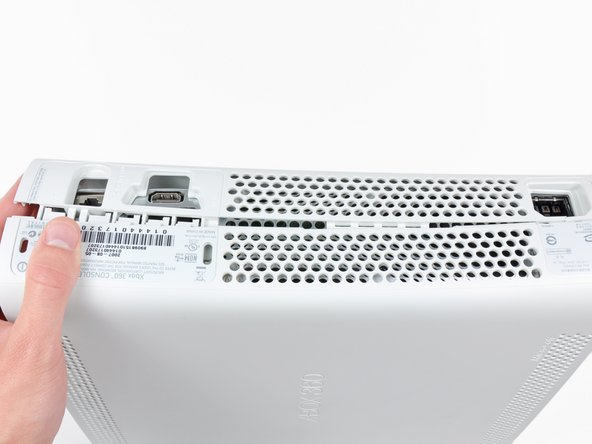

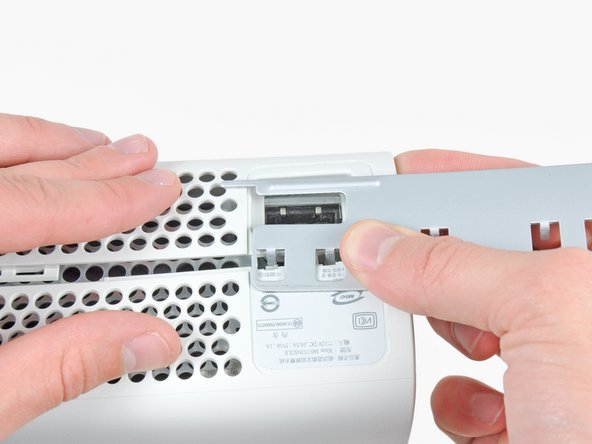

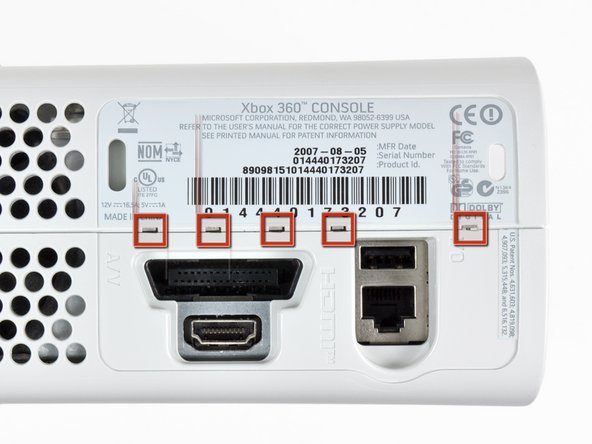

Press the Xbox 360 opening tool down into the clips securing the lower case to the upper case near the I/O ports.
-
While pressing down on the tool, push the lower and upper cases apart to separate the retaining clips.
-
-
-
While pushing the upper and lower cases apart, use the tip of a spudger or the finger of an Xbox 360 opening tool to push the long clip highlighted in red toward the center of the 360.
-
The clip should release, leaving the clips near the power connector as the only thing holding the upper and lower cases together.
-
-
-

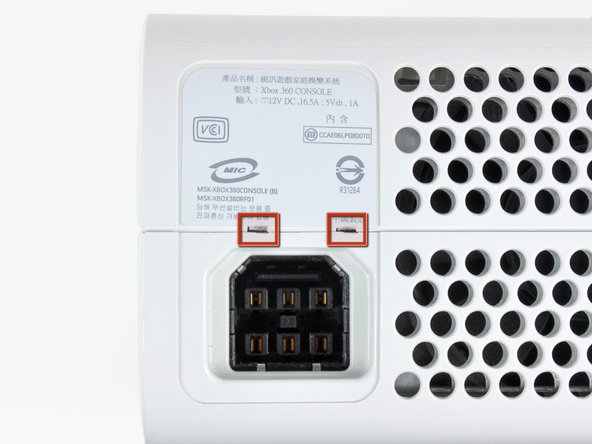

Press the Xbox 360 opening tool down into the two remaining clips near the power connector.
-

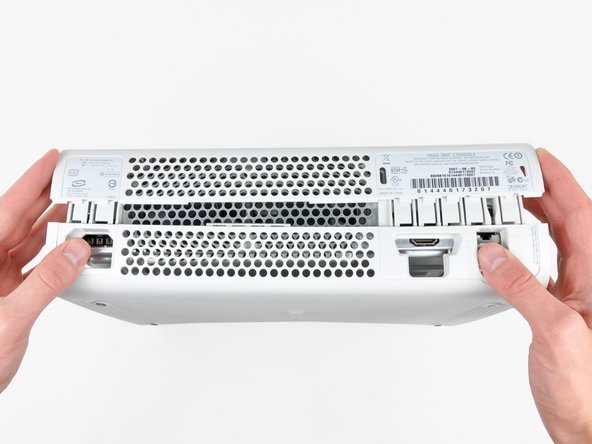

Push the upper and lower cases apart to fully release the retaining clips.
-
-
-

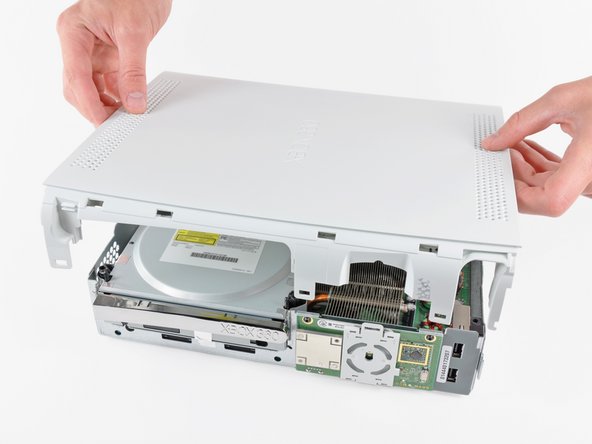

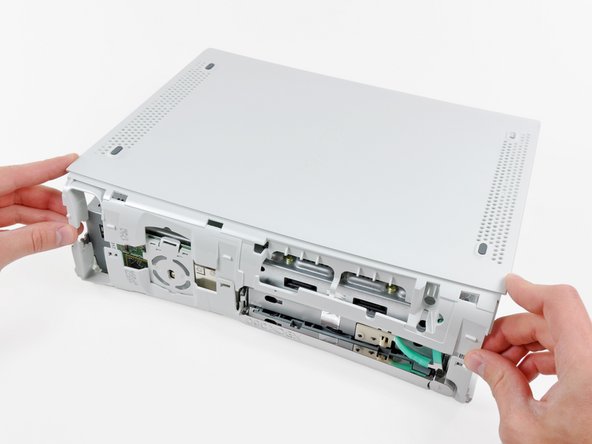

Grasp the back portion of the lower case and lift it upwards to separate it from the console.
-
-
-
Use the tip of a spudger to release the clip securing the eject button to the metal casing.
-
Insert the flat end of a spudger between the eject button and the optical drive.
-
Pry the eject button off its retaining posts and remove it from the 360.
-
-
-

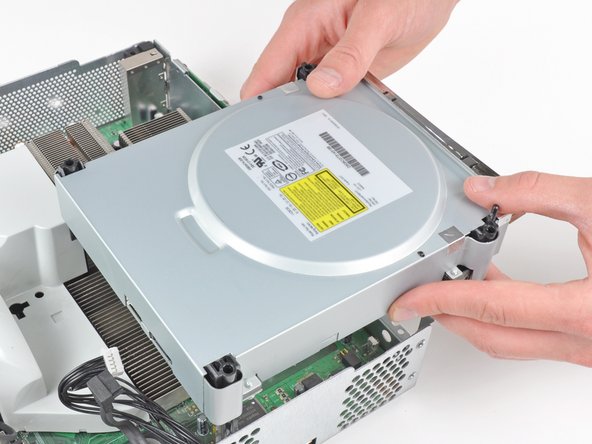

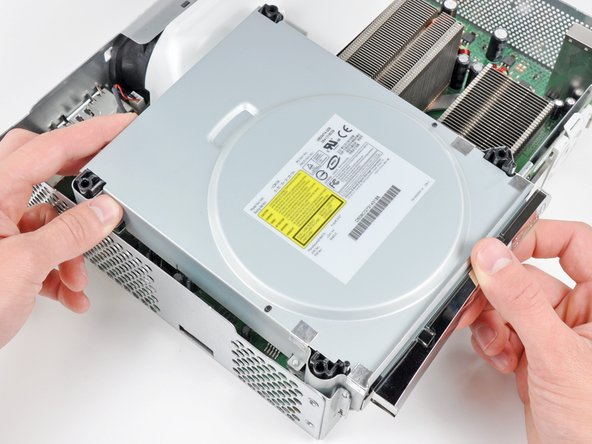

Slightly lift the optical drive upwards to gain clearance to disconnect the SATA and power connectors located on the backside of the optical drive.
-
-
-

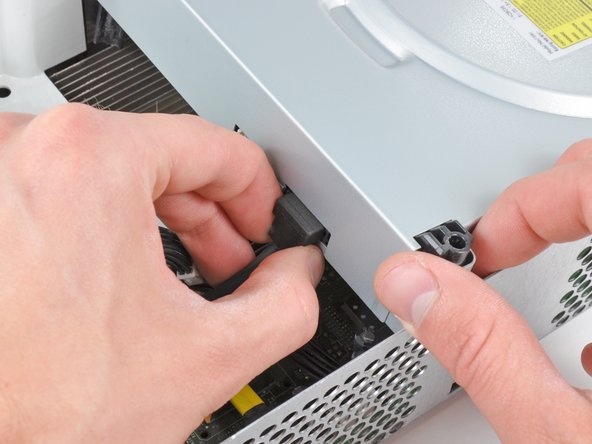

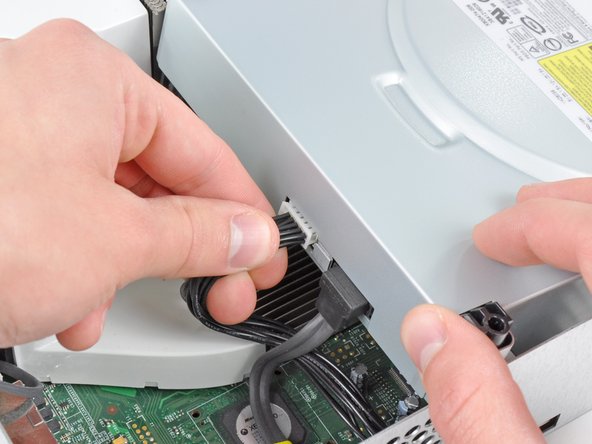

Grab the power connector by its cables and pull it straight out of its socket on the optical drive.
-
Disconnect the SATA data connector from its socket on the optical drive by pulling it straight away.
-
-
-

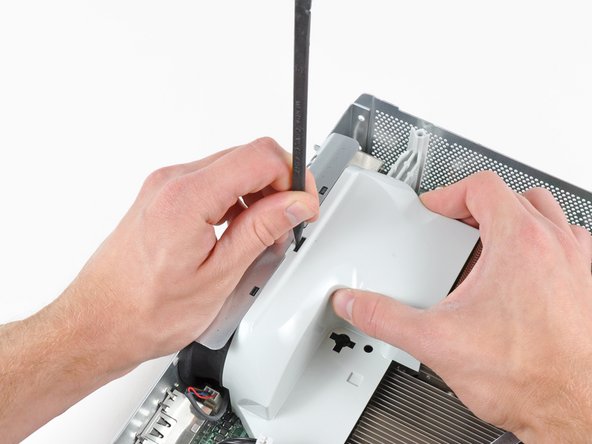

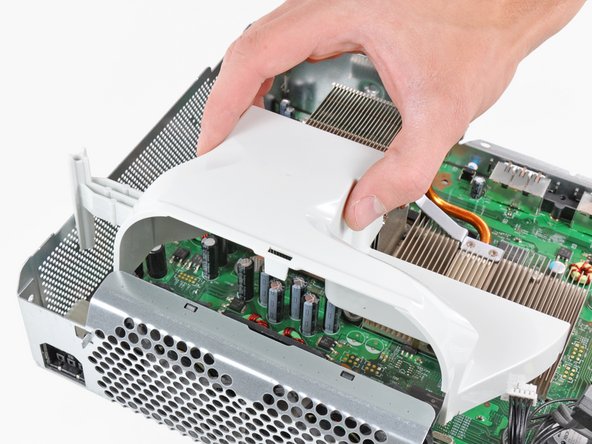

Insert the flat end of a spudger into the small rectangular opening on the top of the cooling fan duct.
-
Carefully release the fan duct retaining clip and remove the fan duct from the Xbox.
-
The clip can alternatively be released using the metal finger of an Xbox 360 opening tool.
-
-
-

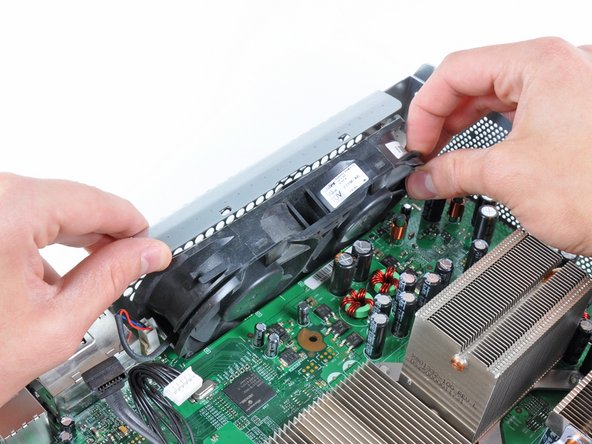

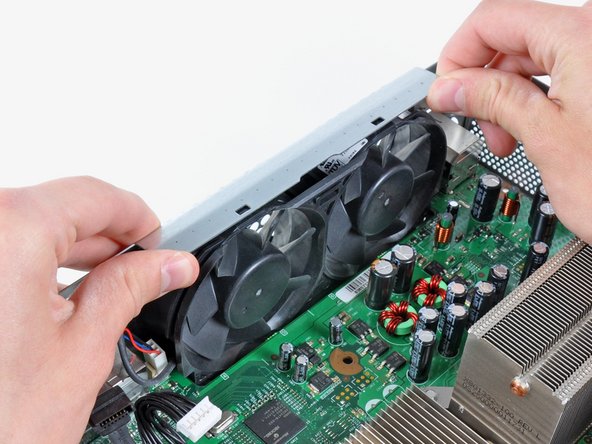

While lifting the metal chassis strip above the dual fans, pull the fans toward the center of the motherboard.
-
-
-

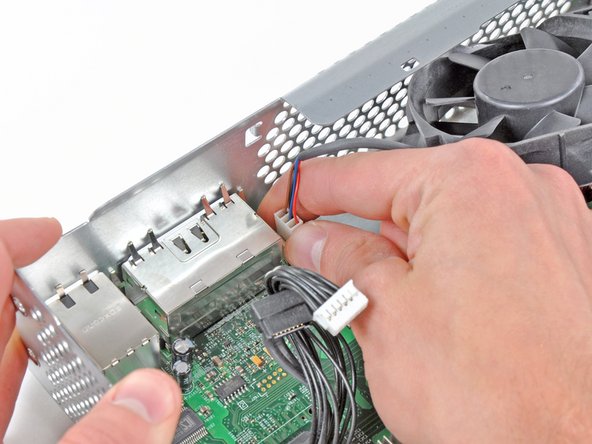

Lift the dual fan connector straight up from its socket on the motherboard.
-
Remove the dual fan assembly from the console.
-
-
-

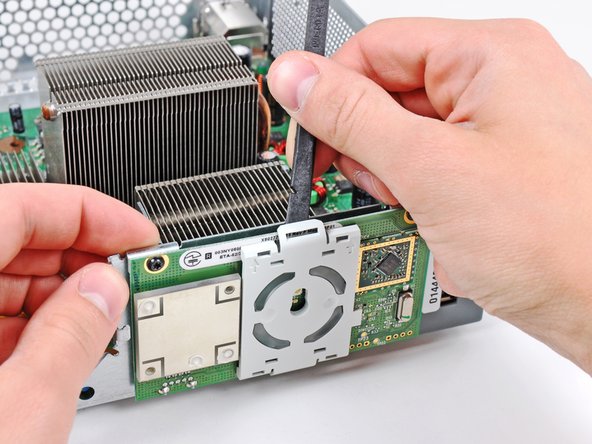

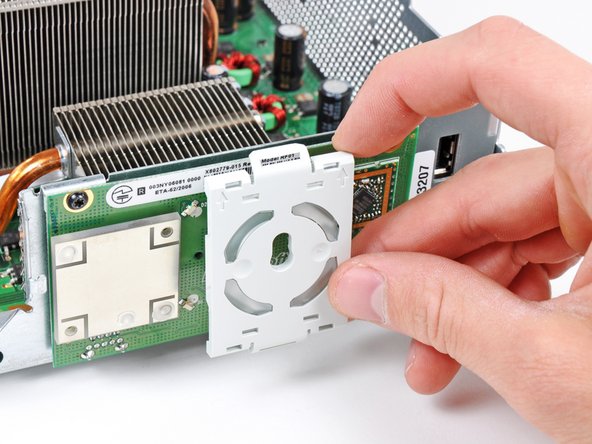

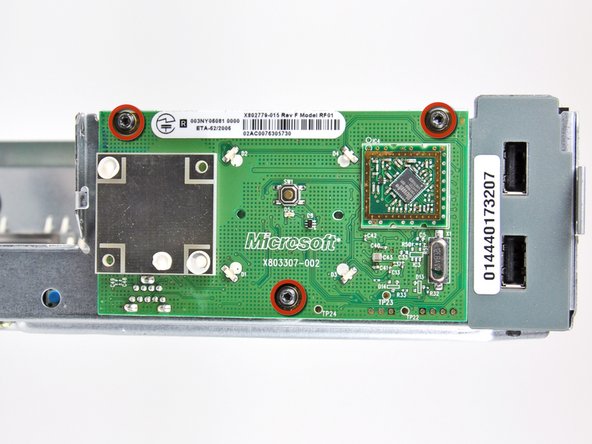

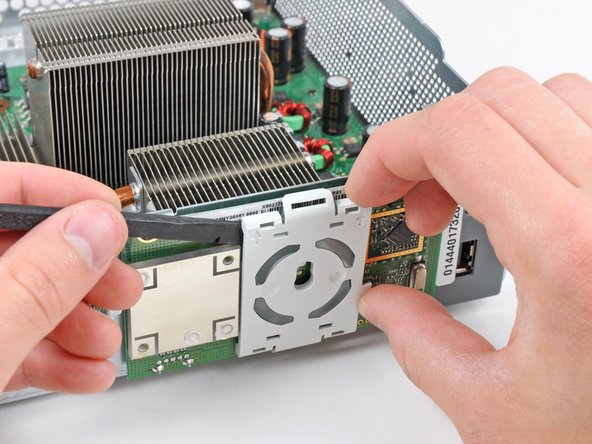

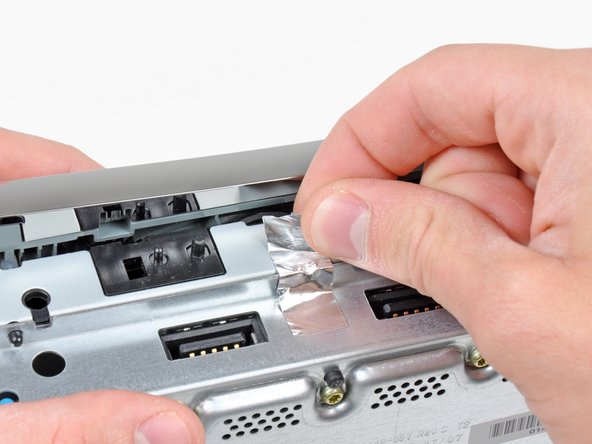

Use the flat end of a spudger to release the clips securing the RF module shield along the top and the left edge of the RF module.
-
Remove the RF module shield from the console.
-
-
-

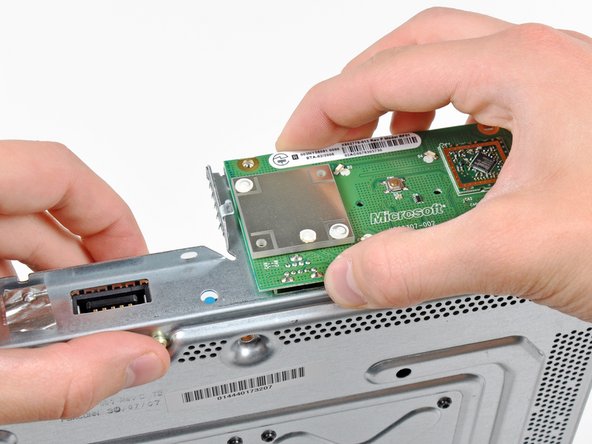

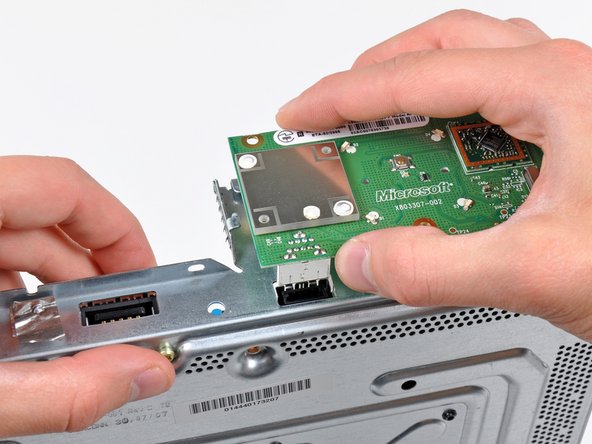

Grasp the RF module and lift it straight up to disconnect it from its socket on the motherboard.
-
Remove the RF module from the console.
-
-
-

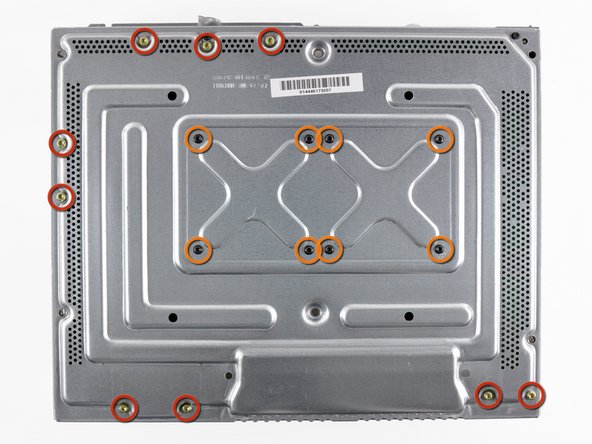

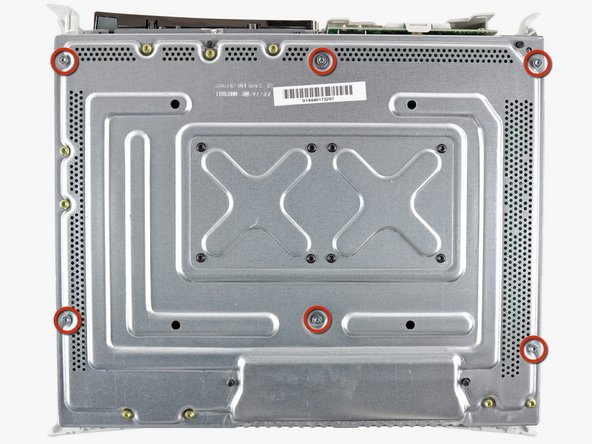

Remove the following screws securing the motherboard to the metal casing:
-
Nine gold 11 mm T10 Torx screws.
-
Eight black 5.6 mm T8 Torx screws.
-
-
-

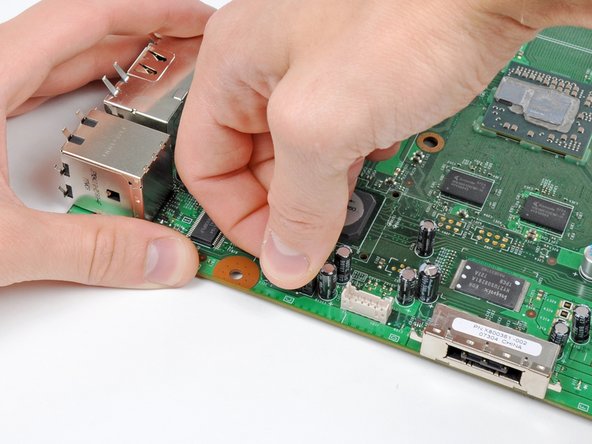

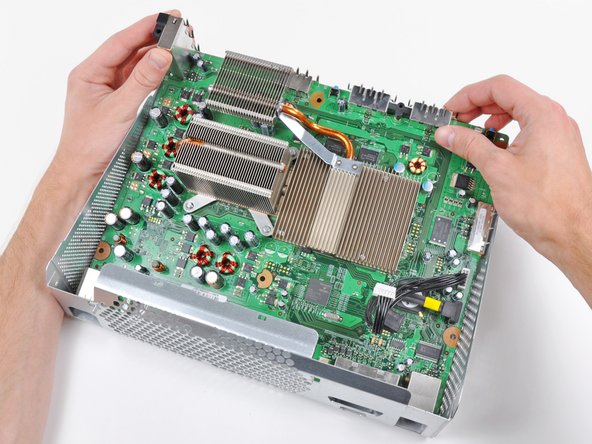

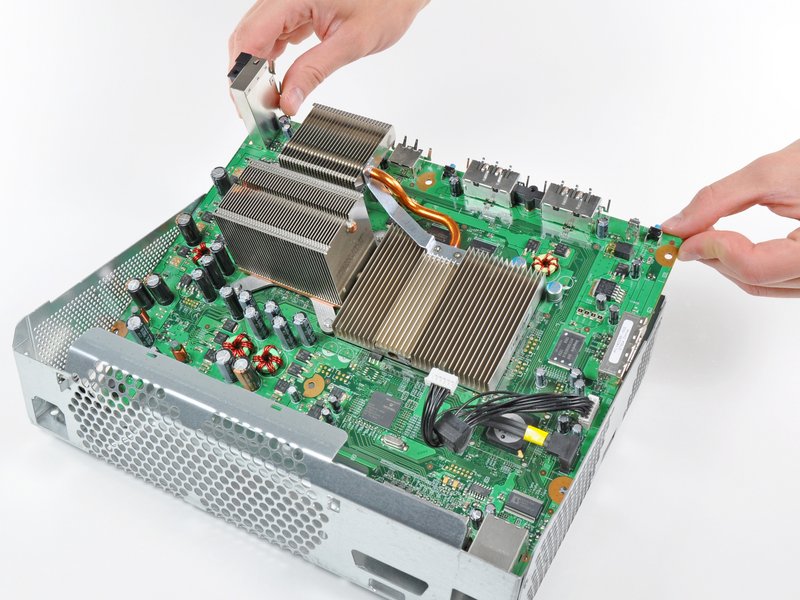

Lift the motherboard assembly from its front edge.
-

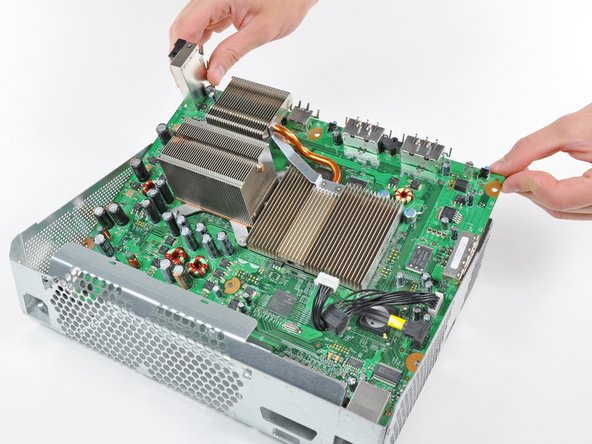

Remove the motherboard assembly from the metal casing.
-
-
-

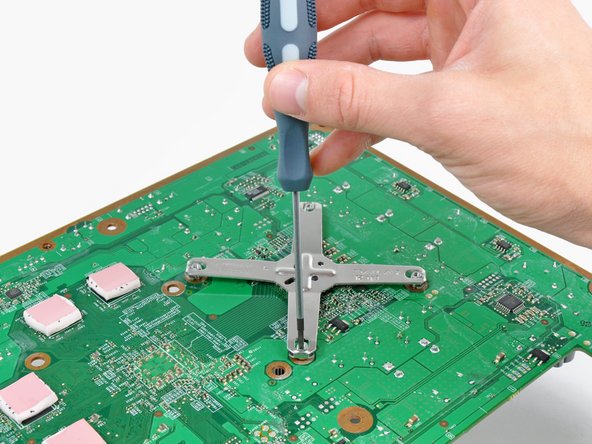

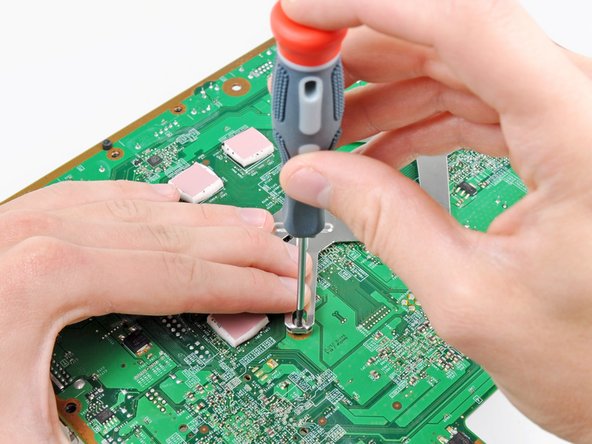

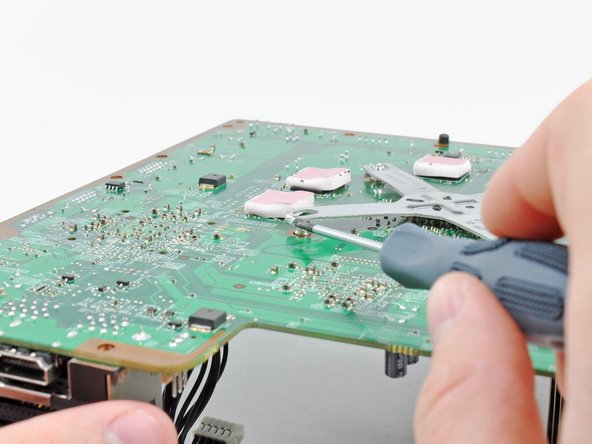

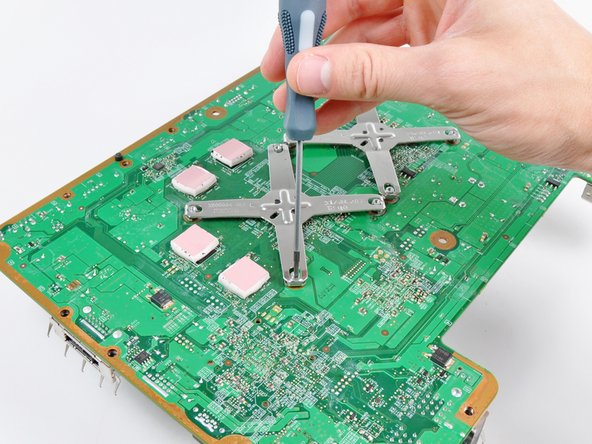

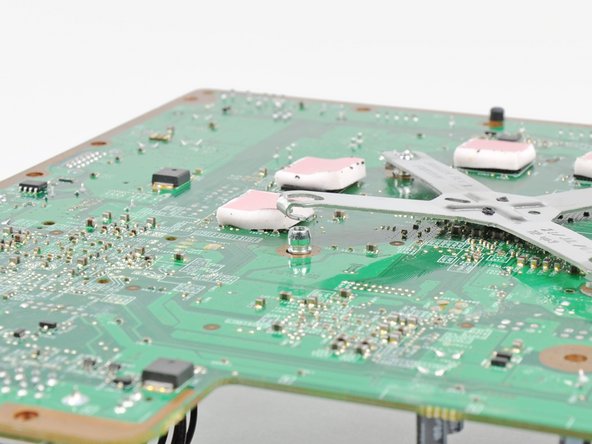

Insert the tip of a small flathead screwdriver between the X clamp and its retaining post on the heat sink.
-
Pry the X clamp away from its retaining post until it is lifted above the small groove cut into the retaining post.
-
-
-
Insert your screwdriver parallel to the motherboard between the X clamp and its retaining post.
-
Twist the screwdriver to fully release the X clamp from its retaining post.
-
-
-
Insert the tip of a small flathead screwdriver between the X clamp and its retaining post on the heat sink.
-
Pry the X clamp away from its retaining post until it is lifted above the small groove cut into the retaining post.
-

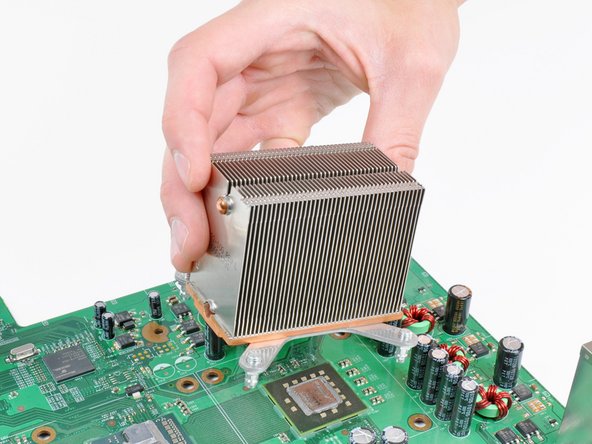

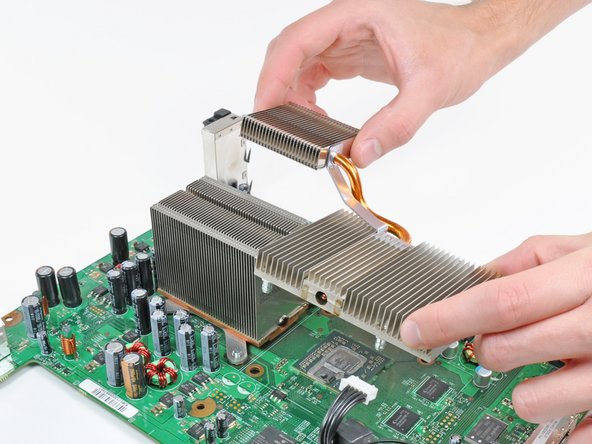

Remove the CPU heat sink from the motherboard. When reinstalling the CPU heat sink, be sure to apply a new layer of thermal paste.
-
-
-

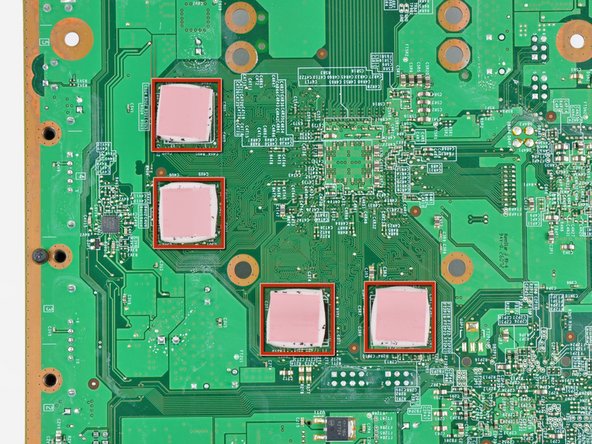

If replacing the motherboard transfer the four thermal pads on the underside of the motherboard to your new motherboard.
-

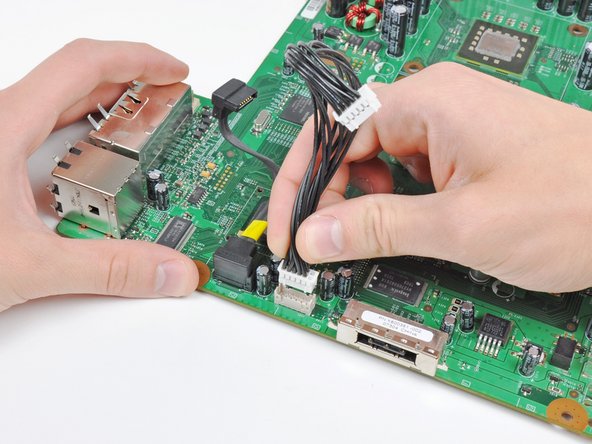

Motherboard remains.
-
To reassemble your device, follow these instructions in reverse order.
To reassemble your device, follow these instructions in reverse order.
