  1. Xbox 360 Wireless Controller Bumper Panel Replacement, Xbox 360 Wireless Controller Bumper Panel Replacement: step 1, image 1 of 2 Xbox 360 Wireless Controller Bumper Panel Replacement, Xbox 360 Wireless Controller Bumper Panel Replacement: step 1, image 2 of 2
    • Depress the battery release button on the top of the controller.

    • Remove the battery holder from the controller.

    • The standard option for Xbox 360 Wireless Controllers Battery Packs is AA batteries. A rechargeable battery is also available, but both battery options are removed from the controller in the same way.

  2. Xbox 360 Wireless Controller Bumper Panel Replacement: step 2, image 1 of 1
    • Use a pair of tweezers to peel the barcode sticker from the battery compartment.

  3. Xbox 360 Wireless Controller Bumper Panel Replacement: step 3, image 1 of 1

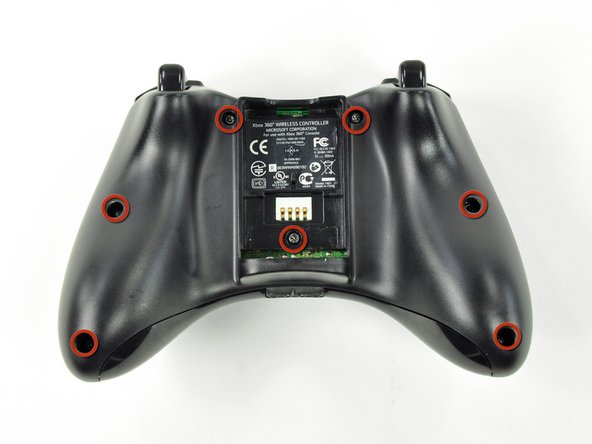

    • Remove the seven 9.3 mm T8 Security Torx screws securing the rear case to the front case.

  4. Xbox 360 Wireless Controller Bumper Panel Replacement: step 4, image 1 of 2 Xbox 360 Wireless Controller Bumper Panel Replacement: step 4, image 2 of 2

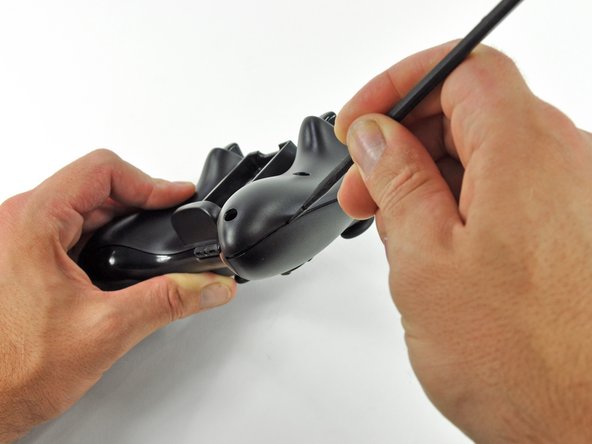

    • Insert a spudger between the front and rear cases along the left edge of the controller.

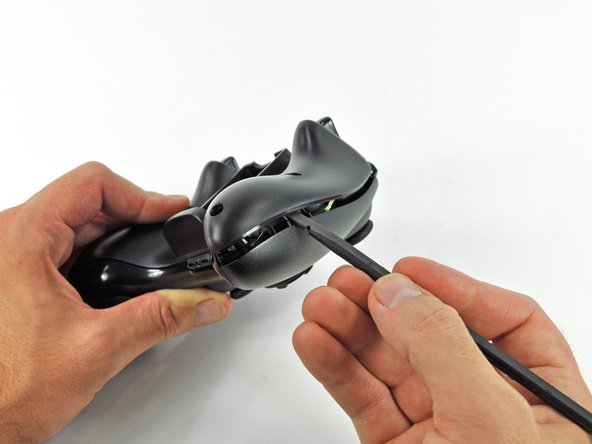

    • Rotate the spudger toward the front of the controller, prying the two cases apart.

  5. Xbox 360 Wireless Controller Bumper Panel Replacement: step 5, image 1 of 2 Xbox 360 Wireless Controller Bumper Panel Replacement: step 5, image 2 of 2

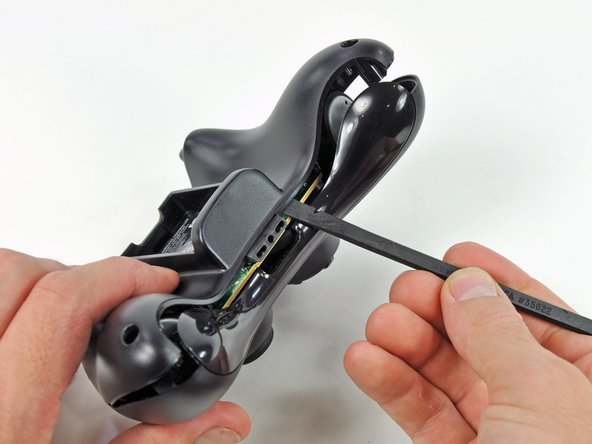

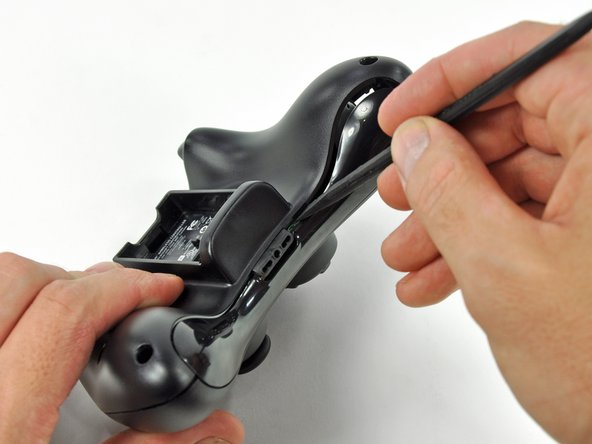

    • Insert a spudger between the front and rear cases, near the headphone jack.

    • Rotate the spudger toward the front of the controller to pry the two cases apart.

  6. Xbox 360 Wireless Controller Bumper Panel Replacement: step 6, image 1 of 2 Xbox 360 Wireless Controller Bumper Panel Replacement: step 6, image 2 of 2

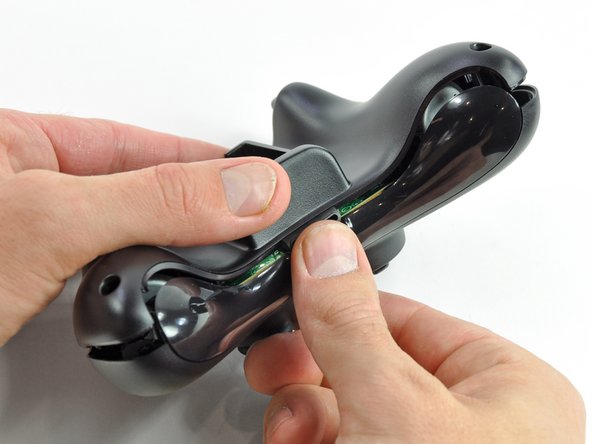

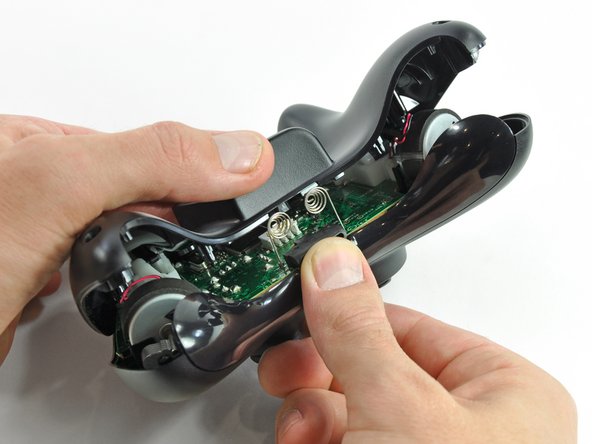

    • Grasp the controller by the battery compartment and the headphone jack.

    • Lift the battery compartment away from the headphone jack, separating the rear case from the front case and logic board.

    • The battery contact springs are held in place by slots in the battery housing in the rear case. Be sure to realign them properly during reassembly.

  7. Xbox 360 Wireless Controller Bumper Panel Replacement: step 7, image 1 of 2 Xbox 360 Wireless Controller Bumper Panel Replacement: step 7, image 2 of 2

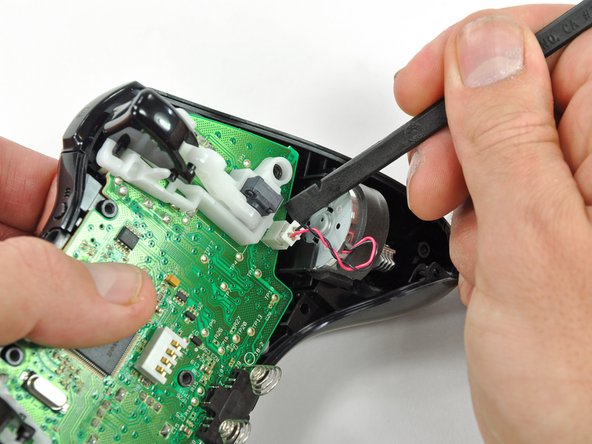

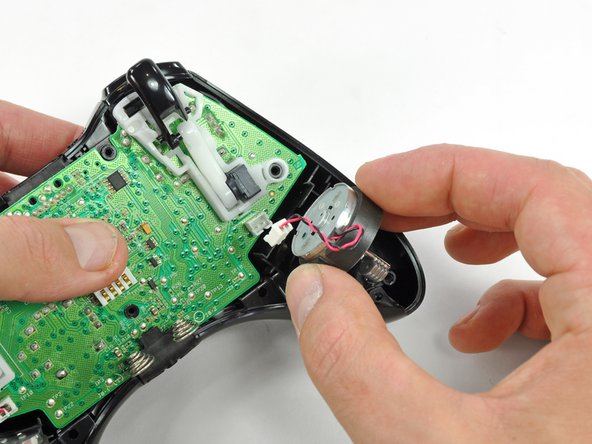

    • Use the flat end of a spudger to remove the vibration motor cable, moving it upward from its socket on the logic board.

    • Lift the vibration motor out of the front case.

  8. Xbox 360 Wireless Controller Bumper Panel Replacement: step 8, image 1 of 2 Xbox 360 Wireless Controller Bumper Panel Replacement: step 8, image 2 of 2

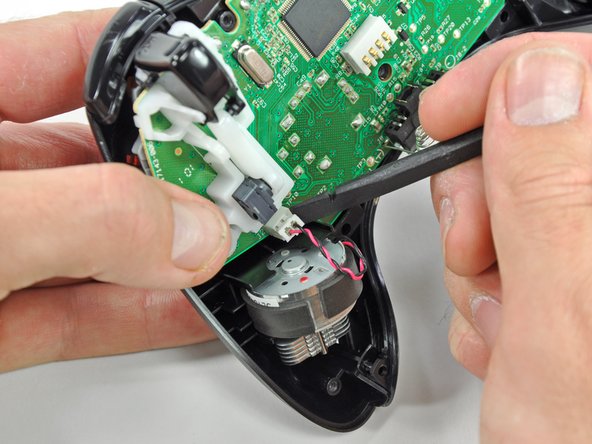

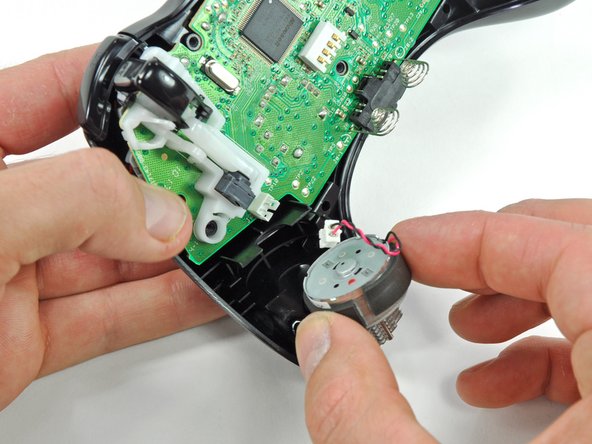

    • Remove the vibration motor from the other side of the controller using the same method previously described.

    • The right motor has significantly more counterweight than the left motor.

  9. Xbox 360 Wireless Controller Bumper Panel Replacement: step 9, image 1 of 2 Xbox 360 Wireless Controller Bumper Panel Replacement: step 9, image 2 of 2

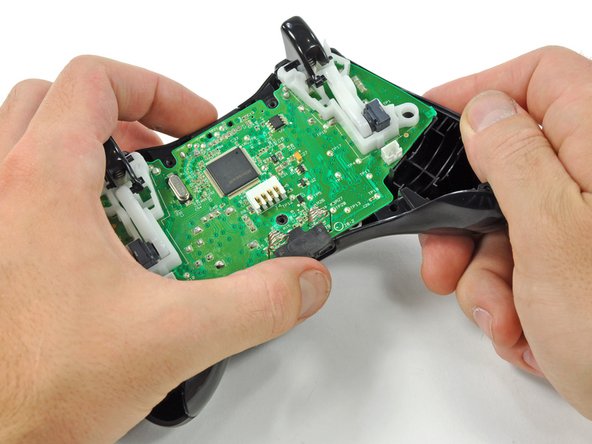

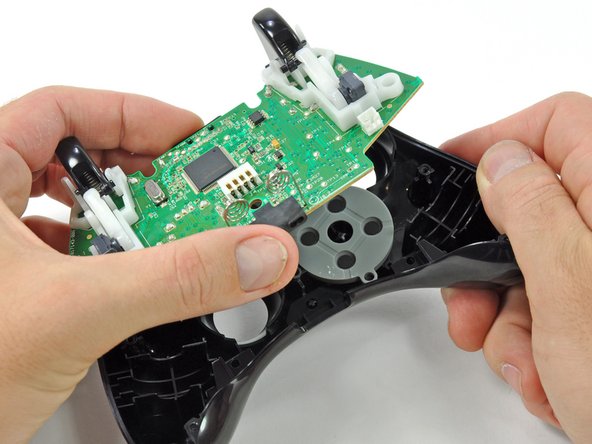

    • Lifting from the headphone jack and power plug, remove the logic board from the front case.

  10. Xbox 360 Wireless Controller Bumper Panel Replacement: step 10, image 1 of 2 Xbox 360 Wireless Controller Bumper Panel Replacement: step 10, image 2 of 2

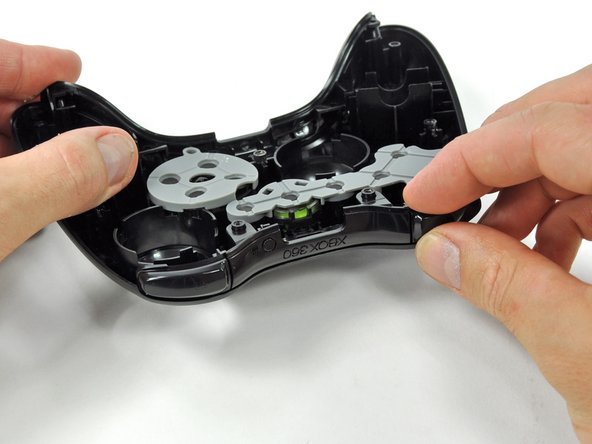

    • Orient the controller so that the front of the controller is facing toward you.

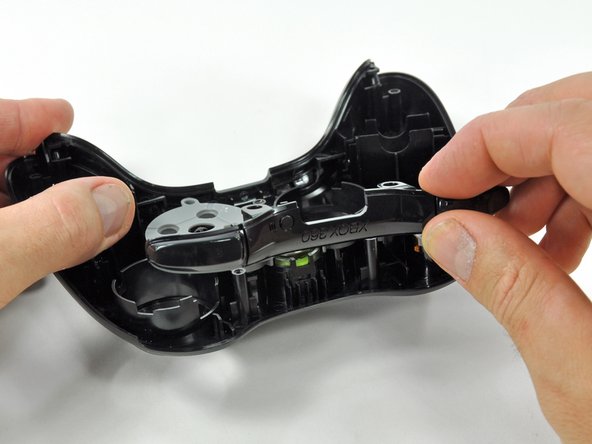

    • Lift the bumper panel off the front case.

Conclusion

To reassemble your device, follow these instructions in reverse order.
