Xbox 360 Wireless Controller Vibration Motors Replacement

Introduction

Put some feeling back in your gameplay by replacing the vibrator motors in your Xbox 360 wireless controller.

What you need

  1. Xbox 360 Wireless Controller Vibration Motors Replacement, Xbox 360 Wireless Controller Vibration Motors Replacement: step 1, image 1 of 2 Xbox 360 Wireless Controller Vibration Motors Replacement, Xbox 360 Wireless Controller Vibration Motors Replacement: step 1, image 2 of 2

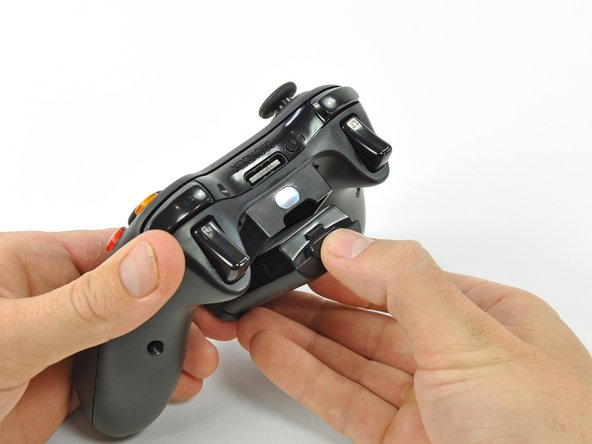

    • Depress the battery release button on the top of the controller.

    • Remove the battery holder from the controller.

    • The standard option for Xbox 360 Wireless Controllers Battery Packs is AA batteries. A rechargeable battery is also available, but both battery options are removed from the controller in the same way.

  2. Xbox 360 Wireless Controller Vibration Motors Replacement: step 2, image 1 of 1

    • Use a pair of tweezers to peel the barcode sticker from the battery compartment.

  3. Xbox 360 Wireless Controller Vibration Motors Replacement: step 3, image 1 of 1

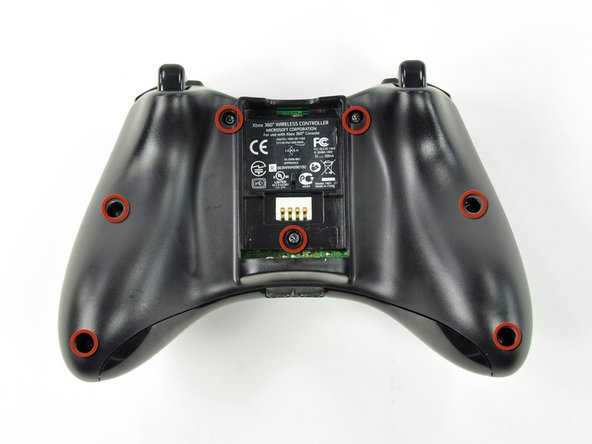

    • Remove the seven 9.3 mm T8 Security Torx screws securing the rear case to the front case.

  5. Xbox 360 Wireless Controller Vibration Motors Replacement: step 4, image 1 of 2 Xbox 360 Wireless Controller Vibration Motors Replacement: step 4, image 2 of 2

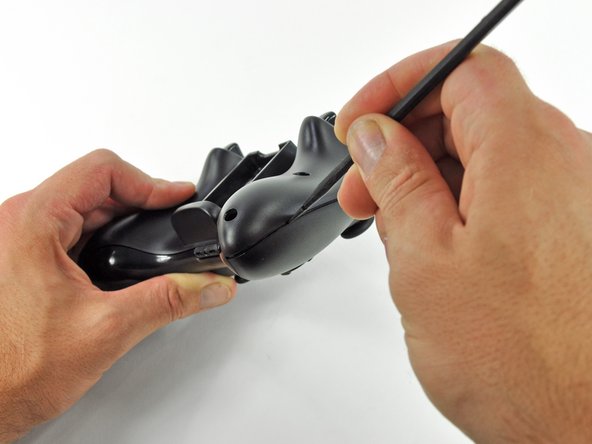

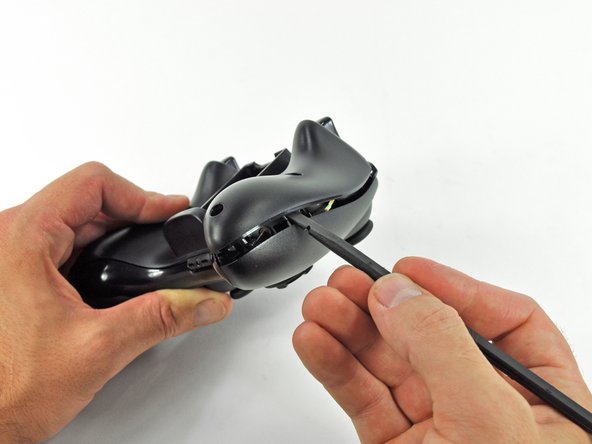

    • Insert a spudger between the front and rear cases along the left edge of the controller.

    • Rotate the spudger toward the front of the controller, prying the two cases apart.

  6. Xbox 360 Wireless Controller Vibration Motors Replacement: step 5, image 1 of 2 Xbox 360 Wireless Controller Vibration Motors Replacement: step 5, image 2 of 2

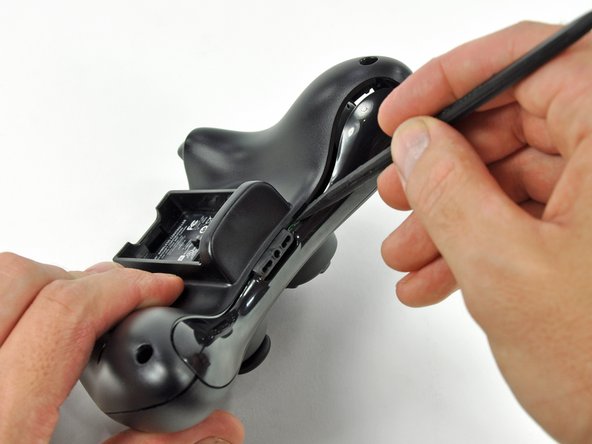

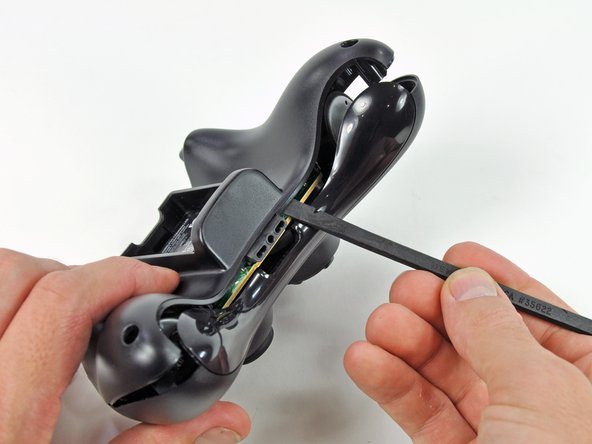

    • Insert a spudger between the front and rear cases, near the headphone jack.

    • Rotate the spudger toward the front of the controller to pry the two cases apart.

  7. Xbox 360 Wireless Controller Vibration Motors Replacement: step 6, image 1 of 2 Xbox 360 Wireless Controller Vibration Motors Replacement: step 6, image 2 of 2

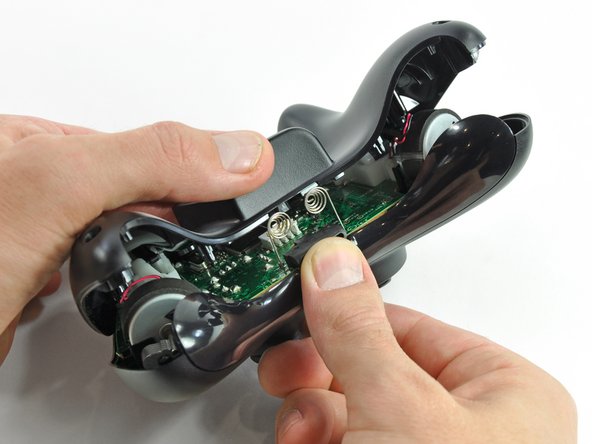

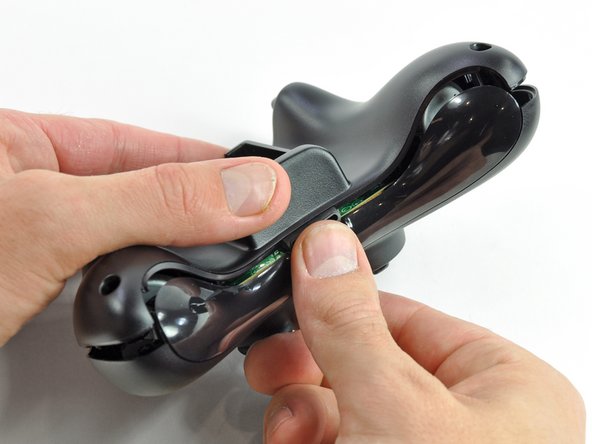

    • Grasp the controller by the battery compartment and the headphone jack.

    • Lift the battery compartment away from the headphone jack, separating the rear case from the front case and logic board.

    • The battery contact springs are held in place by slots in the battery housing in the rear case. Be sure to realign them properly during reassembly.

  8. Xbox 360 Wireless Controller Vibration Motors Replacement: step 7, image 1 of 2 Xbox 360 Wireless Controller Vibration Motors Replacement: step 7, image 2 of 2

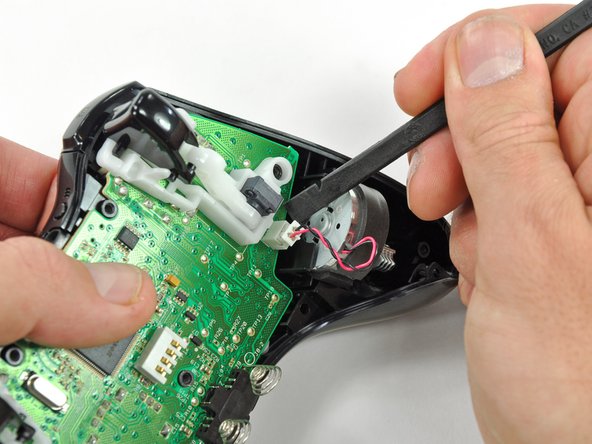

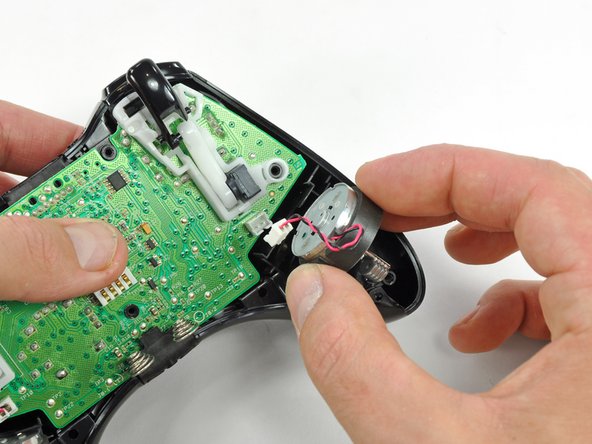

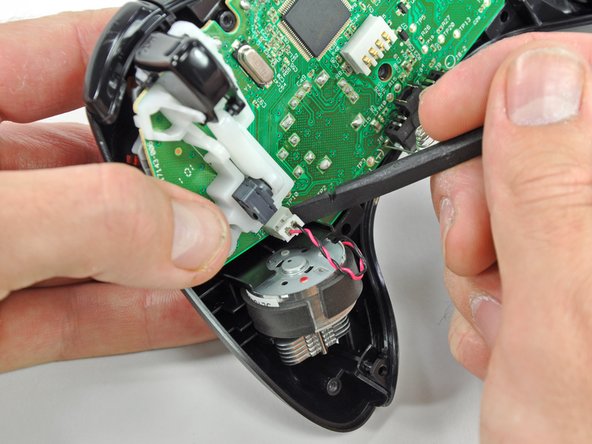

    • Use the flat end of a spudger to remove the vibration motor cable, moving it upward from its socket on the logic board.

    • Lift the vibration motor out of the front case.

  9. Xbox 360 Wireless Controller Vibration Motors Replacement: step 8, image 1 of 2 Xbox 360 Wireless Controller Vibration Motors Replacement: step 8, image 2 of 2

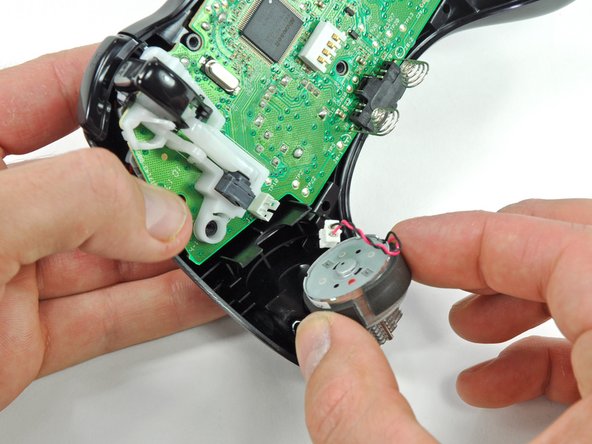

    • Remove the vibration motor from the other side of the controller using the same method previously described.

    • The right motor has significantly more counterweight than the left motor.

Conclusion

To reassemble your device, follow these instructions in reverse order.
