iBook G3 12" Airport Replacement

Step 1 iBook G3 12" Airport Replacement

• Use a coin to rotate the battery locking screw 90 degrees clockwise.
• Lift the battery out of the computer.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 2

• Pull the keyboard release tabs toward you and lift up on the keyboard until it pops free.
• If the keyboard does not come free, use a small flathead screwdriver to turn the keyboard locking screw 180 degrees in either direction and try again.
• Flip the keyboard over, away from the screen, and rest it face-down on the trackpad area.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 3

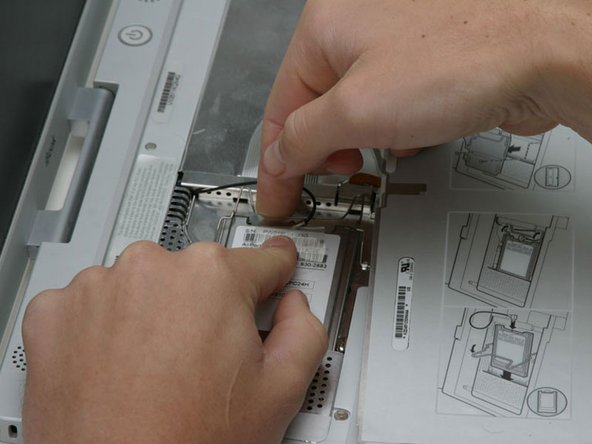

• Push the wire clasp toward the Airport card and pull it up to free it from the RAM shield.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 4

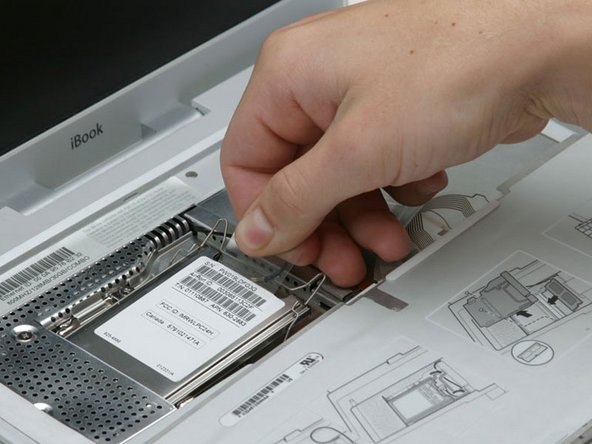

• Grasp the clear plastic tab on the Airport card and pull toward the right.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 5

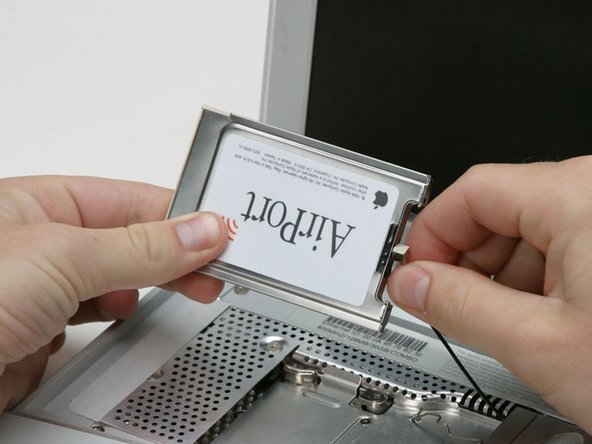

• Hold the Airport card in one hand and use your other hand to remove the antenna cable.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
