iMac G4 15" 700 MHz EMC 1873 RAM DIMM Replacement

Introduction

Upgrade your RAM DIMM Module for more memory.

What you need

  1. iMac G4 15" 700 MHz EMC 1873 RAM DIMM Replacement, iMac G4 15" 700 MHz EMC 1873 RAM DIMM Replacement: step 1, image 1 of 2 iMac G4 15" 700 MHz EMC 1873 RAM DIMM Replacement, iMac G4 15" 700 MHz EMC 1873 RAM DIMM Replacement: step 1, image 2 of 2

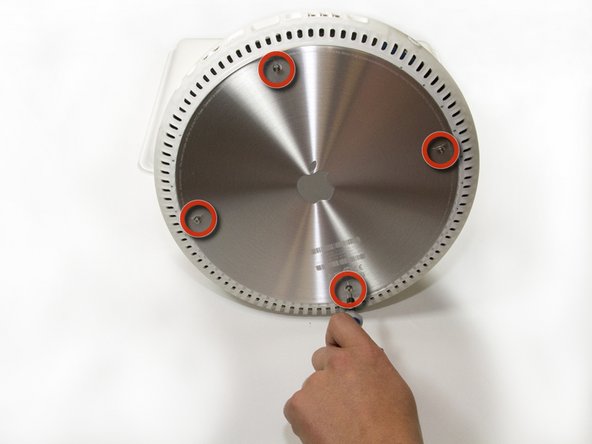

    • Place the computer monitor face down on a safe, harmless surface.

    • Using a Phillips #00 screw driver, remove the four 6.86 mm screws from the metal plate.

  3. iMac G4 15" 700 MHz EMC 1873 RAM DIMM Replacement: step 2, image 1 of 1

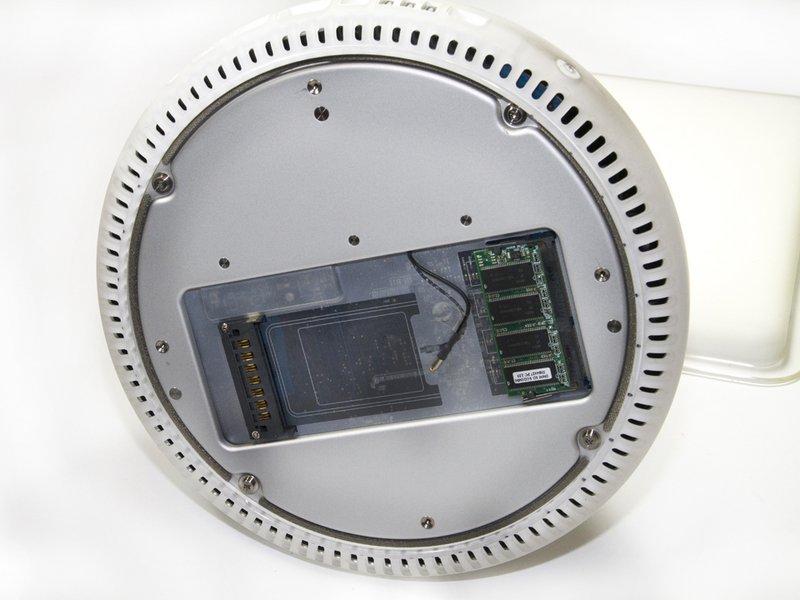

    • Remove the metal plate from bottom of the iMac G4.

    • The four screws do not completely separate from the metal plate.

  4. iMac G4 15" 700 MHz EMC 1873 RAM DIMM Replacement: step 3, image 1 of 2 iMac G4 15" 700 MHz EMC 1873 RAM DIMM Replacement: step 3, image 2 of 2

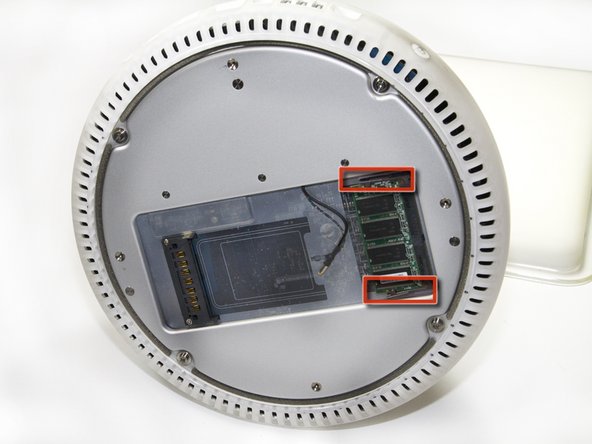

    • Release the tabs on each side of the module by simultaneously pushing each tab away from the RAM.

    • These tabs lock the module in place and releasing them will cause the module to "pop" up.

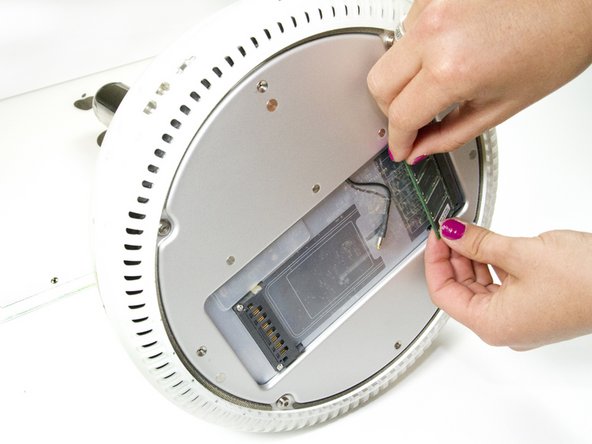

    • Remove the RAM module from the iMac.

Conclusion

To reassemble your device, follow these instructions in reverse order.
