iMac G4 17 800 MHz EMC 1936 Bottom Plate Housing Replacement

Introduction

Remove bottom housing to reveal the inside of the iMac.

What you need

  1. iMac G4 17 800 MHz EMC 1936 Bottom Plate Housing Replacement, iMac G4 17 800 MHz EMC 1936 Bottom Plate Housing Replacement: step 1, image 1 of 1

    • Unplug all the cables from the computer, including the power cable. Lay the computer face-down, supporting the neck and base with a soft cloth under the screen.

  2. iMac G4 17 800 MHz EMC 1936 Bottom Plate Housing Replacement: step 2, image 1 of 1

    • Loosen the four Phillips #0 screws.

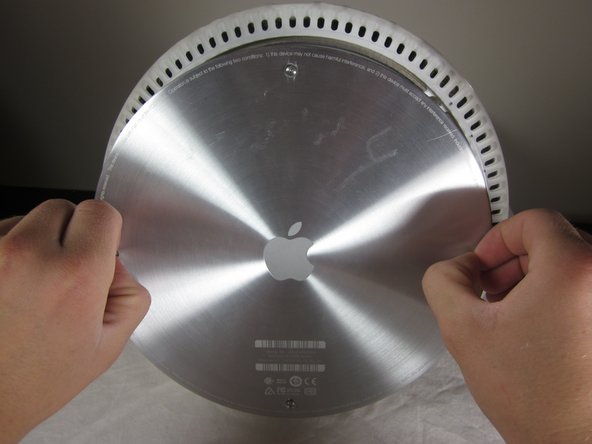

  4. iMac G4 17 800 MHz EMC 1936 Bottom Plate Housing Replacement: step 3, image 1 of 1

    • Carefully remove the base access panel.

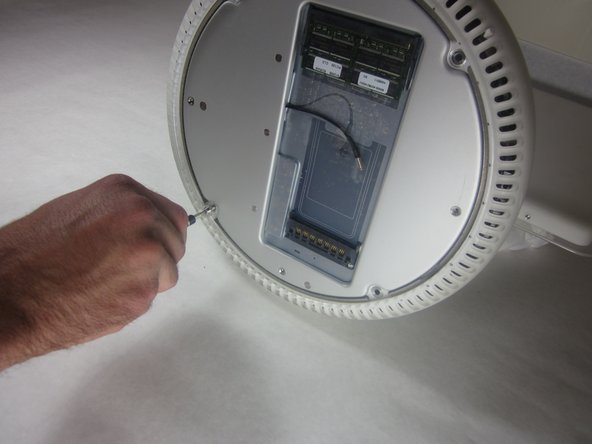

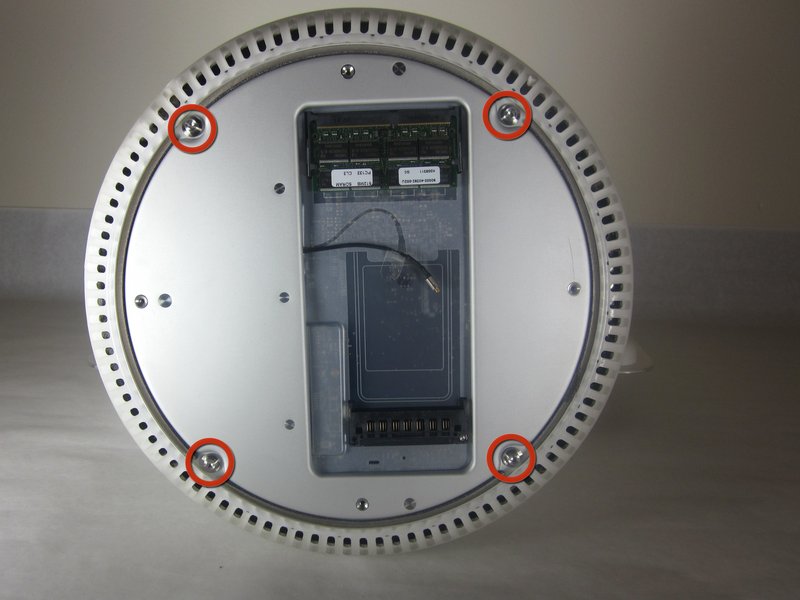

  5. iMac G4 17 800 MHz EMC 1936 Bottom Plate Housing Replacement: step 4, image 1 of 2 iMac G4 17 800 MHz EMC 1936 Bottom Plate Housing Replacement: step 4, image 2 of 2

    • Remove the four 25mm T-15 screws.

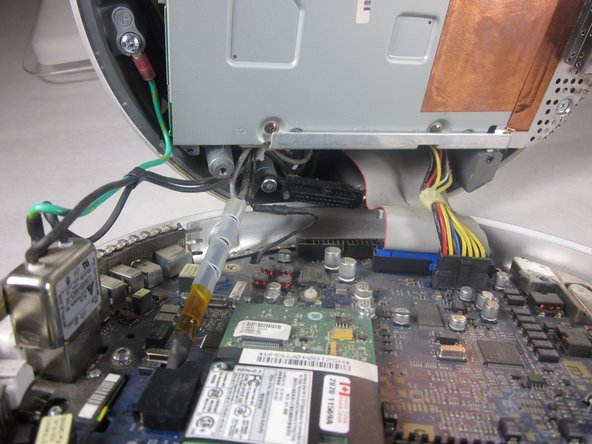

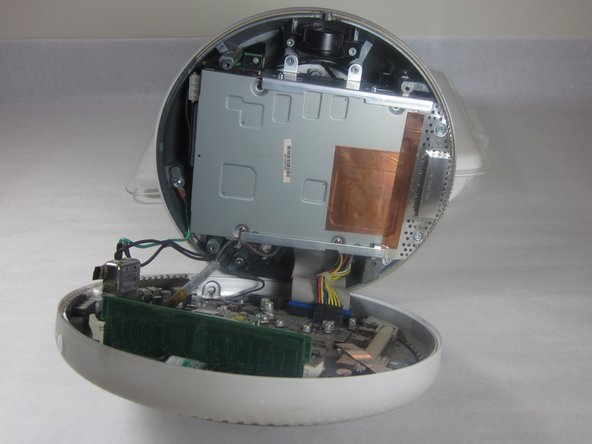

  6. iMac G4 17 800 MHz EMC 1936 Bottom Plate Housing Replacement: step 5, image 1 of 2 iMac G4 17 800 MHz EMC 1936 Bottom Plate Housing Replacement: step 5, image 2 of 2

    • Open the housing plate.

    • Be gentle with the wires still connected to the logic board so as not to ruin the cables.

    • A fixed plug connector between the logic board and upper unit will cause some resistance. Pull gently but firmly.

Conclusion

To reassemble your device, follow these instructions in reverse order.
