iMac G4 17 800 MHz EMC 1936 Hard Drive Replacement

What you need

  1. iMac G4 17 800 MHz EMC 1936 Hard Drive Replacement, iMac G4 17 800 MHz EMC 1936 Hard Drive Replacement: step 1, image 1 of 1

    • Unplug all the cables from the computer, including the power cable. Lay the computer face-down, supporting the neck and base with a soft cloth under the screen.

  2. iMac G4 17 800 MHz EMC 1936 Hard Drive Replacement: step 2, image 1 of 1

    • Loosen the four Phillips #0 screws.

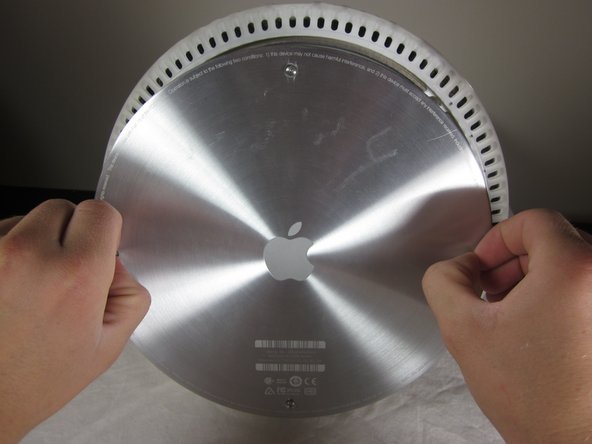

  3. iMac G4 17 800 MHz EMC 1936 Hard Drive Replacement: step 3, image 1 of 1

    • Carefully remove the base access panel.

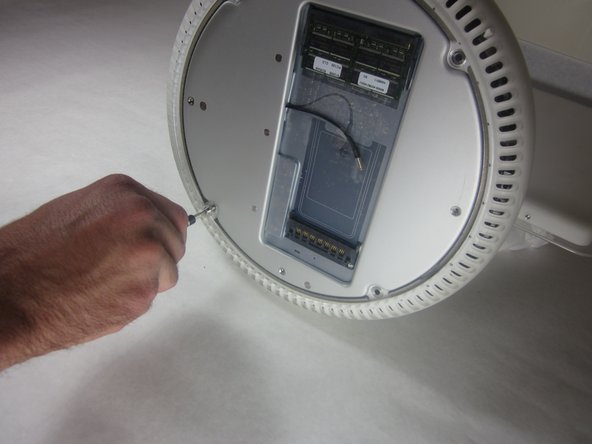

  4. iMac G4 17 800 MHz EMC 1936 Hard Drive Replacement: step 4, image 1 of 2 iMac G4 17 800 MHz EMC 1936 Hard Drive Replacement: step 4, image 2 of 2

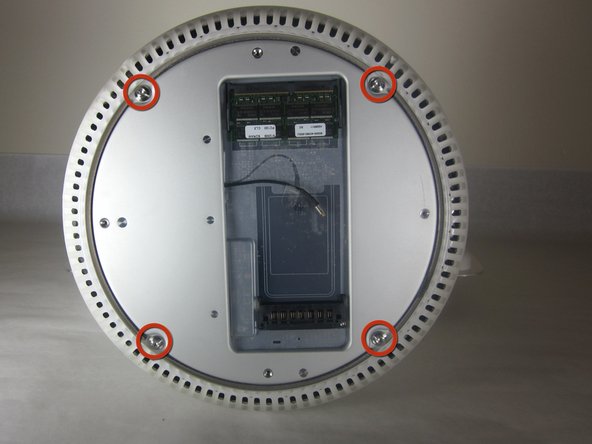

    • Remove the four 25mm T-15 screws.

  6. iMac G4 17 800 MHz EMC 1936 Hard Drive Replacement: step 5, image 1 of 2 iMac G4 17 800 MHz EMC 1936 Hard Drive Replacement: step 5, image 2 of 2

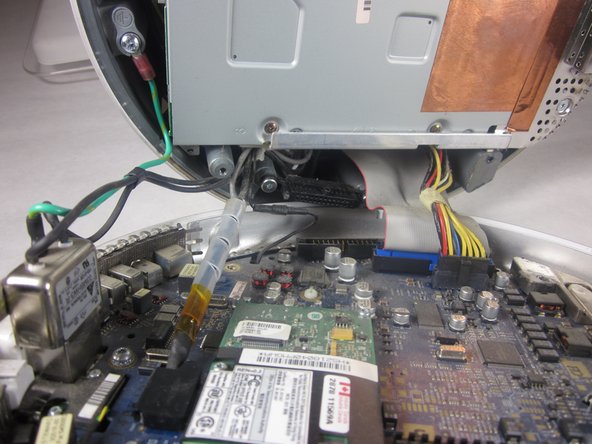

    • Open the housing plate.

    • Be gentle with the wires still connected to the logic board so as not to ruin the cables.

    • A fixed plug connector between the logic board and upper unit will cause some resistance. Pull gently but firmly.

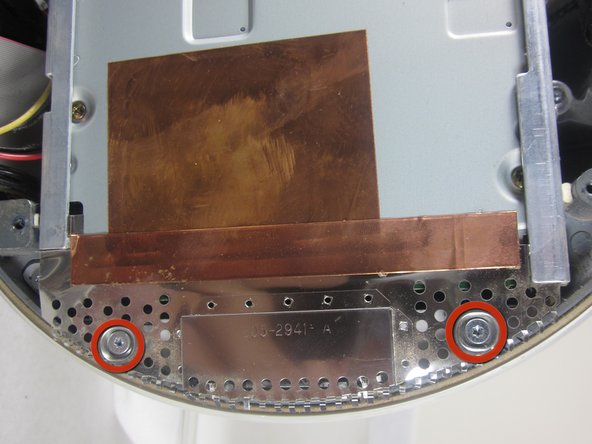

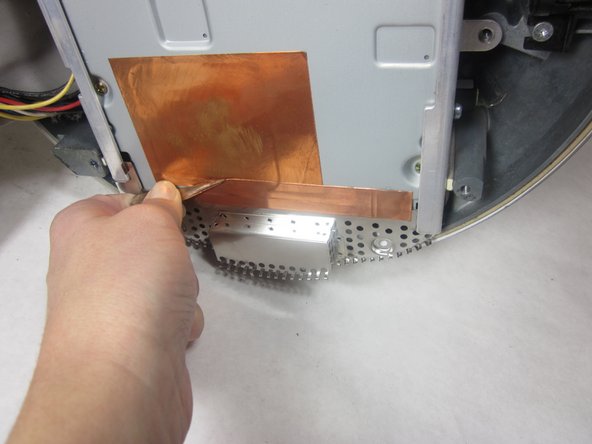

  7. iMac G4 17 800 MHz EMC 1936 Hard Drive Replacement: step 6, image 1 of 3 iMac G4 17 800 MHz EMC 1936 Hard Drive Replacement: step 6, image 2 of 3 iMac G4 17 800 MHz EMC 1936 Hard Drive Replacement: step 6, image 3 of 3

    • Remove the 2 torx 10mm screws on the EMI shield

    • Carefully remove shield and copper tape

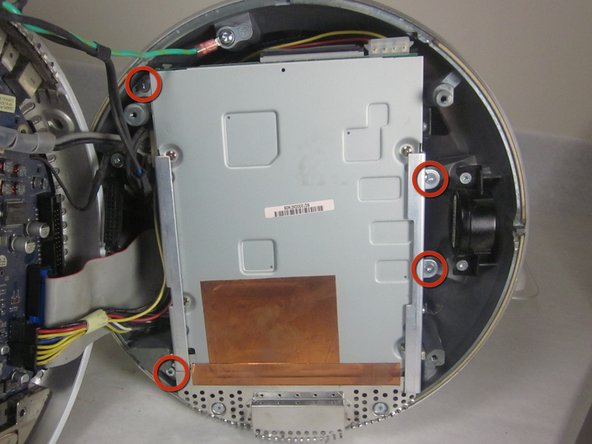

  8. iMac G4 17 800 MHz EMC 1936 Hard Drive Replacement: step 7, image 1 of 2 iMac G4 17 800 MHz EMC 1936 Hard Drive Replacement: step 7, image 2 of 2

    • Remove the 4 10mm torx screws attatched to the drive carrier.

    • The drive carrier includes optical drive and hard drive.

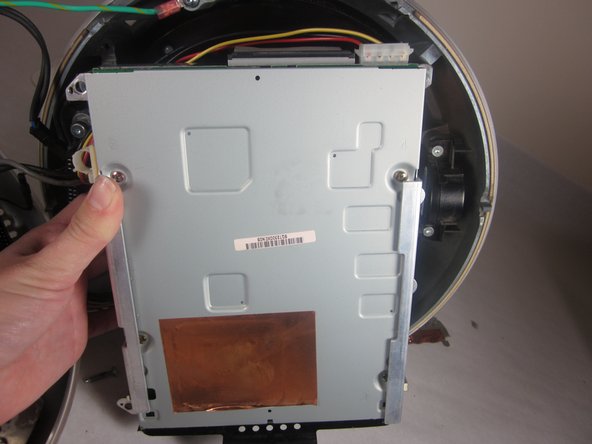

  9. iMac G4 17 800 MHz EMC 1936 Hard Drive Replacement: step 8, image 1 of 1

    • Grasp the carrier with both hands on each side.

    • Remove the carrier by lifting up and out.

    • Pull gently but firmly. The carrier is meant to fit snugly.

  10. iMac G4 17 800 MHz EMC 1936 Hard Drive Replacement: step 9, image 1 of 1

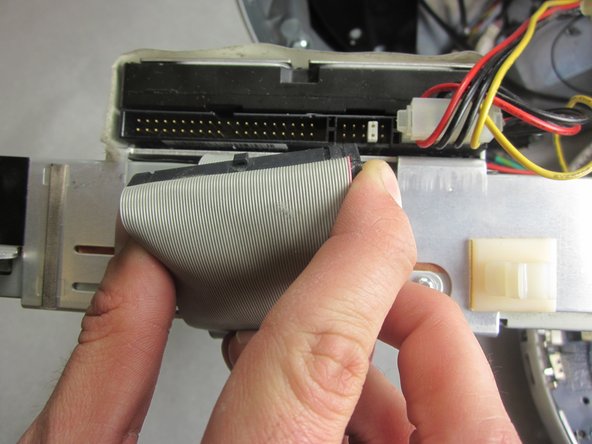

    • Flip the removed carrier to the right and pull out power cables.

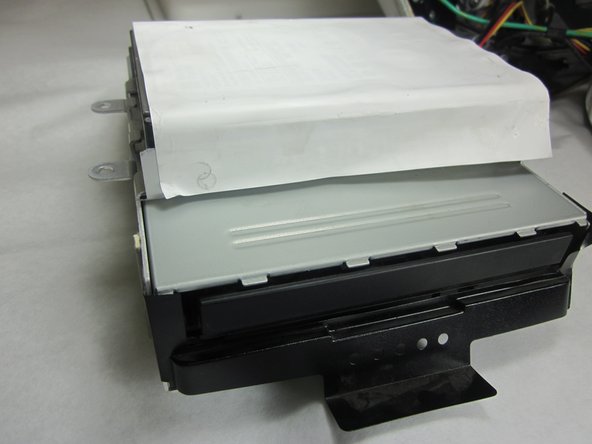

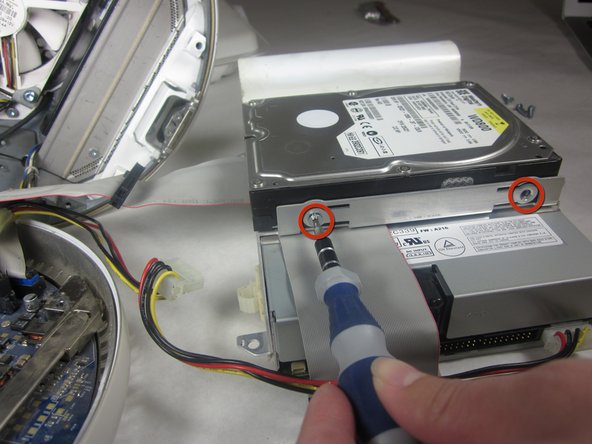

  11. iMac G4 17 800 MHz EMC 1936 Hard Drive Replacement: step 10, image 1 of 3 iMac G4 17 800 MHz EMC 1936 Hard Drive Replacement: step 10, image 2 of 3 iMac G4 17 800 MHz EMC 1936 Hard Drive Replacement: step 10, image 3 of 3

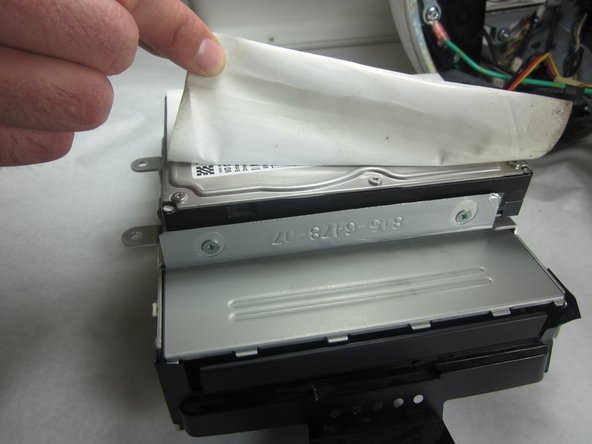

    • Peel back the white paper, revealing the screws that connect the hard drive to the carrier.

    • Remove the 4 T-10 5mm screws connecting the hard drive and frame. (There are 2 screws on each side)

  12. iMac G4 17 800 MHz EMC 1936 Hard Drive Replacement: step 11, image 1 of 1

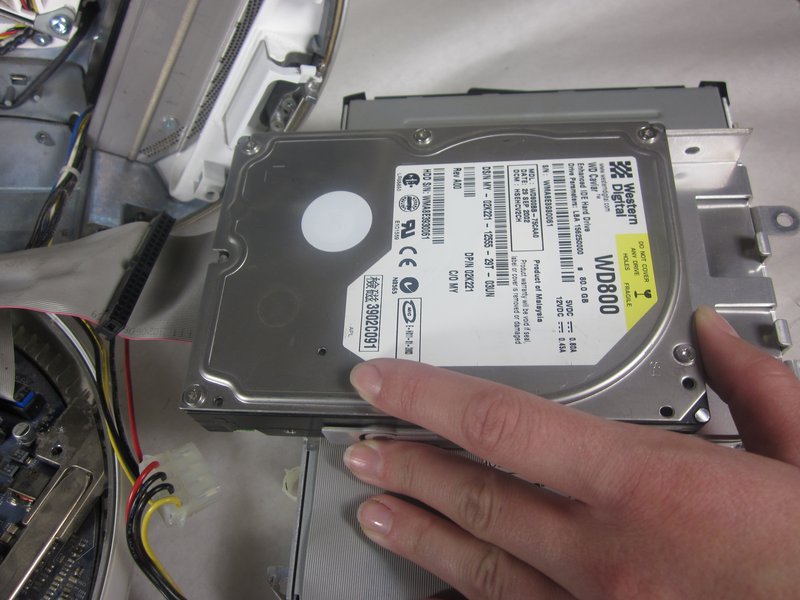

    • Slide the hard drive out from the frame and optical drive.

Conclusion

To reassemble your device, follow these instructions in reverse order.
