iMac G5 17" Model A1058 Bluetooth Board Replacement

Step 1 iMac G5 17" Model A1058 Bluetooth Board Replacement

• Lay the iMac display-side down on a flat surface.
• Loosen the three Phillips screws securing the rear panel to the iMac.
• These screws are captive in the iMac. The center screw will stop turning after about 3.5 turns and the outer screws will stop turning after about 5.5 turns. Do not try to remove these screws from your iMac.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 2

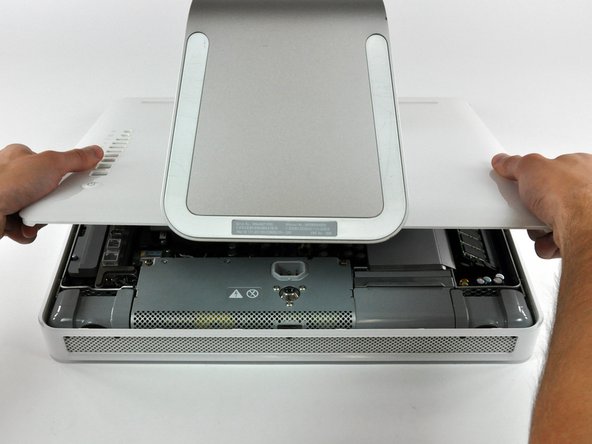

• Lift the rear panel slightly from the bottom edge of the iMac.
• Pull the rear panel toward yourself and remove it from the iMac.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 3

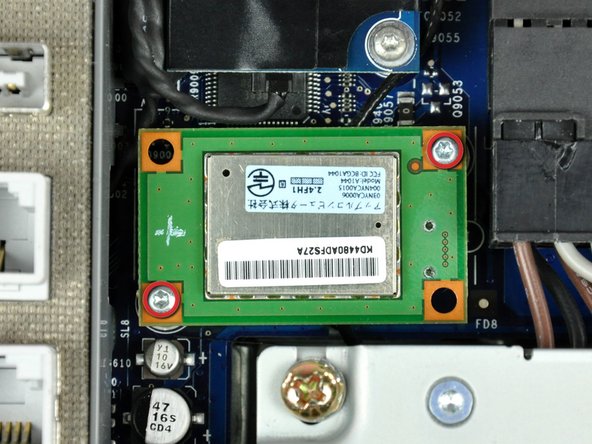

• Remove the two 5.5 mm T6 Torx screws securing the Bluetooth board to the logic board.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 4

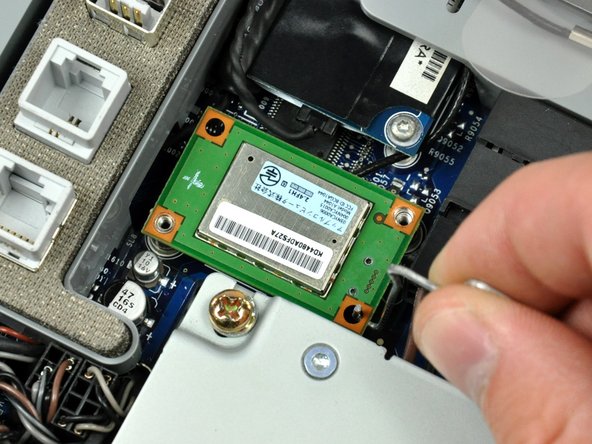

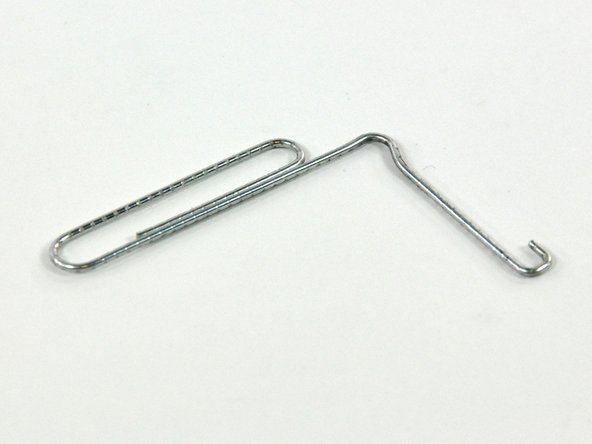

• Bend a paper clip into a hook and use it to pull the Bluetooth board up off its socket on the logic board.
• You may use a spudger to remove the Bluetooth board, but be sure to only apply upward force as any sideways force may cause the connector to shear off the Bluetooth board.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 5

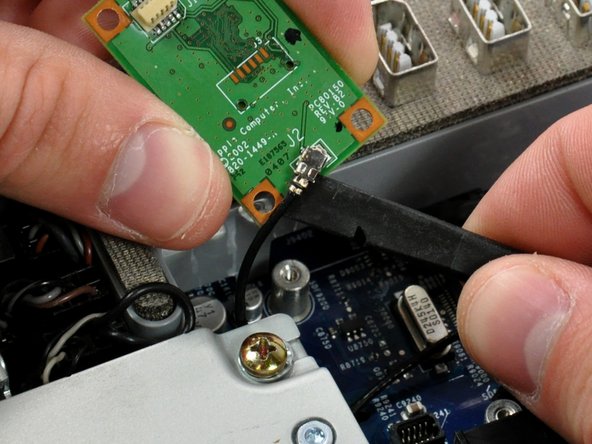

• Use a spudger to pry the Bluetooth antenna connector up off the Bluetooth board.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

Author

System

Member since: 09/24/09

2,562 Guides authored

Embed this guide

Choose a size and copy the code below to embed this guide as a small widget on your site / forum.

Preview
