Introduction
Go to step 1 ↓Remove the fan cover to replace your upper fans or hard drive.
What you need
-
-
-
Lay the iMac display-side down on a flat surface.
-
Loosen the three Phillips screws securing the rear panel to the iMac.
-
-
-

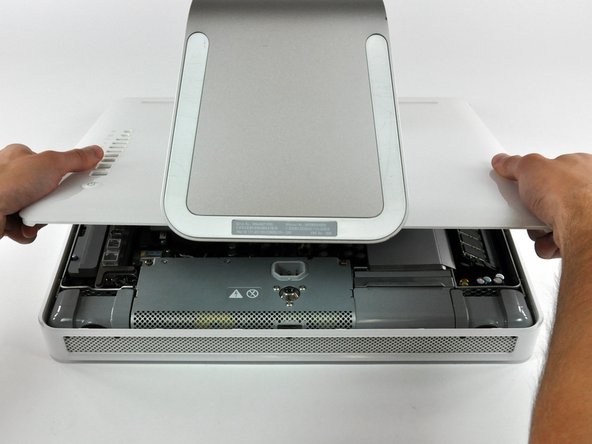

Lift the rear panel slightly from the bottom edge of the iMac.
-

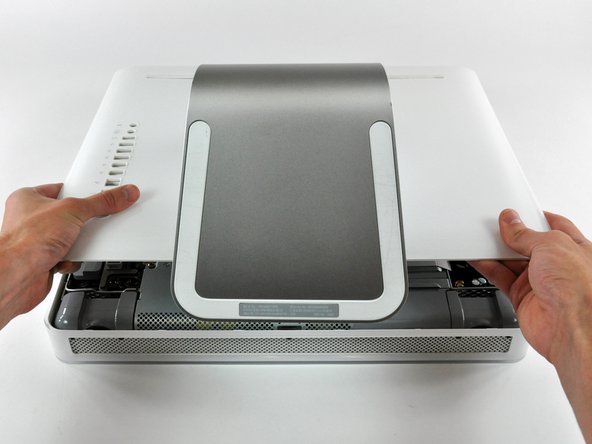

Pull the rear panel toward yourself and remove it from the iMac.
-
-
-

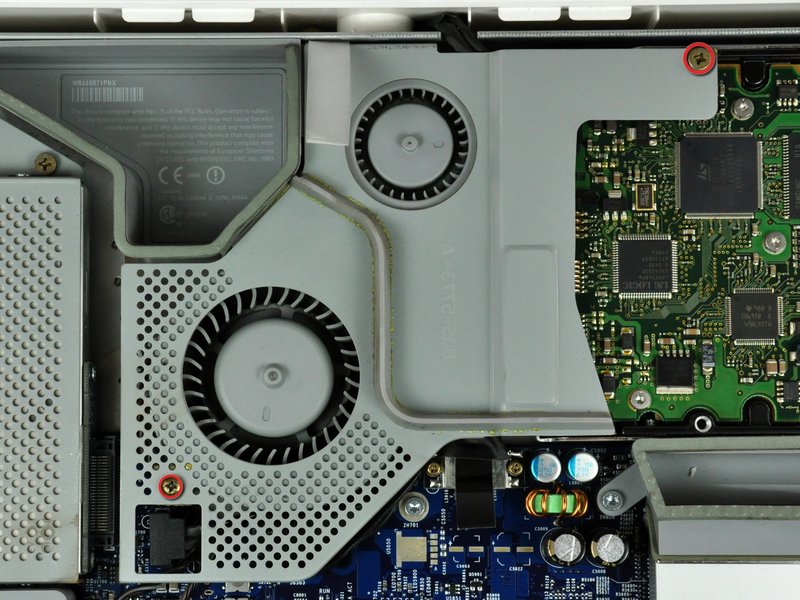

Remove the two Phillips screws securing the fan cover to the midplane.
-

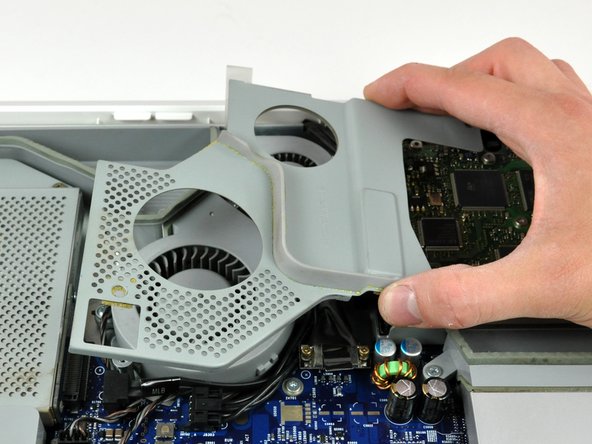

Lift the fan cover up off midplane.
-
-
To reassemble your device, follow these instructions in reverse order.
