iMac G5 20" Model A1076 Bluetooth board Replacement

Step 1 iMac G5 20" Model A1076 Bluetooth board Replacement

• Lay the iMac display-side down on a flat surface.
• Loosen the three Phillips screws securing the rear panel to the iMac.
• These screws are captive in the iMac. The center screw will stop turning after about 3.5 turns and the outer screws will stop turning after about 5.5 turns. Do not try to remove these screws from your iMac.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 2

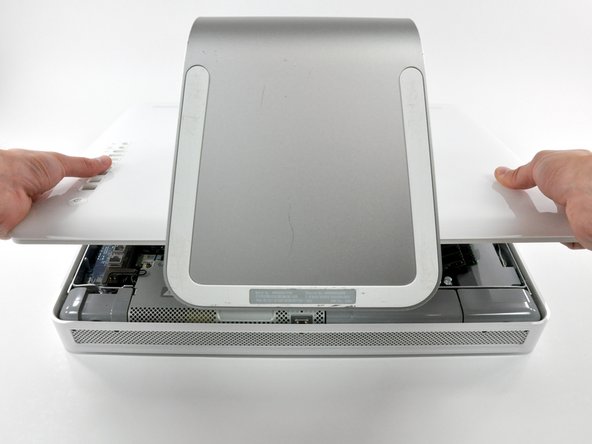

• Lift the rear panel slightly near the bottom of the iMac.
• Pull the rear panel toward yourself and remove it from the iMac.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 3

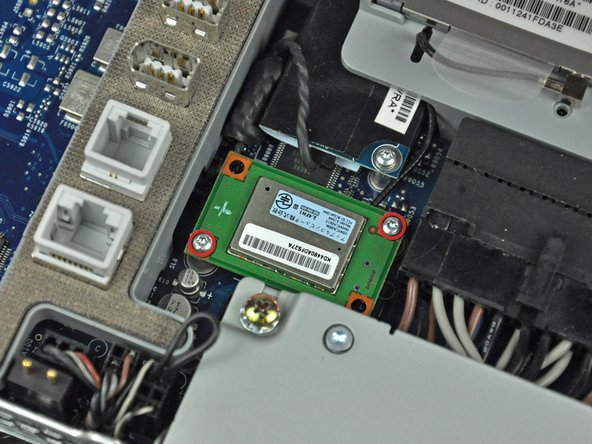

• Remove the two 5.5 mm T6 Torx screws securing the Bluetooth board to the logic board.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 4

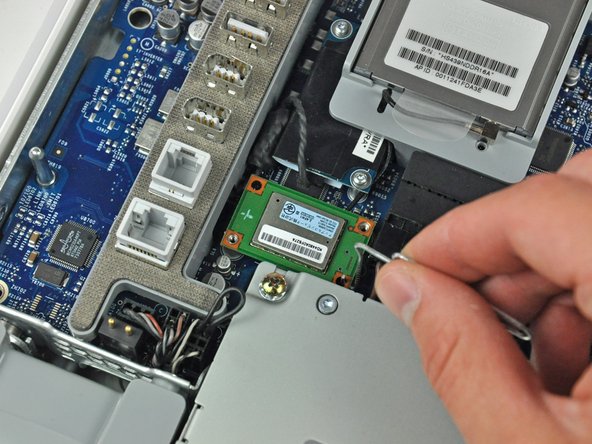

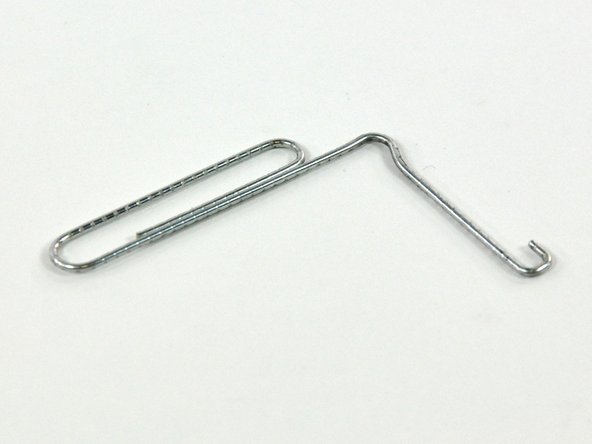

• Bend a paper clip into a hook and use it to pull the Bluetooth board up off its socket on the logic board.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 5

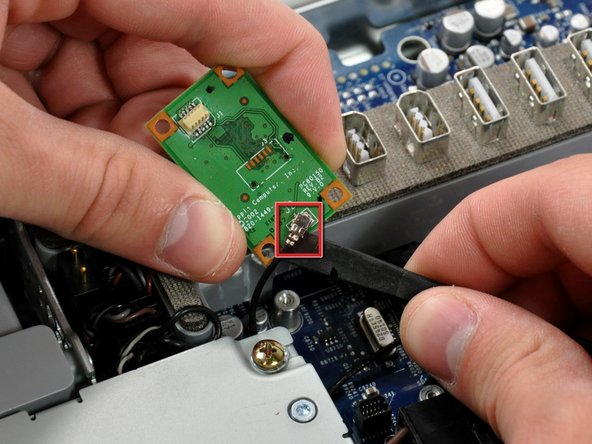

• Use a spudger to pry the Bluetooth antenna connector up off the Bluetooth board.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
