iMac G5 20" Model A1076 Fan Duct Replacement

Introduction

Go to step 1 ↓

The fan duct directs air across the heat sink on the logic board.

    1. iMac G5 20" Model A1076 Fan Duct Replacement, iMac G5 20" Model A1076 Fan Duct Replacement: step 1, image 1 of 1
      • Lay the iMac display-side down on a flat surface.

      • Loosen the three Phillips screws securing the rear panel to the iMac.

      • These screws are captive in the iMac. The center screw will stop turning after about 3.5 turns and the outer screws will stop turning after about 5.5 turns. Do not try to remove these screws from your iMac.

      Add Comment

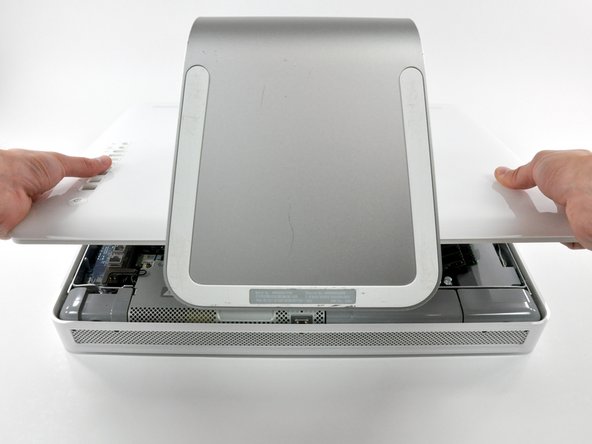

    2. iMac G5 20" Model A1076 Fan Duct Replacement: step 2, image 1 of 2 iMac G5 20" Model A1076 Fan Duct Replacement: step 2, image 2 of 2
      • Lift the rear panel slightly near the bottom of the iMac.

      • Pull the rear panel toward yourself and remove it from the iMac.

      Add Comment

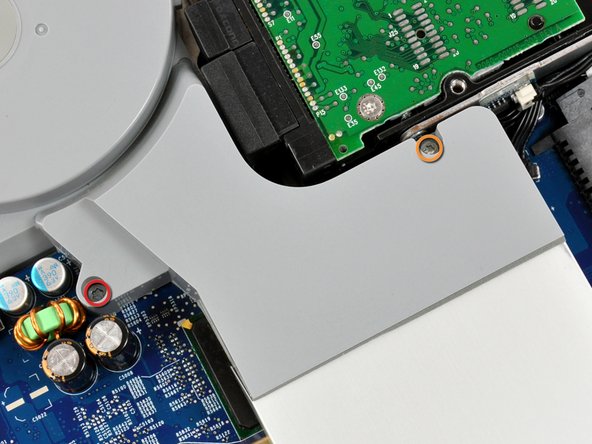

    3. iMac G5 20" Model A1076 Fan Duct Replacement: step 3, image 1 of 1
      • Remove the following two screws:

      • One 11 mm T10 Torx.

      • One 10.6 mm T8 Torx.

      Add Comment

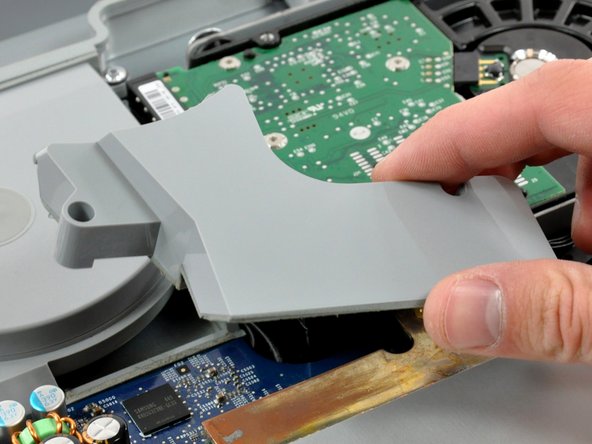

    4. iMac G5 20" Model A1076 Fan Duct Replacement: step 4, image 1 of 1
      • Lift the fan duct out of the chassis.

      Add Comment

Conclusion

To reassemble your device, follow these instructions in reverse order.
