iMac Intel 20" EMC 2133 and 2210 AirPort Extreme Replacement

Introduction

Regain wireless connectivity by replacing your dead AirPort Extreme card.

What you need

  1. iMac Intel 20" EMC 2133 and 2210 AirPort Extreme Replacement, iMac Intel 20" EMC 2133 and 2210 AirPort Extreme Replacement: step 1, image 1 of 1

    • Loosen the single Phillips screw in the center of the access door.

    • This screw is captive in the access door.

    • Remove the access door from your iMac.

  2. iMac Intel 20" EMC 2133 and 2210 AirPort Extreme Replacement: step 2, image 1 of 2 iMac Intel 20" EMC 2133 and 2210 AirPort Extreme Replacement: step 2, image 2 of 2

    • The glass panel is fixed onto the front bezel with fourteen magnets around its perimeter.

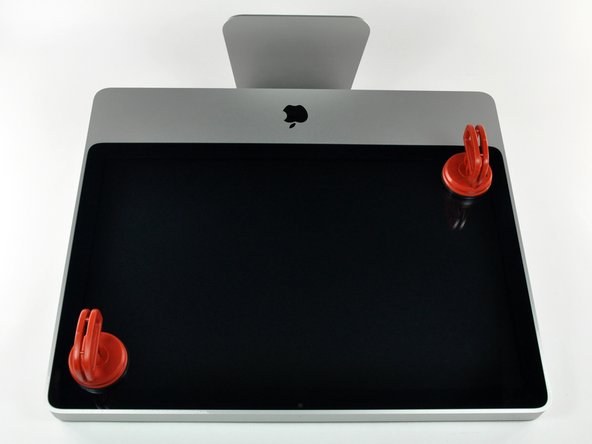

    • Stick two suction cups to opposing corners of the glass panel.

    • To attach the we sell, first position the suction cup with the movable handle parallel to the face of the glass panel. While lightly holding the suction cup against the glass, raise the movable handle until it is parallel with the other handle.

    • If your suction cups refuse to stick, try cleaning both the glass panel and the suction cup with a mild solvent such as Windex.

  3. iMac Intel 20" EMC 2133 and 2210 AirPort Extreme Replacement: step 3, image 1 of 1

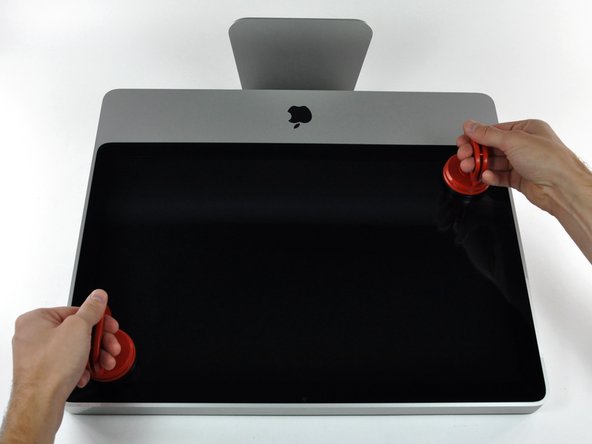

    • Gently pull the glass panel straight up off the iMac.

    • The glass panel has several positioning pins around its perimeter. To avoid shearing these pins off the glass panel, be sure to only pull straight up during removal.

    • Be meticulous about cleaning the LCD and the inside face of the glass panel before reinstallation, as any fingerprints or dust trapped inside will be annoyingly visible when the display is on. Placing the glass flat, inside face down, on a fresh aluminum-foil surface is a good way to keep it clean.

  5. iMac Intel 20" EMC 2133 and 2210 AirPort Extreme Replacement: step 4, image 1 of 1

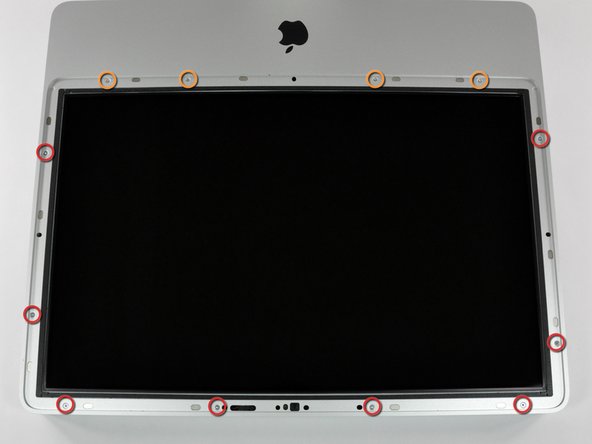

    • Remove the following 12 screws securing the front bezel to the rear case:

    • Eight 13 mm T8 Torx.

    • Four 25 mm T8 Torx.

  6. iMac Intel 20" EMC 2133 and 2210 AirPort Extreme Replacement: step 5, image 1 of 1

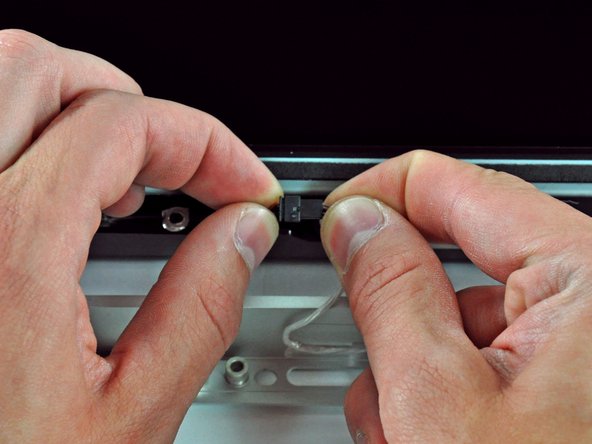

    • Disconnect the microphone cable connector, removing tape as necessary.

    • For the front bezel to sit properly, be sure to tuck the microphone cable and connector into the void next to the camera board.

  7. iMac Intel 20" EMC 2133 and 2210 AirPort Extreme Replacement: step 6, image 1 of 2 iMac Intel 20" EMC 2133 and 2210 AirPort Extreme Replacement: step 6, image 2 of 2

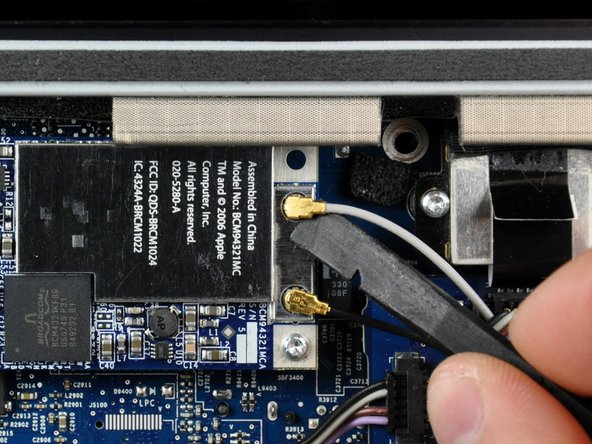

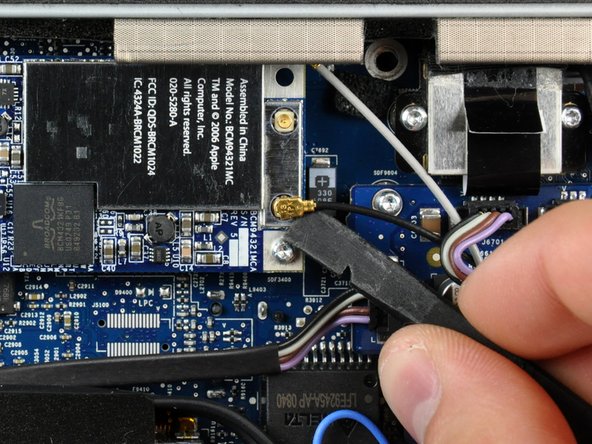

    • Use the flat end of a spudger to pry both antenna connectors up off the AirPort Extreme card.

  8. iMac Intel 20" EMC 2133 and 2210 AirPort Extreme Replacement: step 7, image 1 of 1

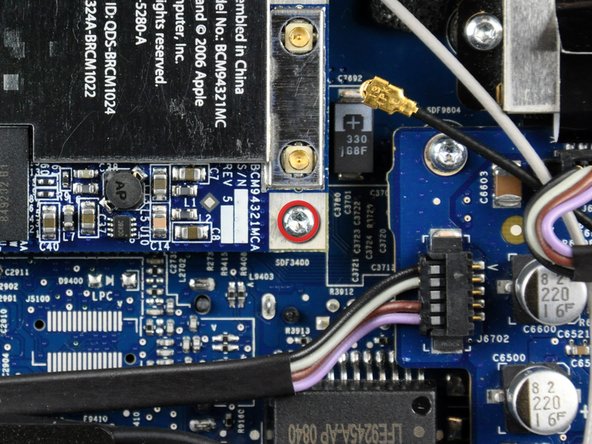

    • Remove the single 5.4 mm T6 Torx screw securing the AirPort Extreme card to the logic board.

    • The free end of the AirPort card should pop up slightly.

  9. iMac Intel 20" EMC 2133 and 2210 AirPort Extreme Replacement: step 8, image 1 of 1

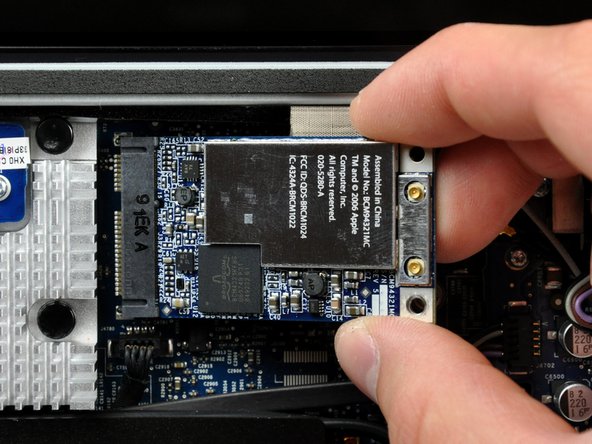

    • The free end of the AirPort Extreme card should lift slightly.

    • Pull the AirPort Extreme card straight away from its socket.

Conclusion

To reassemble your device, follow these instructions in reverse order.
