iMac Intel 20" EMC 2133 and 2210 Camera Board Replacement

Step 1 iMac Intel 20" EMC 2133 and 2210 Camera Board Replacement

• Loosen the single Phillips screw in the center of the access door.
• This screw is captive in the access door.
• Remove the access door from your iMac.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 2

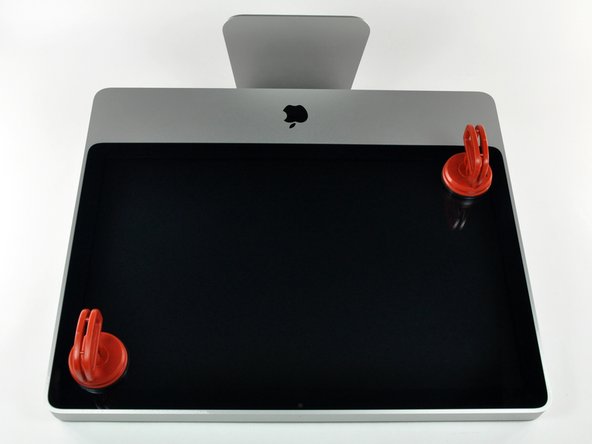

• The glass panel is fixed onto the front bezel with fourteen magnets around its perimeter.
• Stick two suction cups to opposing corners of the glass panel.
• To attach the we sell, first position the suction cup with the movable handle parallel to the face of the glass panel. While lightly holding the suction cup against the glass, raise the movable handle until it is parallel with the other handle.
• If your suction cups refuse to stick, try cleaning both the glass panel and the suction cup with a mild solvent such as Windex.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 3

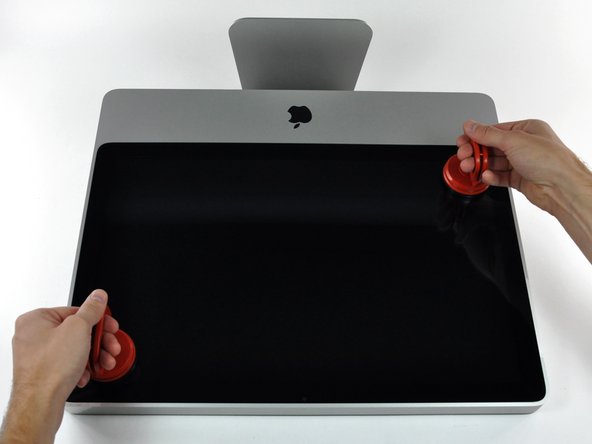

• Gently pull the glass panel straight up off the iMac.
• The glass panel has several positioning pins around its perimeter. To avoid shearing these pins off the glass panel, be sure to only pull straight up during removal.
• Be meticulous about cleaning the LCD and the inside face of the glass panel before reinstallation, as any fingerprints or dust trapped inside will be annoyingly visible when the display is on. Placing the glass flat, inside face down, on a fresh aluminum-foil surface is a good way to keep it clean.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 4

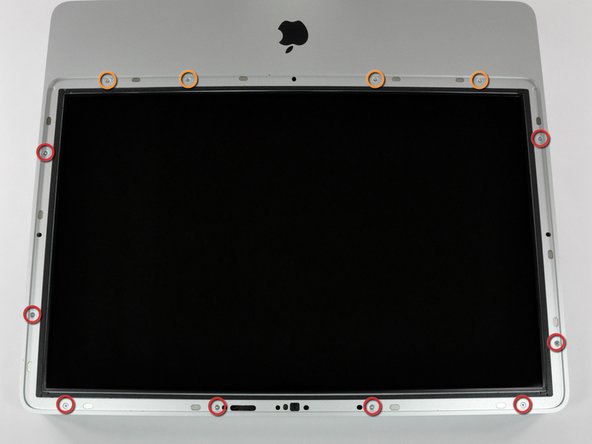

• Remove the following 12 screws securing the front bezel to the rear case:
• Eight 13 mm T8 Torx.
• Four 25 mm T8 Torx.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 5

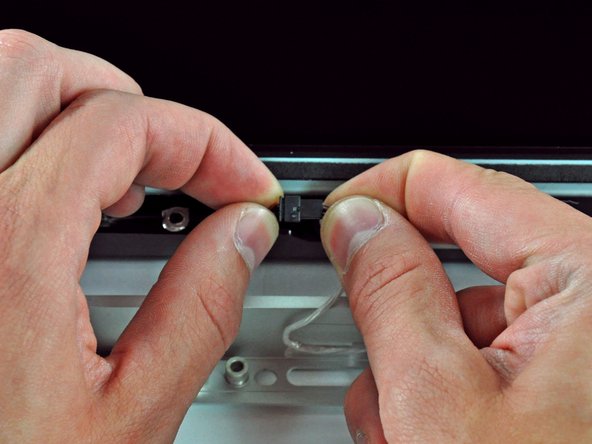

• Disconnect the microphone cable connector, removing tape as necessary.
• For the front bezel to sit properly, be sure to tuck the microphone cable and connector into the void next to the camera board.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 6

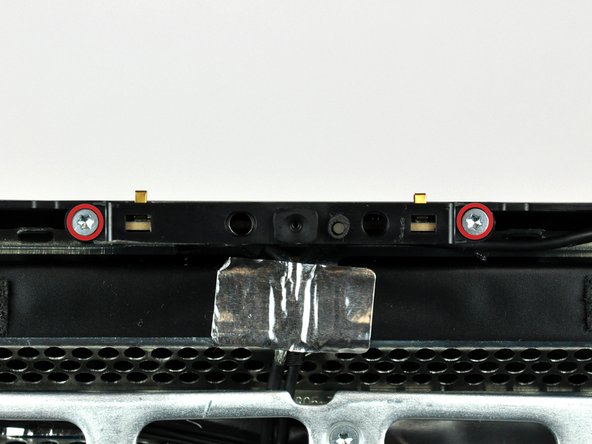

• Remove the two 9 mm T8 Torx screws securing the camera board to the rear case.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 7

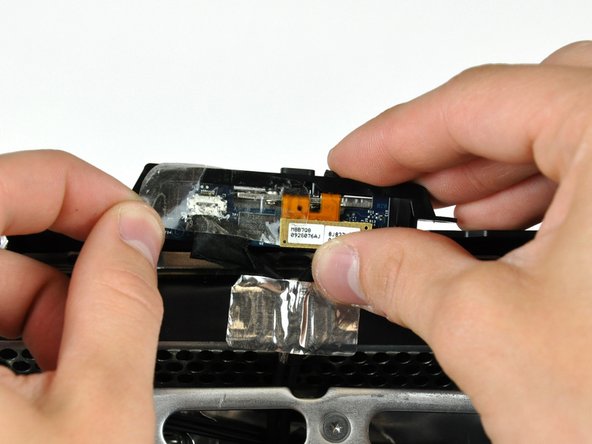

• Slightly lift the camera board out of the rear case.
• If necessary, remove the piece of tape covering the camera cable connector.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 8

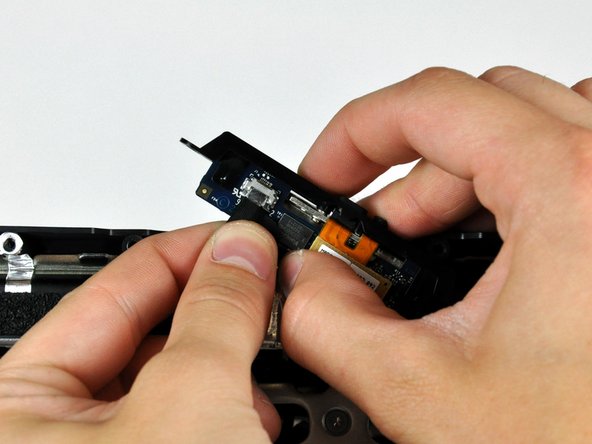

• Pull the camera cable connector straight away from its socket.
• During reassembly, be sure to insert the camera cable connector into its socket gently as they are both easily bent.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
