iPhone 1st Generation Front Bezel Replacement

Insert a SIM card eject tool or paper clip into the hole next to the headphone jack.

Press down on the paper clip until the SIM card tray pops out.

Grasp the SIM card tray and slide it out of the iPhone.

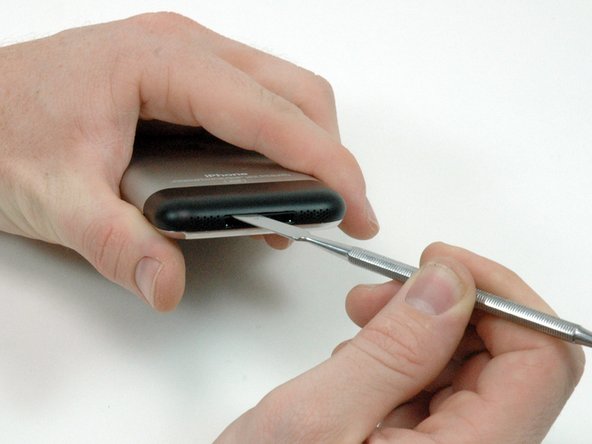

Insert a metal spudger into the slot between the dock connector and the antenna cover. Gently pry up near the two tabs to create a small gap between the antenna cover and the silver front bezel.

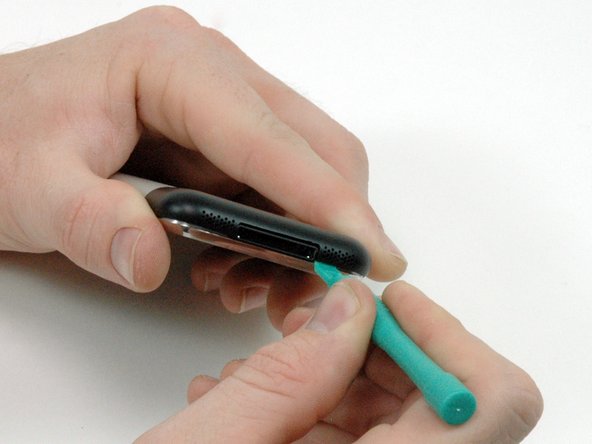

Insert an iPod opening tool in the gap between the antenna cover and the front bezel. The wedge of the tool should be pointing towards the antenna cover. Slide the tool around the corner and up until you reach the metal backing.

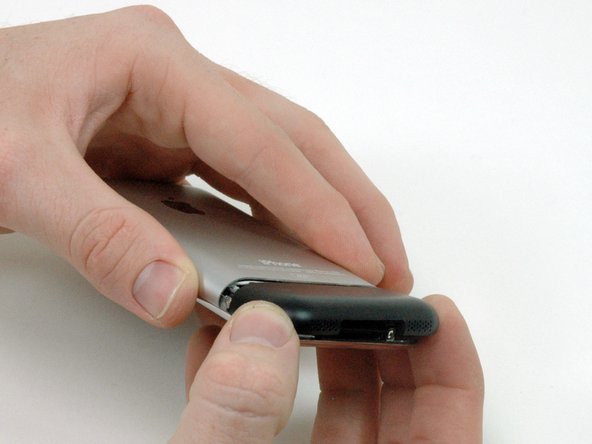

Repeat the same procedure on the other side of the dock connector.

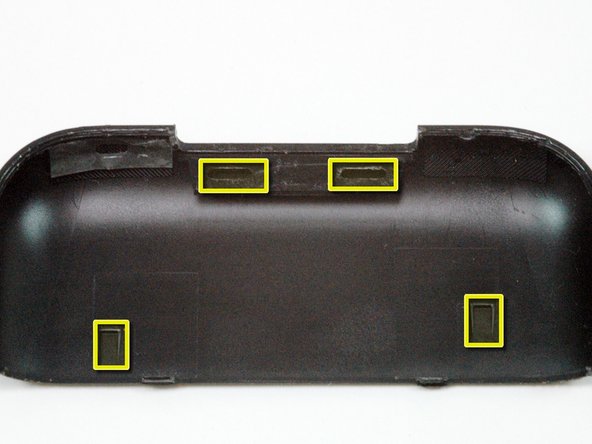

Grasp the antenna cover on either side and slide it up and away from the iPhone. This requires some force. If it does not come free, ensure that the antenna cover is lifted up enough to free the catches.

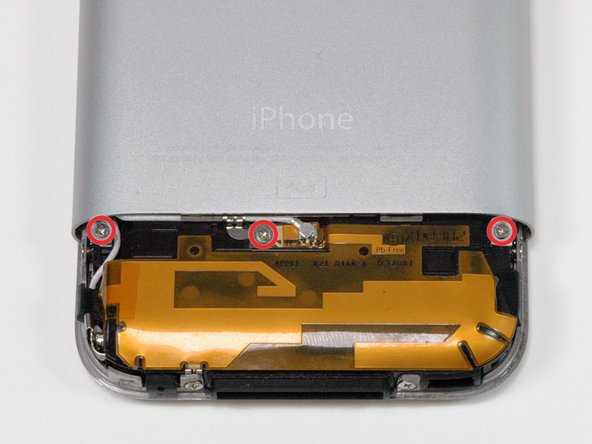

Remove the three Phillips #00 screws securing the rear panel to the iPhone.

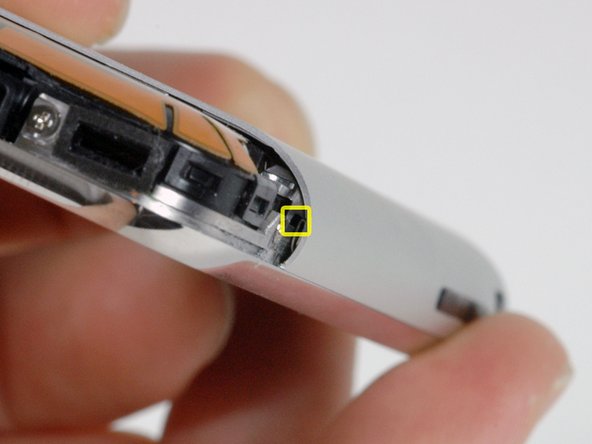

The small square hole is the location to insert the dental pick in the next step.

Start removing the rear panel on the side with the buttons.

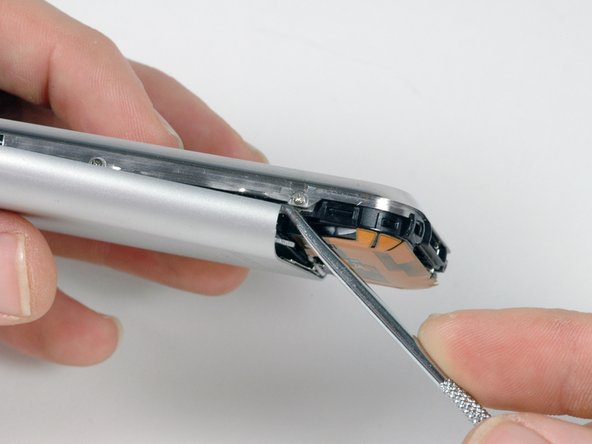

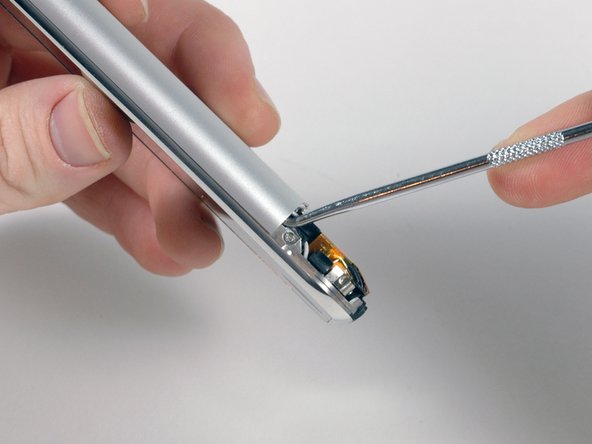

Slide the dental pick completely into the square hole. You may need to wiggle the tool and apply a good amount of force to get it to go all the way.

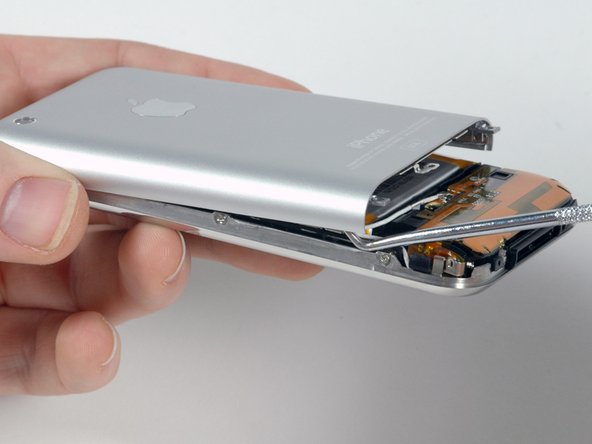

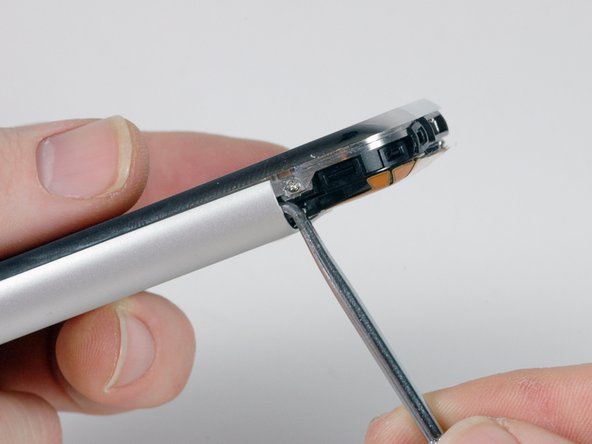

Pry up the rear panel by pulling the dental pick counterclockwise in a quick motion. Apply force perpendicular to the plane of the display assembly. You may be afraid to go fast, but going slowly is more likely to bend the case.

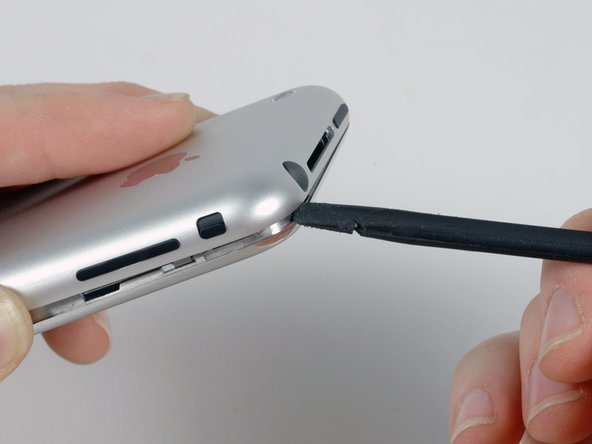

Use a spudger to free the rear panel from the iPhone along the corner and top.

Repeat the same procedure on the other side of the iPhone. Slide the dental pick completely into the square hole. You may need to wiggle the tool and apply a good amount of force to get it to go all the way.

Pry up the rear panel by pulling the dental pick clockwise in a quick motion. Apply force perpendicular to the plane of the display assembly. You may be afraid to go fast, but going slowly is more likely to bend the case.

The rear panel is still attached to the iPhone by the headphone jack cable, so don't entirely remove the rear panel from the iPhone just yet.

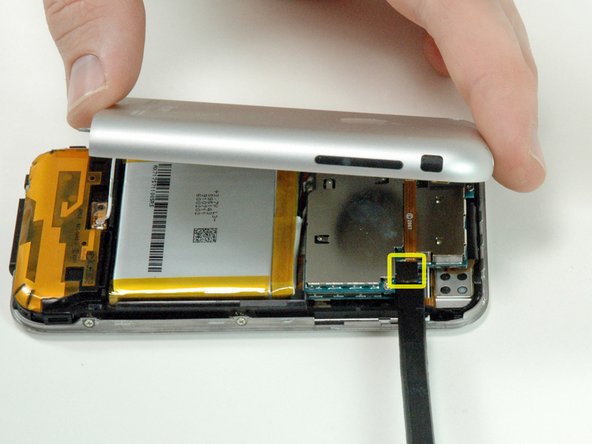

Use a spudger to disconnect the headphone jack cable from the logic board.

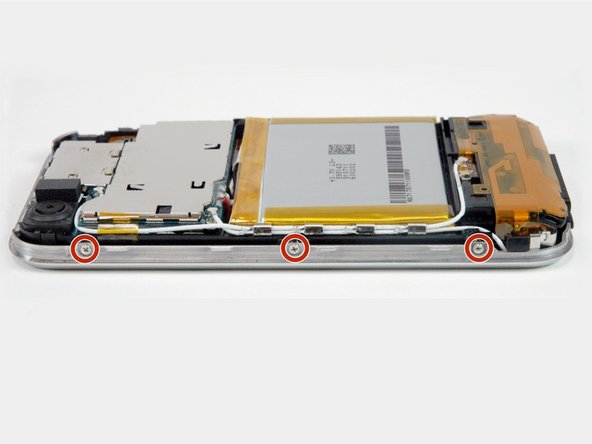

Remove the three Phillips #00 screws securing the front bezel to the iPhone.

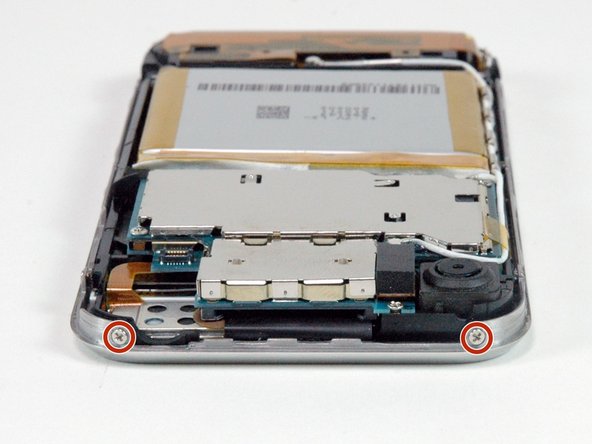

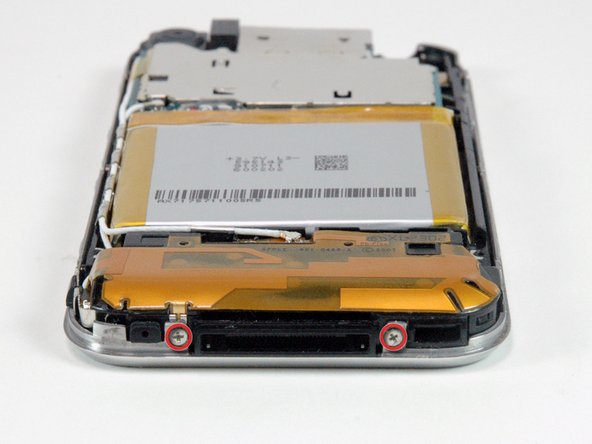

Rotate the iPhone 90 degrees and remove the two Phillips #00 screws from the bottom of the iPhone.

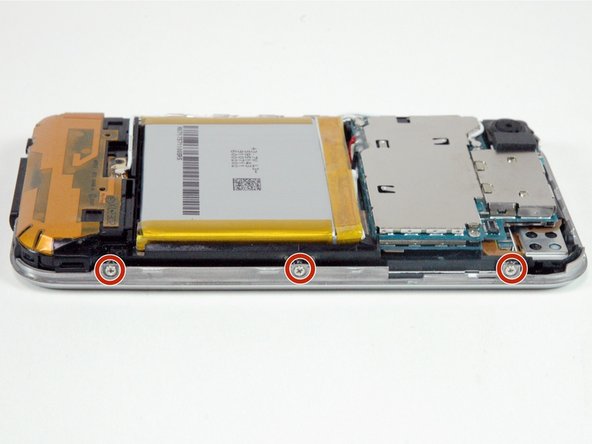

Rotate the iPhone 90 degrees and remove the three Phillips #00 screws from the side of the iPhone.

Rotate the iPhone 90 degrees and remove the two Phillips #00 screws from the top of the iPhone.

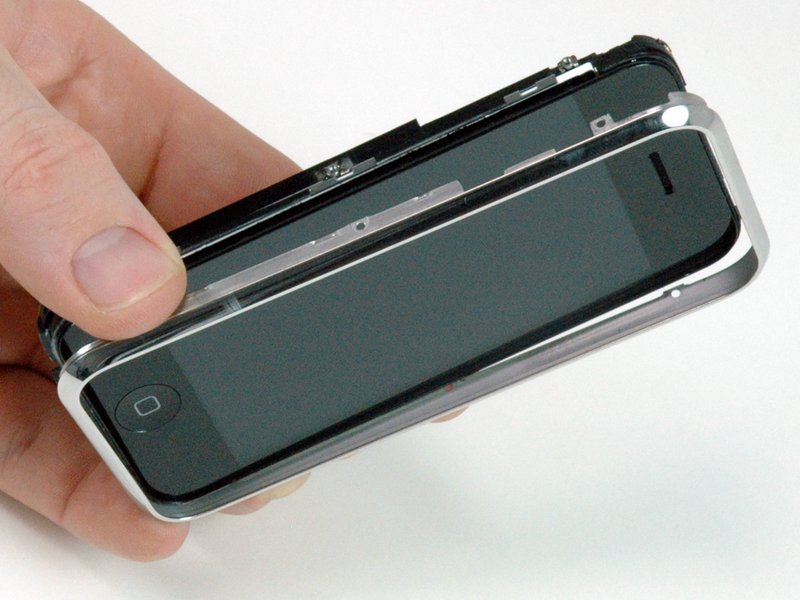

Lift the front bezel away from the iPhone.
