iPhone 4 Cellular Antenna Replacement

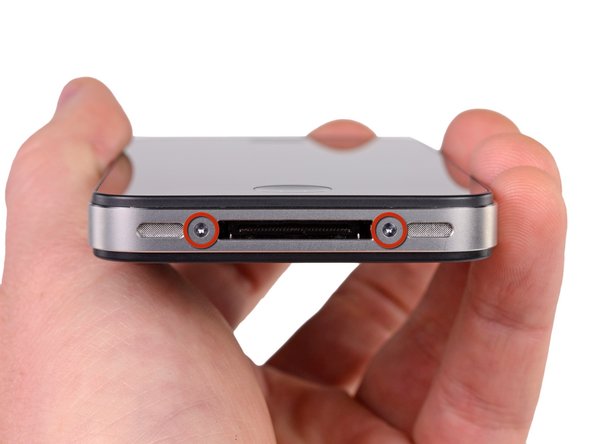

Step 1 iPhone 4 Cellular Antenna Replacement



• Before disassembling your iPhone, be sure it is powered off.
• Your iPhone 4 rear cover may have either two #000 Phillips screws or Apple's 5-Point "Pentalobe" screws (second image). Check which screws you have, and ensure you also have the correct screwdriver in order to remove them.
• Remove the two 3.6 mm Pentalobe or Phillips #000 screws next to the dock connector.
• During reassembly, we recommend you replace the 5-point screws with equivalent Phillips screws. Our provides the tools and screws needed to replace the Pentalobe screws with Phillips screws.
• The 5-Point Screwdriver should only be used once, as it has the potential to strip the screws.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

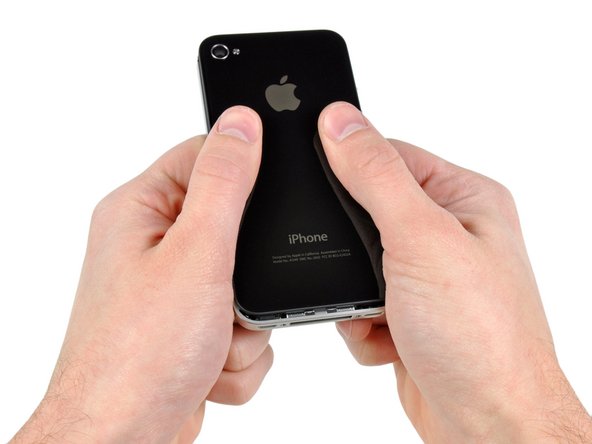

Step 2



• Push the rear panel toward the top edge of the iPhone.
• The panel will move about 2 mm.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

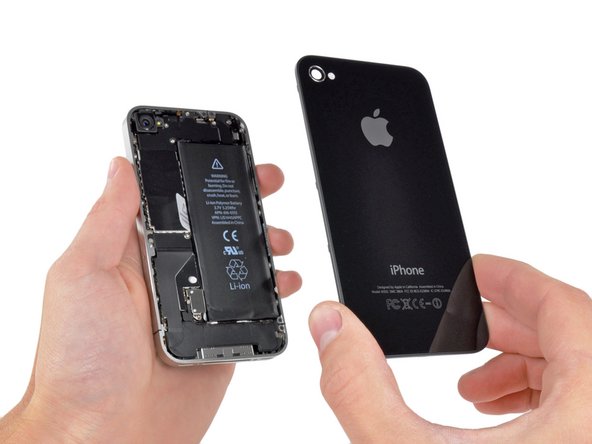

Step 3
• Pinch the rear panel with your fingers and lift it away from the iPhone. Alternatively, use a .
• Be careful not to damage the plastic clips attached to the rear panel.
• If you are installing a new rear panel, be sure to remove the plastic protective sticker from the inside of the camera lens and the sticker from the large black area near the lens.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

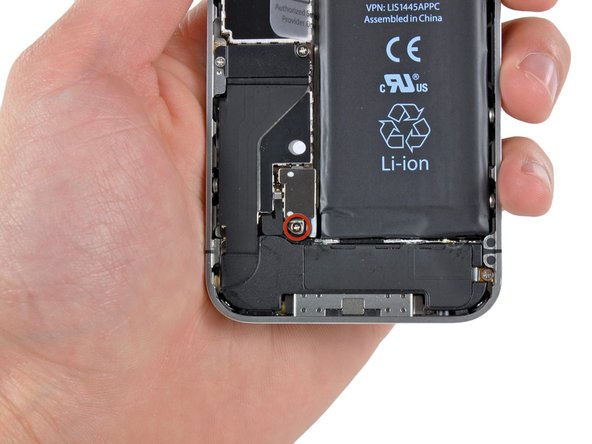

Step 4
• Remove the single 2.5 mm Phillips screw securing the battery connector to the logic board.
• Some devices may have two screws, one of which holds down the contact pad which is located above the screw indicated in red in the photo.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

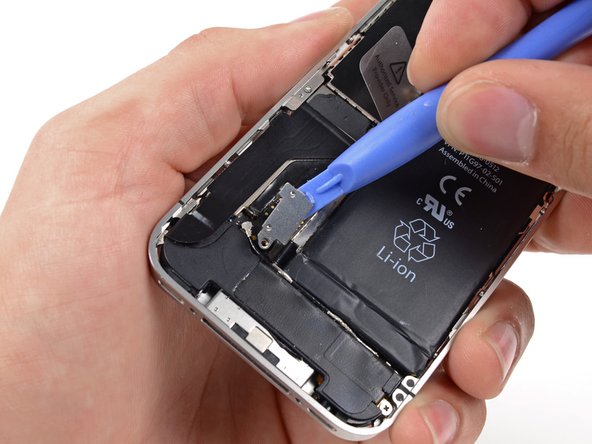

Step 5
• Use a plastic opening tool to gently pry the battery connector up from its socket on the logic board.
• Pry from the top and bottom of the connector bracket—there isn't as much of an overhang on the sides, and you may damage the connector.
• Be very careful to only pry up on the battery connector and not the socket on the logic board. If you pry up on the logic board socket, you may break it entirely.
• Remove the metal clip covering the antenna connector.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

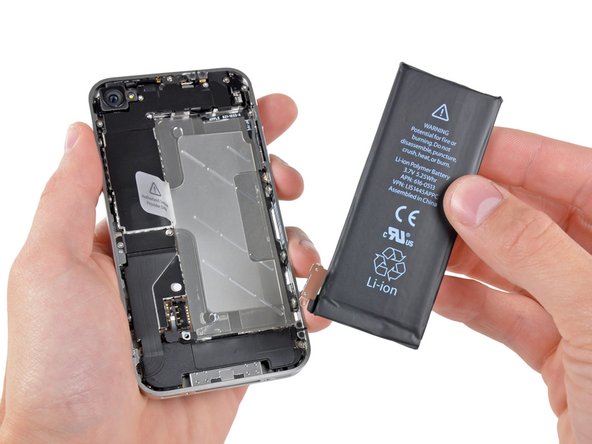

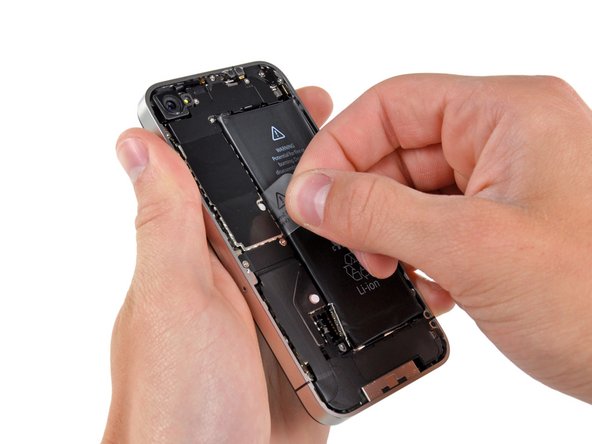

Step 6
• Use the clear plastic pull tab to gently lift the battery out of the iPhone.
• You may need to use a plastic opening tool to loosen the adhesive under the battery.

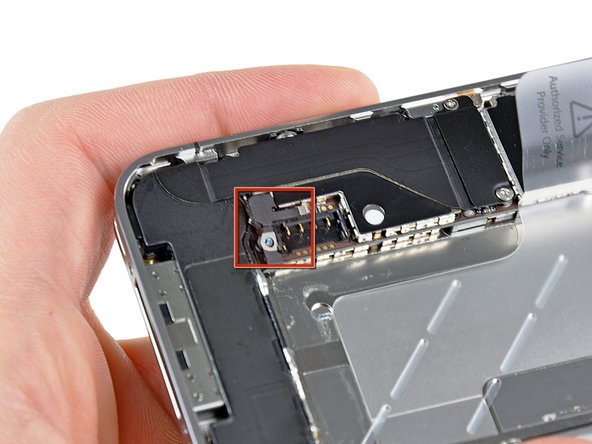

• Before reconnecting the battery connector, be sure the contact clip (shown in red) is properly positioned next to the battery connector.
• Before reassembly, clean metal-to-metal contact points with a de-greaser such as windex. The oils from your fingers have the potential to cause wireless interference issues.
• Perform a hard reset after reassembly. This can prevent several issues and simplify troubleshooting.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

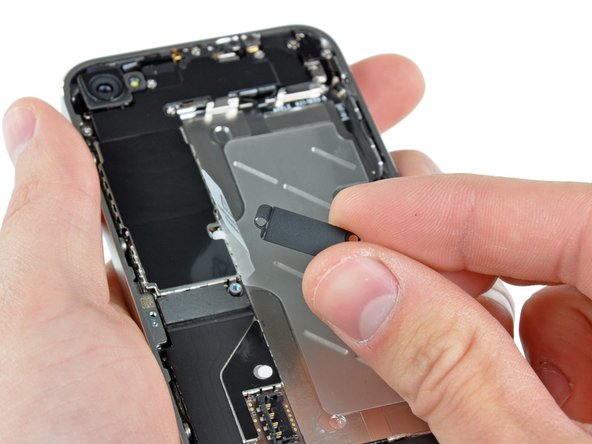

Step 7
• Remove the following two screws:
• One 1.2 mm Phillips
• One 1.6 mm Phillips
• Remove the thin steel dock connector cable cover from the iPhone.
• Before reassembly, be sure to clean all metal-to-metal contact points on the dock connector cable cover with a de-greaser such as windex. The oils on your fingers have the potential to cause wireless interference issues.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

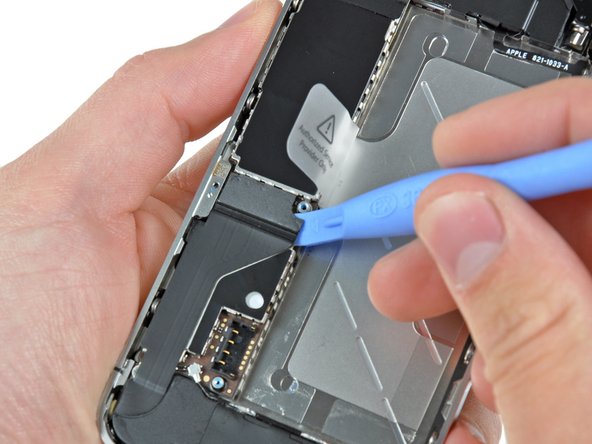

Step 8
• Use a plastic opening tool to gently pry the dock cable connector up off the logic board from both short ends of the connector.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

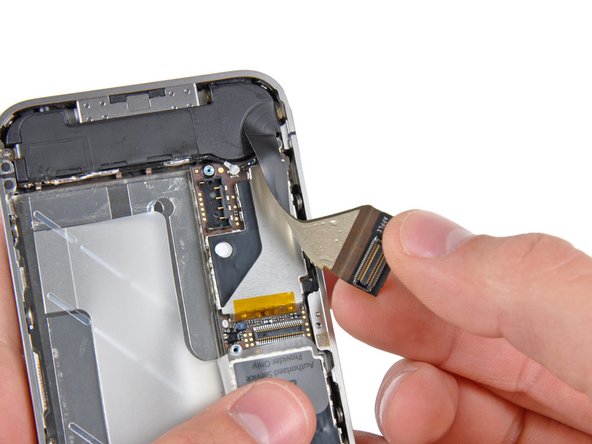

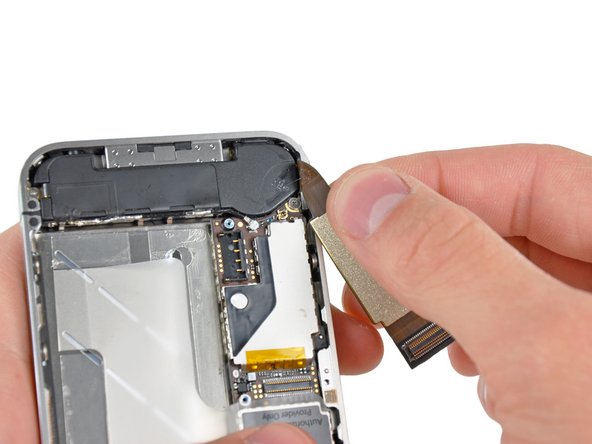

Step 9
• Carefully peel the dock ribbon cable off the logic board and the lower speaker enclosure.
• Do not use excessive force to peel the dock ribbon cable off the logic board. Doing so may tear the cable.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

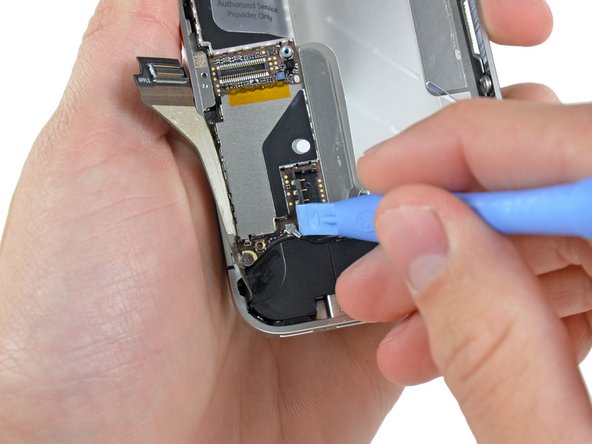

Step 10
• Use a plastic opening tool to pry the lower antenna connector up off its socket on the logic board.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

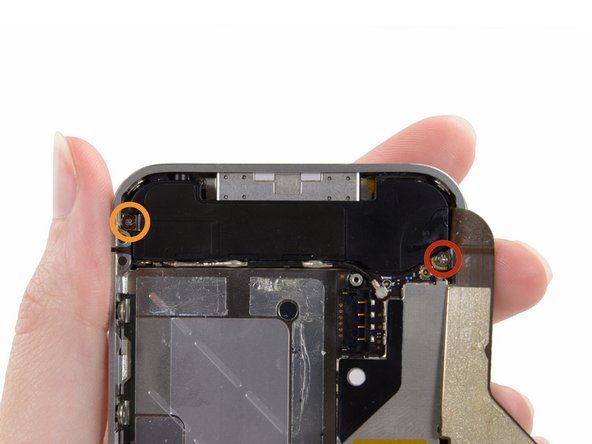

Step 11
• Remove the following screws securing the speaker enclosure assembly to the outer case:
• One 1.9 mm Phillips screw
• One 2.4 mm Phillips screw
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

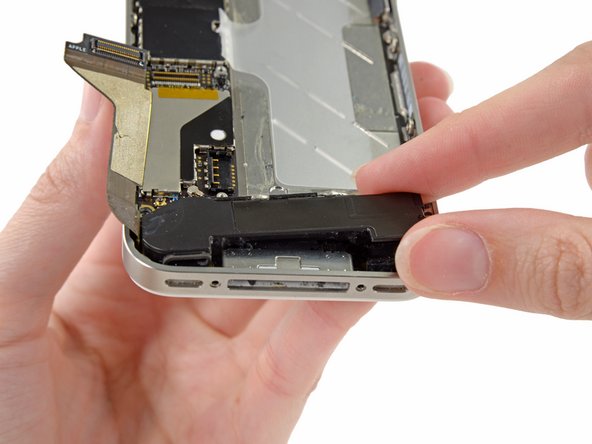

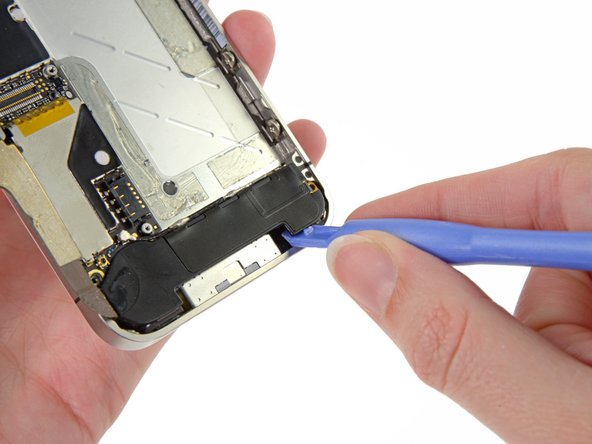

Step 12
• Use a plastic opening tool to lift the speaker enclosure assembly out of the case, being sure not to damage the EMI fingers on the attached Wi-Fi antenna.
• Remove the speaker enclosure assembly.

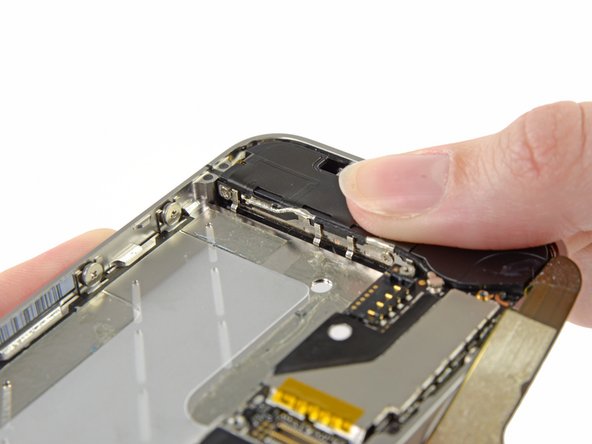

• Before reinstalling the speaker enclosure assembly's screws, be sure the Wi-Fi grounding fingers are installed below the lip in the iPhone's metal case as seen in the third picture.
• Before reassembly, be sure to clean all metal-to-metal contact points between the grounding fingers of the Wi-Fi antenna and the case of the iPhone with a de-greaser such as windex or isopropyl alcohol. The oils on your fingers have the potential to cause wireless interference issues.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

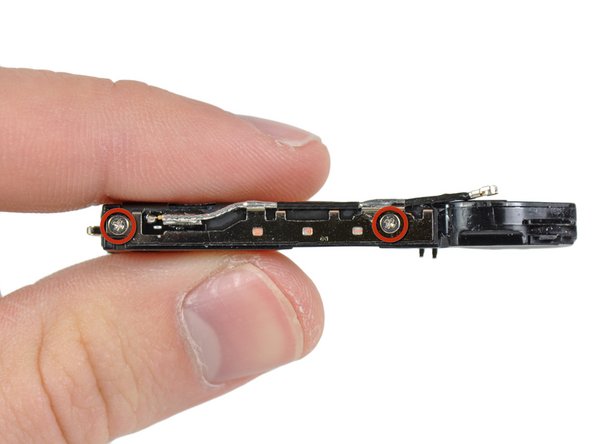

Step 13
• Remove the two Phillips screws securing the antenna to the speaker enclosure.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 14
• Starting near the cellular antenna cable, use the edge of a plastic opening tool to peel the antenna off the speaker enclosure. Make sure you insert the plastic opening tool under the plastic the antenna is mounted on, not the metal plate.
• Continue peeling the cellular antenna off the speaker enclosure, being careful not to rip the gold bracket attached to one of its edges.

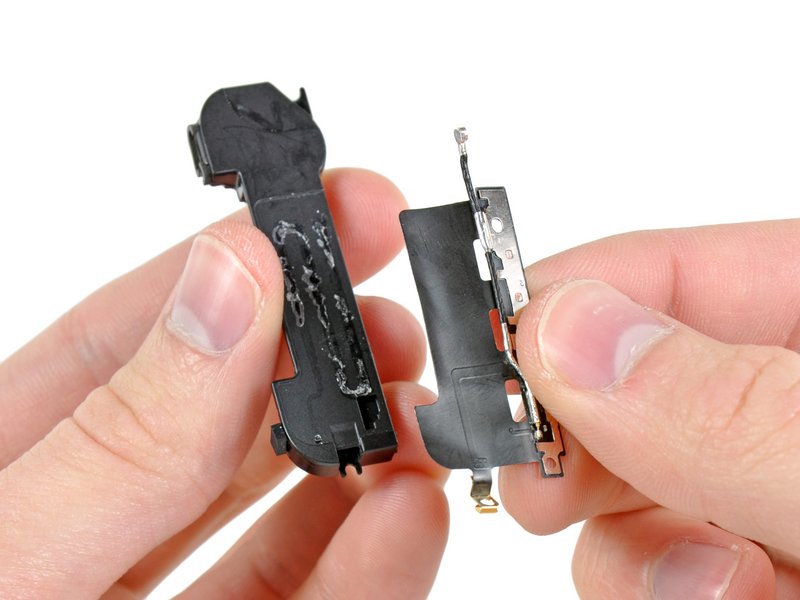

• Remove the cellular antenna.
• When installing a new cellular antenna, be sure to slide the gold bracket over the ear molded into the speaker enclosure before sticking the antenna down.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
