iPhone 4 Logic Board Replacement

Step 1 iPhone 4 Logic Board Replacement



• Before disassembling your iPhone, be sure it is powered off.
• Your iPhone 4 rear cover may have either two #000 Phillips screws or Apple's 5-Point "Pentalobe" screws (second image). Check which screws you have, and ensure you also have the correct screwdriver in order to remove them.

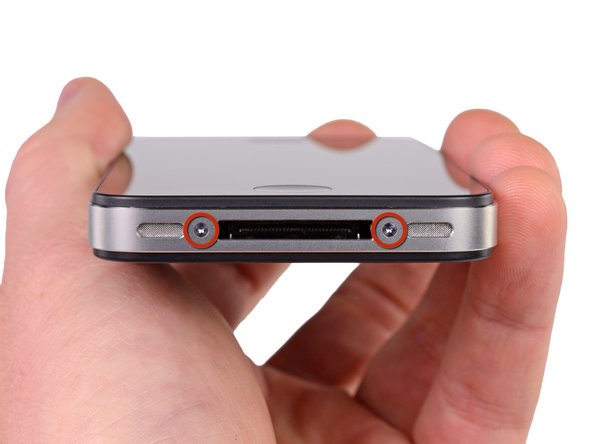

• Remove the two 3.6 mm Pentalobe or Phillips #000 screws next to the dock connector.
• During reassembly, we recommend you replace the 5-point screws with equivalent Phillips screws. Our provides the tools and screws needed to replace the Pentalobe screws with Phillips screws.
• The 5-Point Screwdriver should only be used once, as it has the potential to strip the screws.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 2



• Push the rear panel toward the top edge of the iPhone.
• The panel will move about 2 mm.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 3

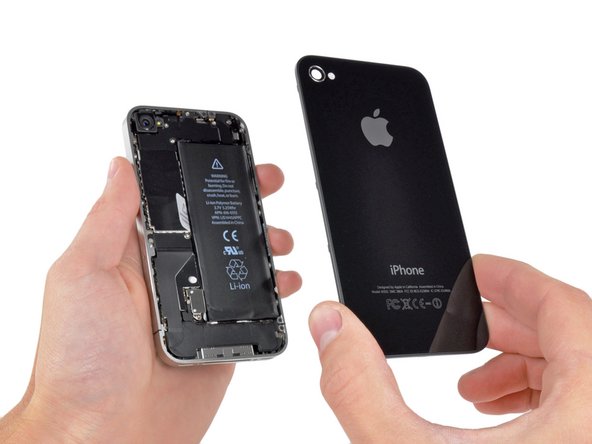

• Pinch the rear panel with your fingers and lift it away from the iPhone. Alternatively, use a .
• Be careful not to damage the plastic clips attached to the rear panel.
• If you are installing a new rear panel, be sure to remove the plastic protective sticker from the inside of the camera lens and the sticker from the large black area near the lens.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 4

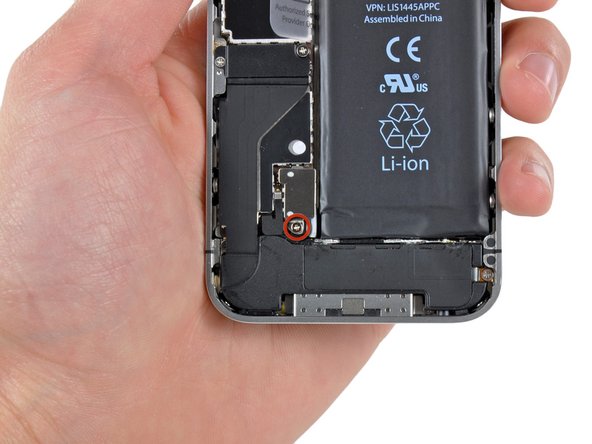

• Remove the single 2.5 mm Phillips screw securing the battery connector to the logic board.
• Some devices may have two screws, one of which holds down the contact pad which is located above the screw indicated in red in the photo.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 5

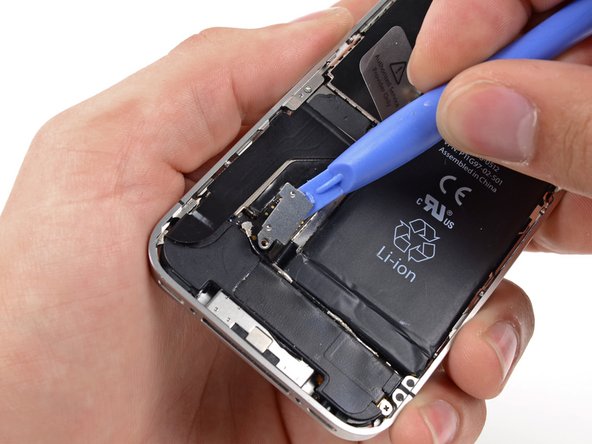

• Use a plastic opening tool to gently pry the battery connector up from its socket on the logic board.
• Pry from the top and bottom of the connector bracket—there isn't as much of an overhang on the sides, and you may damage the connector.
• Be very careful to only pry up on the battery connector and not the socket on the logic board. If you pry up on the logic board socket, you may break it entirely.
• Remove the metal clip covering the antenna connector.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

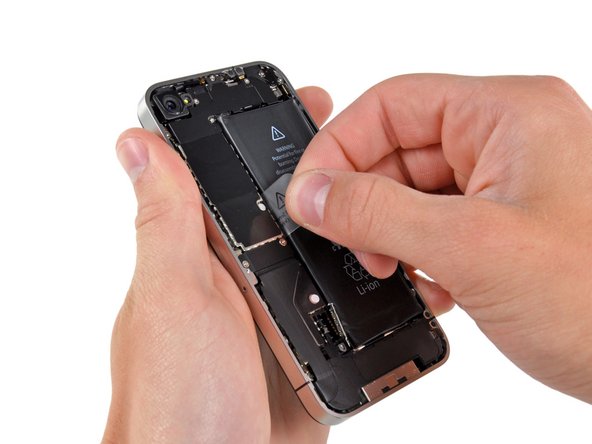

Step 6

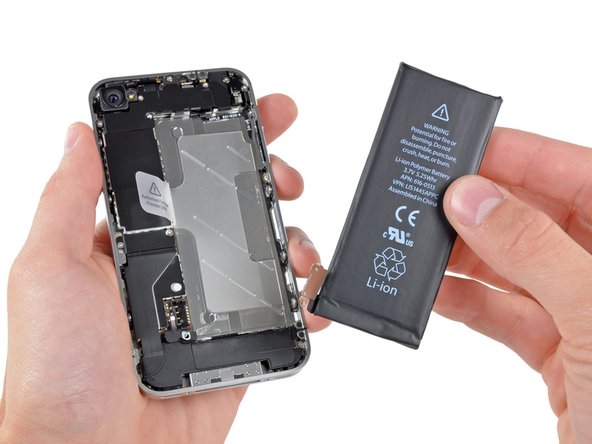

• Use the clear plastic pull tab to gently lift the battery out of the iPhone.
• You may need to use a plastic opening tool to loosen the adhesive under the battery.

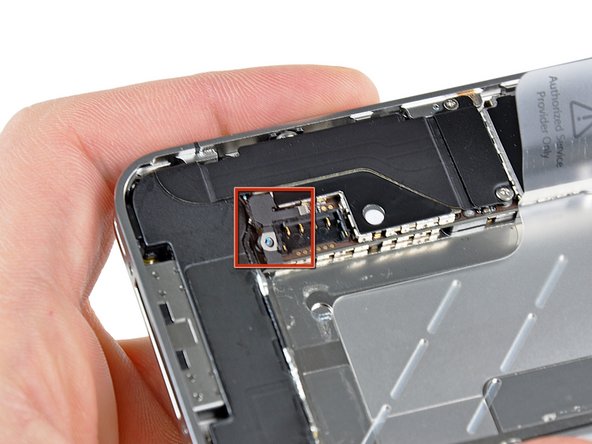

• Before reconnecting the battery connector, be sure the contact clip (shown in red) is properly positioned next to the battery connector.
• Before reassembly, clean metal-to-metal contact points with a de-greaser such as windex. The oils from your fingers have the potential to cause wireless interference issues.
• Perform a hard reset after reassembly. This can prevent several issues and simplify troubleshooting.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

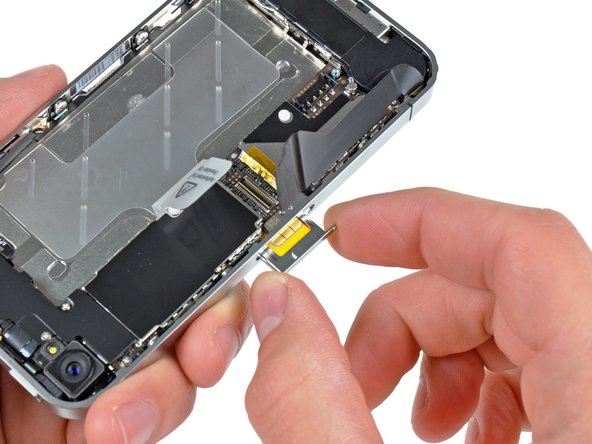

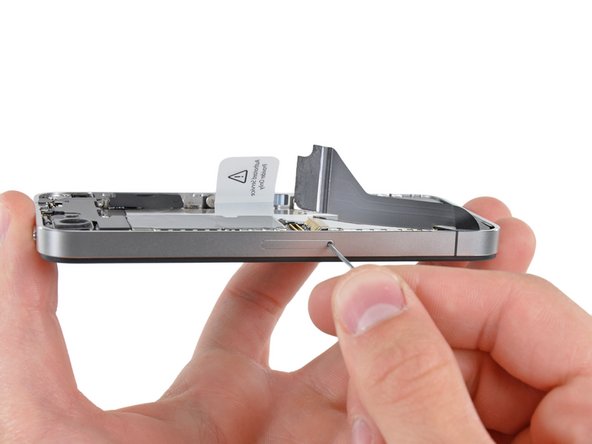

Step 7
• Use a SIM card eject tool or a paperclip to eject the SIM card and its holder.
• This may require a significant amount of force.
• Remove the SIM card and its holder.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 8

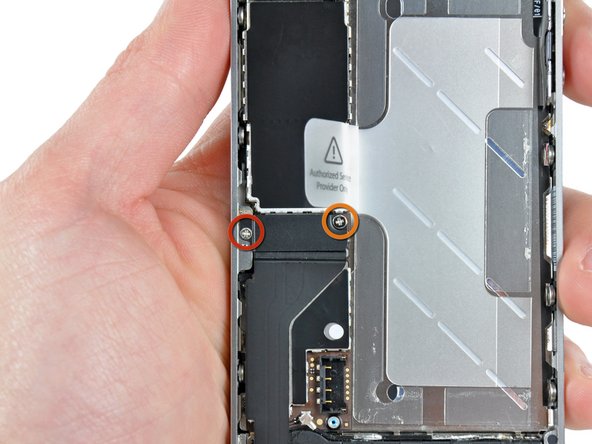

• Remove the following two screws:
• One 1.2 mm Phillips
• One 1.6 mm Phillips

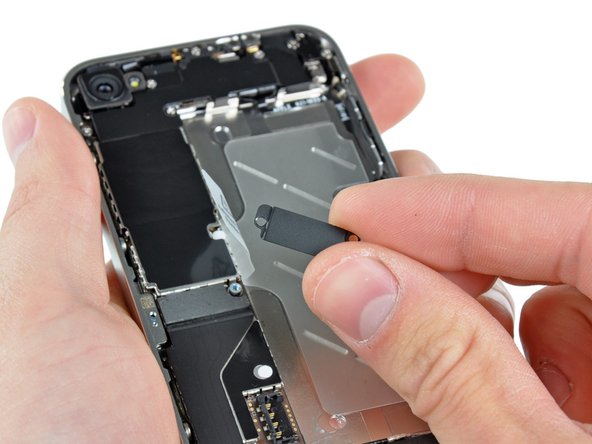

• Remove the thin steel dock connector cable cover from the iPhone.
• Before reassembly, be sure to clean all metal-to-metal contact points on the dock connector cable cover with a de-greaser such as windex. The oils on your fingers have the potential to cause wireless interference issues.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 9

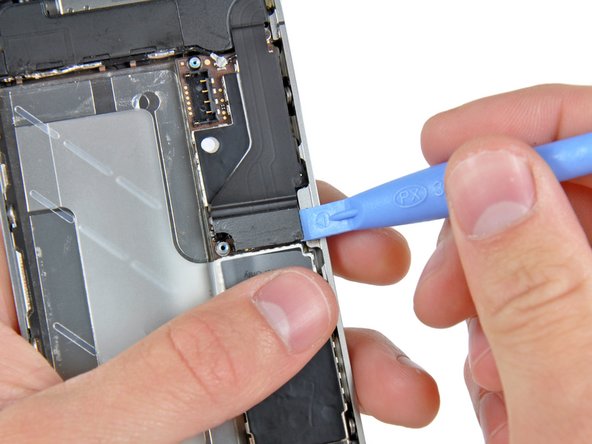

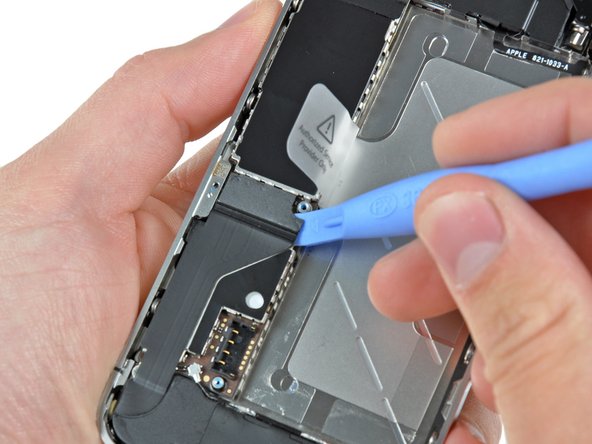

• Use an iPod opening tool to gently pry the dock cable connector up off the logic board from both short ends of the connector.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

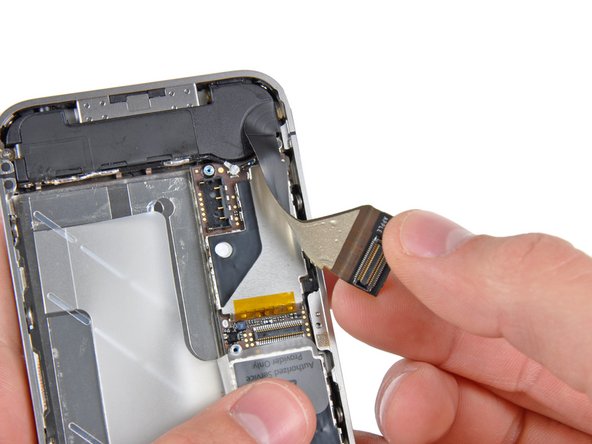

Step 10

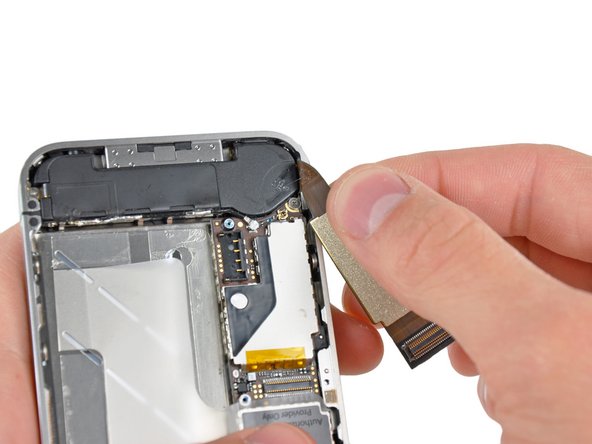

• Carefully peel the dock ribbon cable off the logic board and the lower speaker enclosure.
• Do not use excessive force to peel the dock ribbon cable off the logic board. Doing so may tear the cable.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 11

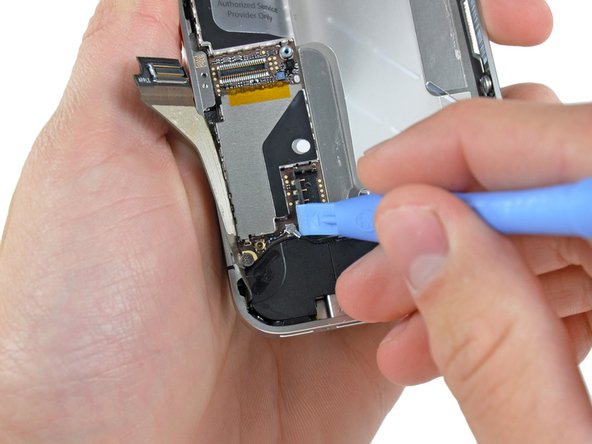

• Use a plastic opening tool to pry the lower antenna connector up off its socket on the logic board.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

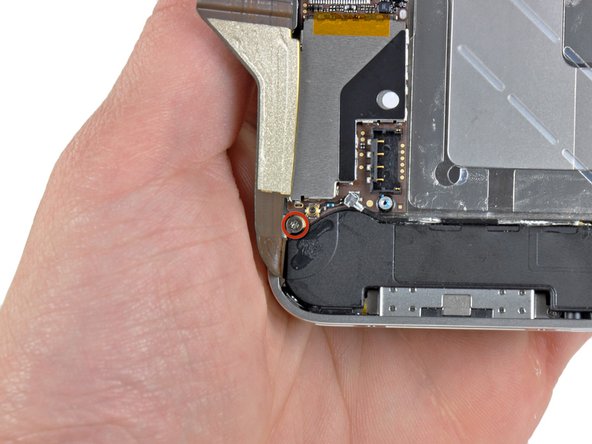

Step 12
• Remove the 1.9 mm Phillips screw securing the bottom of the logic board to the inner case.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 13

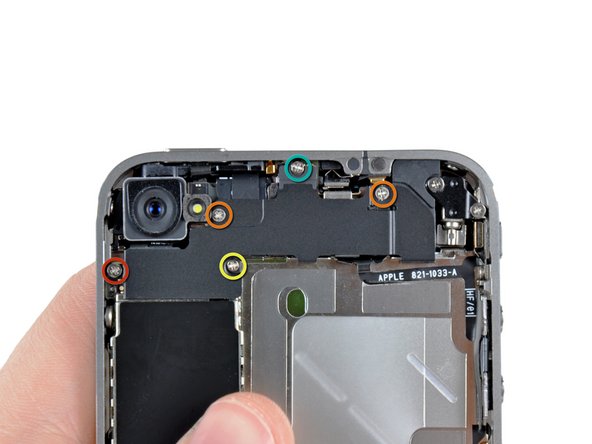

• Remove the following five screws securing the Wi-Fi antenna to the logic board:
• One 2.3 mm Phillips
• Two 1.6 mm Phillips
• One 1.4 mm Phillips
• One 4.8 mm Phillips
• When re-assembling, start off with replacing the 4.8 mm Philips screw first, then the 2.3 mm. This is to ensure there is no mix-up, and avoid rendering the LCD and digitizer useless.
• Also make sure to put the long 4.8 mm Philips back in correctly when reassembling. This is the ground for the Wi-Fi antenna and is often the culprit if you are having bad Wi-Fi reception after reassembly.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

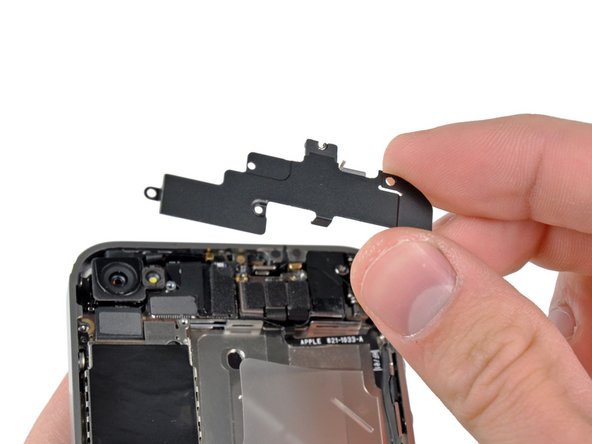

Step 14

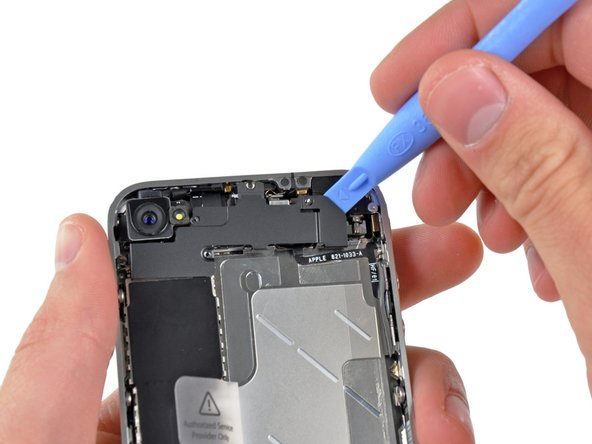

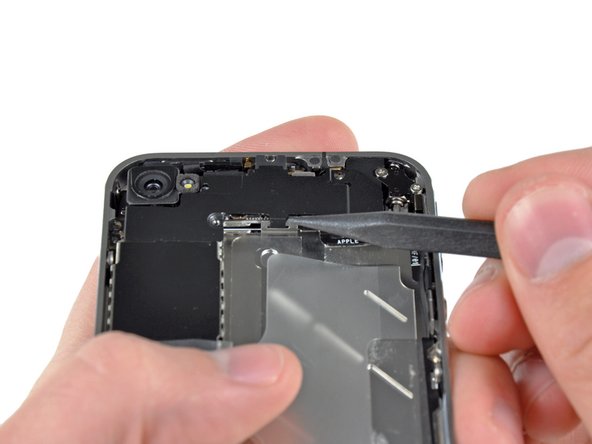

• Use an iPod opening tool to slightly lift the top edge of the Wi-Fi antenna away from the logic board.
• Use the tip of a spudger to pull the Wi-Fi retaining clips away from the inner frame.
• Remove the Wi-Fi antenna from the iPhone. Make sure you don't lose the metal clips on the top of the cover where the 4.8mm screw attaches or the 4.8mm screw. That's the primary reason for abnormal Wi-Fi performance after the reassembly.
• Before reassembly, be sure to clean all metal-to-metal contact points on the connector cover with a de-greaser such as Windex. The oils on your fingers have the potential to cause wireless interference issues. Do not clean the connectors themselves with Windex.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

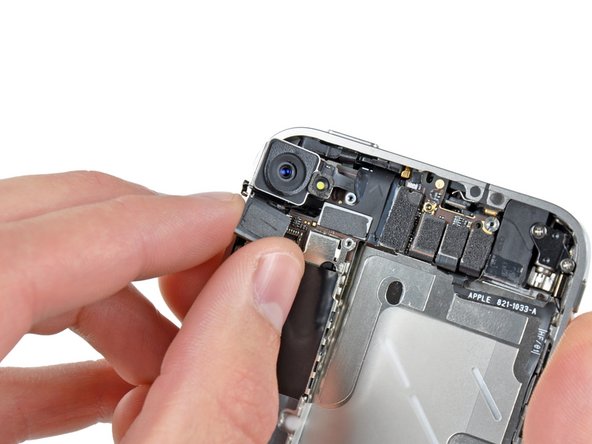

Step 15
• Use an iPod opening tool to carefully lift the rear camera connector up off its socket on the logic board.
• Remove the rear camera.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 16

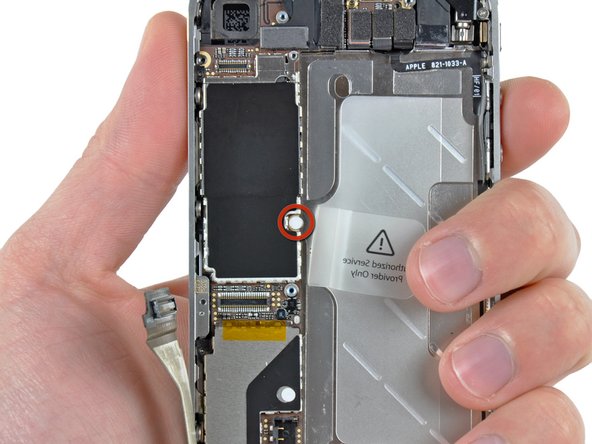

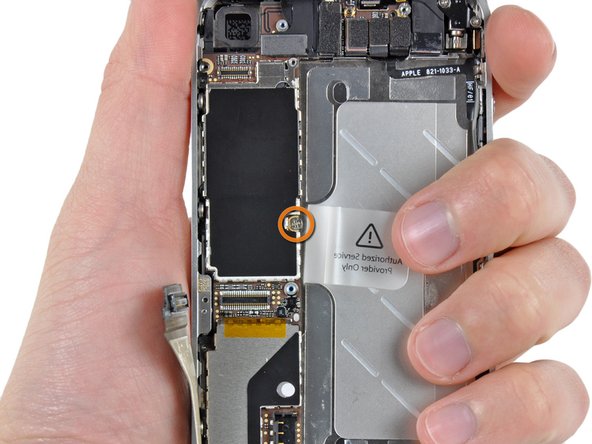

• Remove the small circular white sticker (warranty sticker and water indicator) covering the screw near the battery pull tab.
• Remove the 2.4 mm Phillips screw that was hidden underneath the sticker.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 17

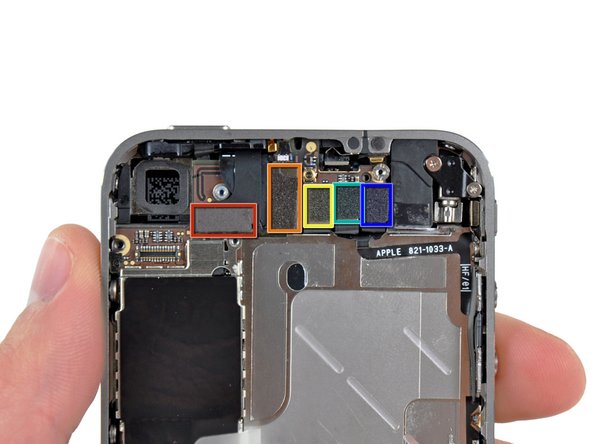

• Use the edge of a plastic opening tool to gently pry the following connectors up and out of their sockets on the logic board:
• Digitizer cable (pry from bottom)
• LCD cable (pry from bottom)
• Headphone jack/volume button cable (pry from top)
• Top Microphone/sleep button cable (pry from top)
• Front camera cable (pry from top)
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

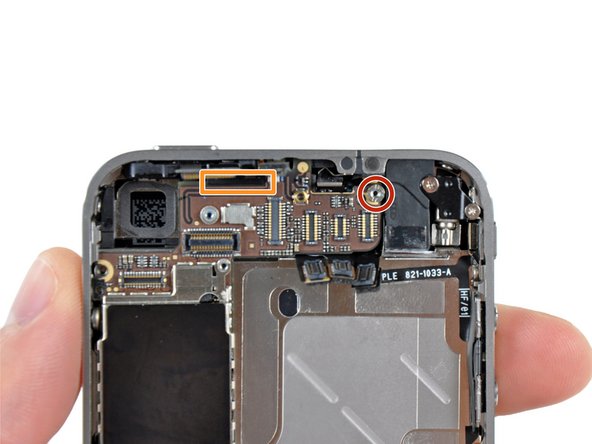

Step 18
• Use a small flathead screwdriver to remove the 4.8 mm standoff near the headphone jack.
• When reassembling the device, this standoff sets the height of the Wi-Fi shield removed in step 13. If not torqued down, the shield will be above the plane of the frame and the back will not slide into place in step 2. The shield should be flush with the headphone jack.
• When reassembling the motherboard, ensure that its edge sits under the circled standoff, otherwise the screws will not fit.
• When reassembling ensure that the small rubber spacer attached to the top of the motherboard is in place.
• Without this part, the motherboard could damage the ribbon cables around it.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 19

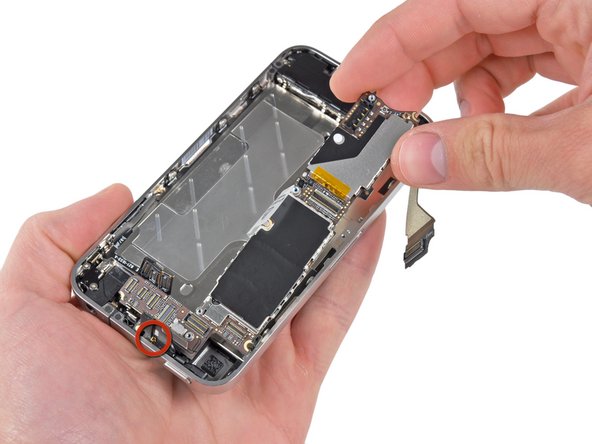

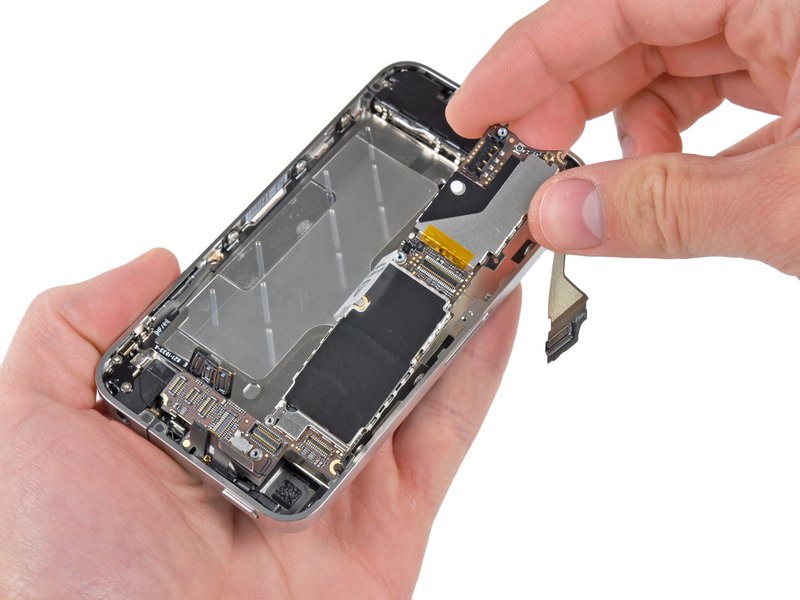

• Carefully remove the logic board from the iPhone, minding any cables that may get caught.
• Be careful not to damage the small gold prong (marked in red, near the top) as it's very fragile.
• On reassembly, be careful not to trap the lower antenna cable beneath the logic board.
