Introduction
Use this guide to replace the vibrator motor that provides vibration notifications of incoming calls.
What you need
-
-
Your iPhone 4 rear cover may have either two #000 Phillips screws or Apple's 5-Point "Pentalobe" screws (second image). Check which screws you have, and ensure you also have the correct screwdriver in order to remove them.
-

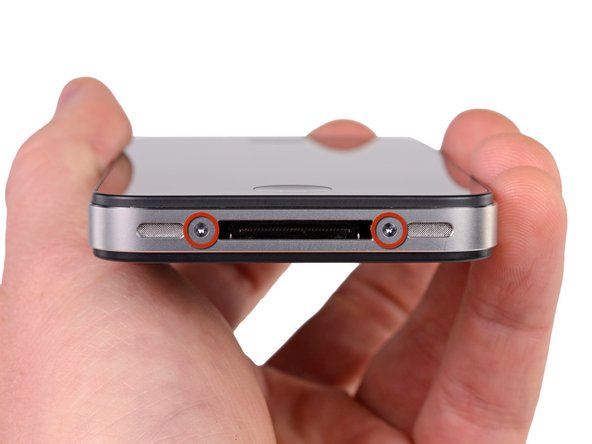

Remove the two 3.6 mm Pentalobe or Phillips #000 screws next to the dock connector.
-
-
-

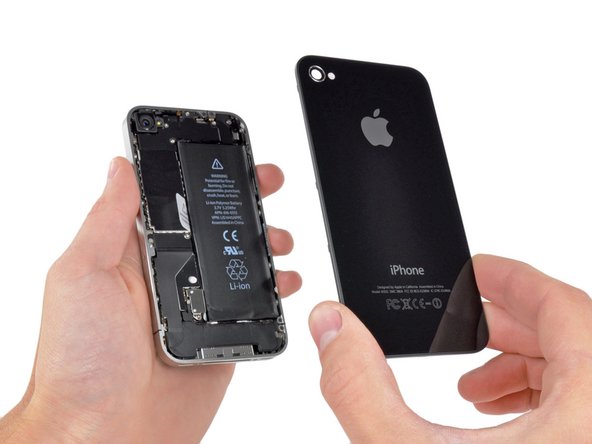

Pinch the rear panel with your fingers and lift it away from the iPhone. Alternatively, use a .
-
-
-

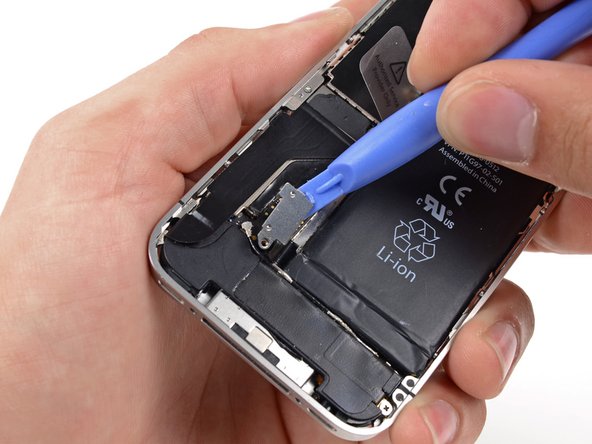

Use a plastic opening tool to gently pry the battery connector up from its socket on the logic board.
-
Remove the metal clip covering the antenna connector.
-
-
-

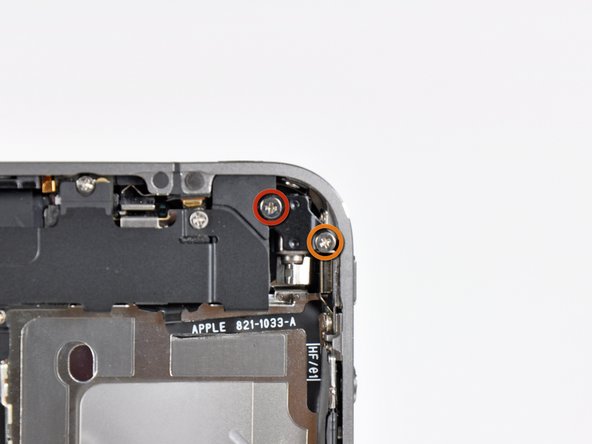

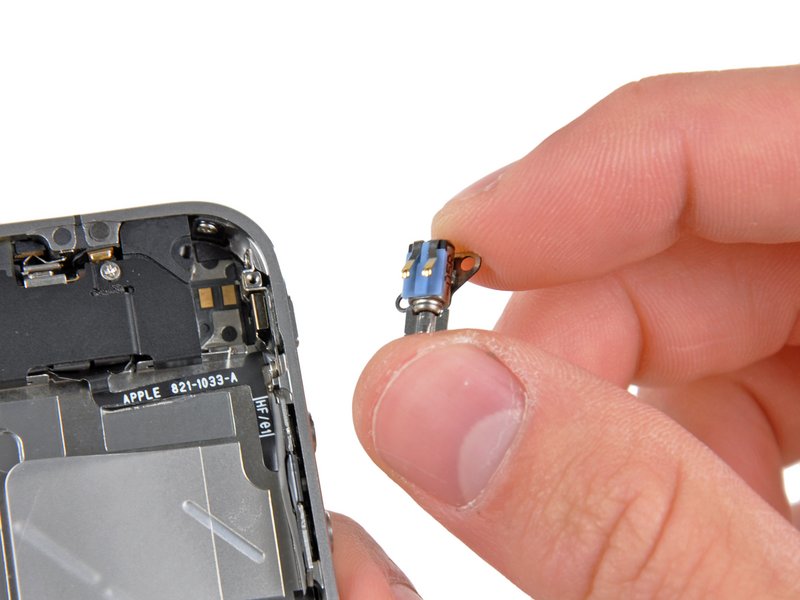

Remove the following two screws securing the vibrator to the inner frame:
-
One 6 mm Phillips
-
One 1.4 mm Phillips
-
To reassemble your device, follow these instructions in reverse order.
To reassemble your device, follow these instructions in reverse order.
