Introduction
This guide is for replacing the metal portion of the volume buttons, not the electronic switches.
What you need
-
-
Your iPhone 4 rear cover may have either two #000 Phillips screws or Apple's 5-Point "Pentalobe" screws (second image). Check which screws you have, and ensure you also have the correct screwdriver in order to remove them.
-
Remove the two 3.6 mm Pentalobe or Phillips #000 screws next to the dock connector.
-
-
-

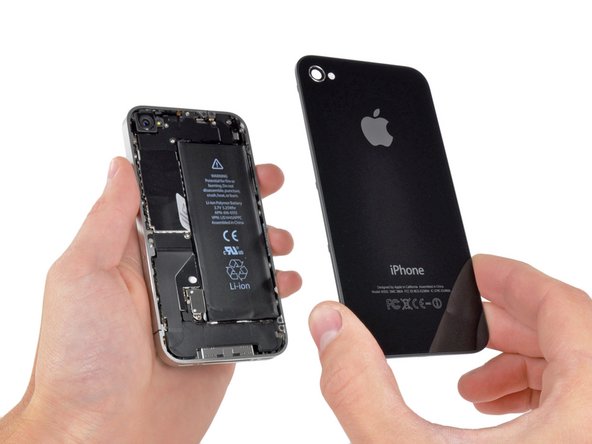

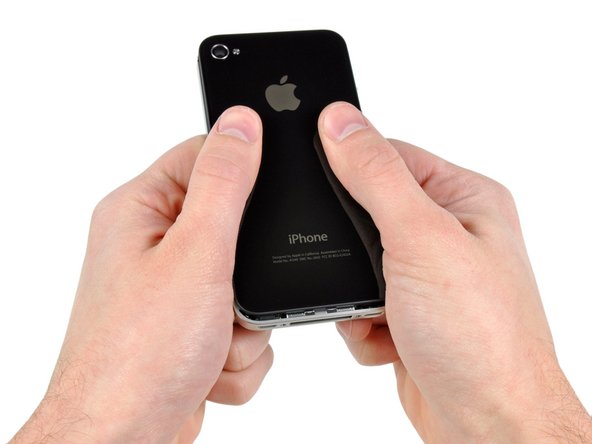

Pinch the rear panel with your fingers and lift it away from the iPhone. Alternatively, use a .
-
-
-

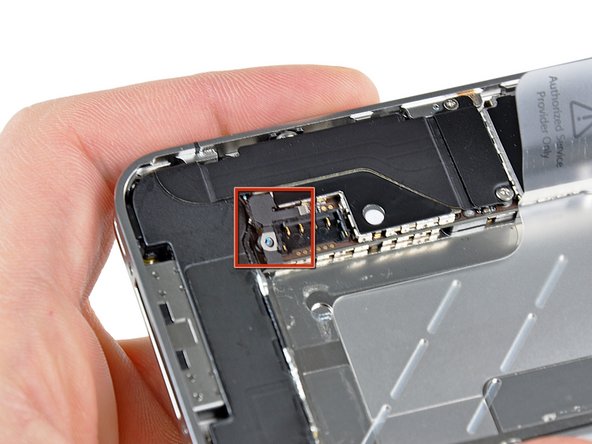

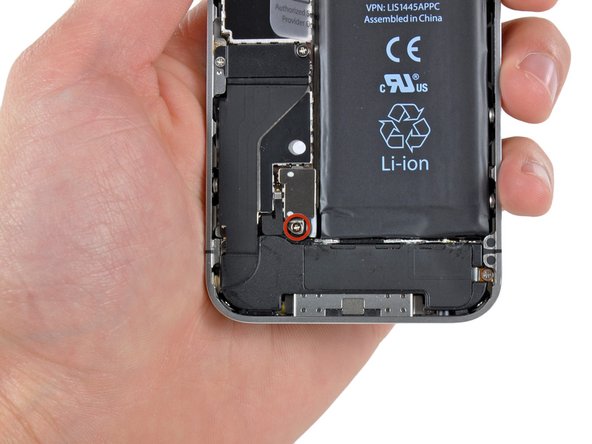

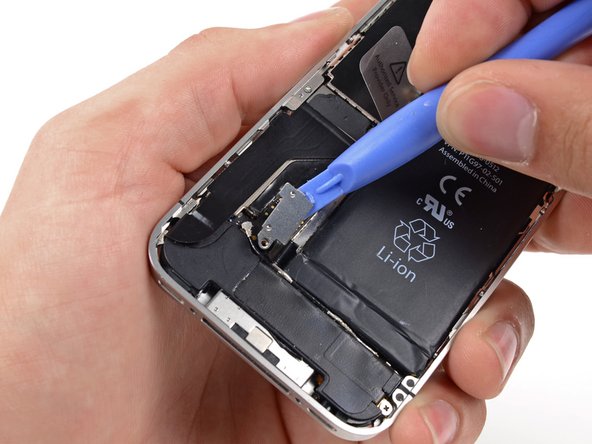

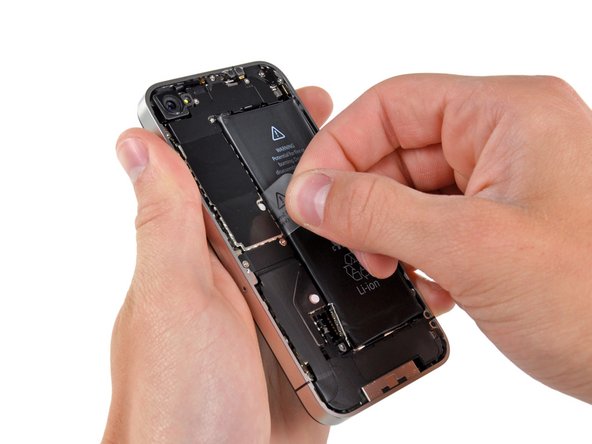

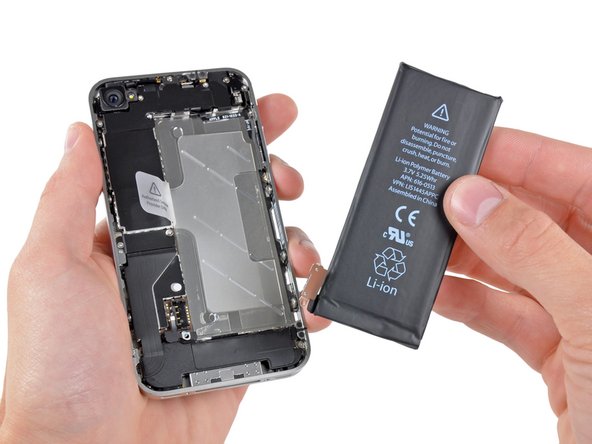

Use a plastic opening tool to gently pry the battery connector up from its socket on the logic board.
-
Remove the metal clip covering the antenna connector.
-
-
-

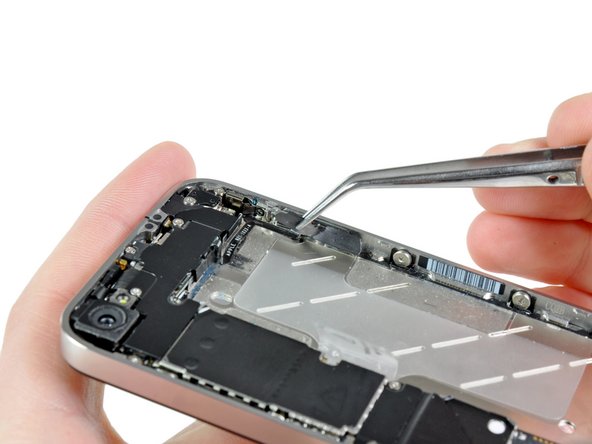

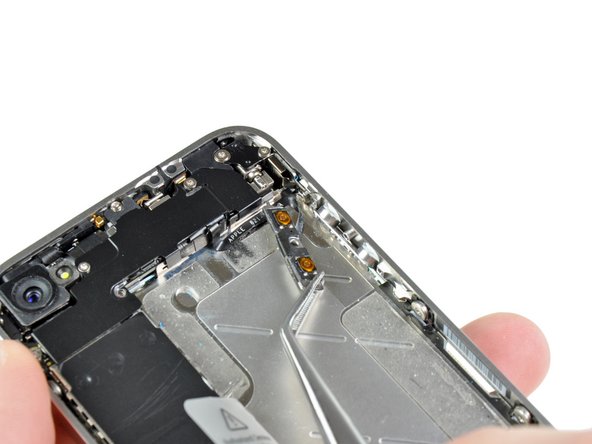

Use a pair of tweezers to remove the small strip of tape covering the back of the volume buttons.
-
-
-

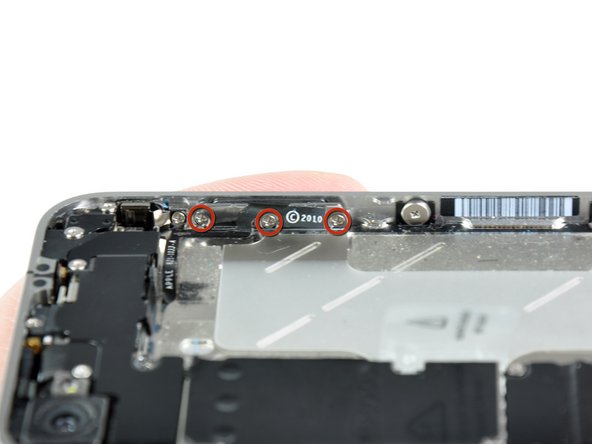

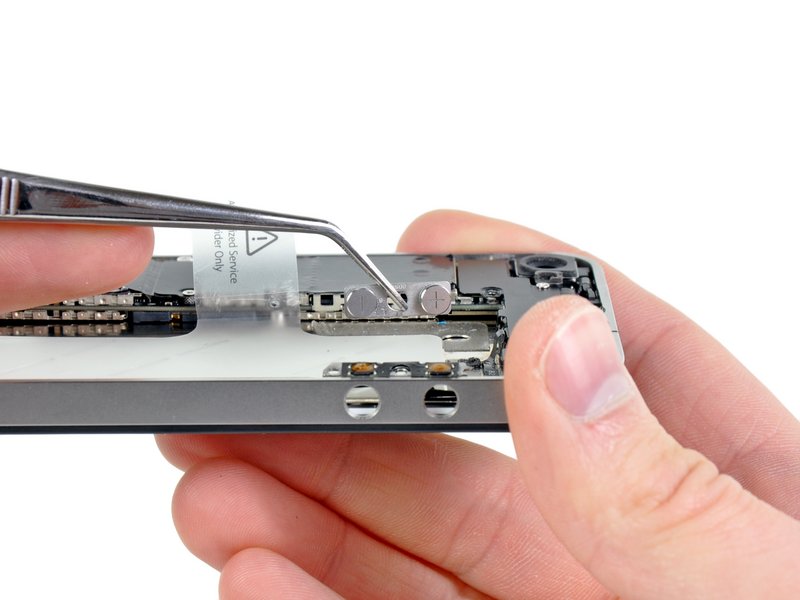

Use a pair of tweezers to gently pull the volume button bracket slightly away from the outer case.
-
To reassemble your device, follow these instructions in reverse order.
To reassemble your device, follow these instructions in reverse order.
