Introduction
Use this guide to remove the iPhone's primary rear camera.
What you need
-
-
Remove the two 3.6 mm Pentalobe P2 screws next to the dock connector.
-
-
-

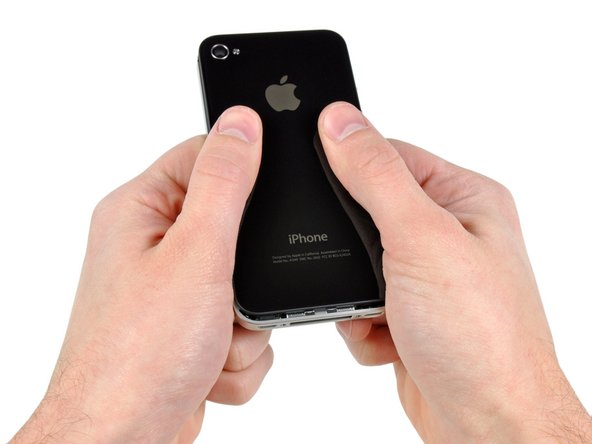

Pull the rear panel away from the back of the iPhone, being careful not to damage the plastic clips attached to the rear panel.
-

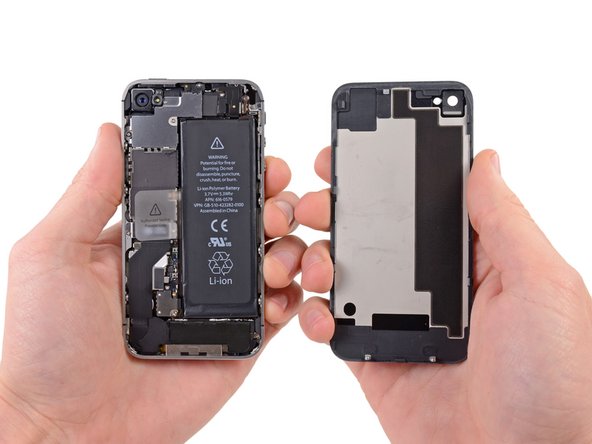

Remove the rear panel from the iPhone.
-
-
-
Remove the following screws securing the battery connector to the logic board:
-
One 1.7 mm Phillips screw
-
One 1.5 mm Phillips screw.
-

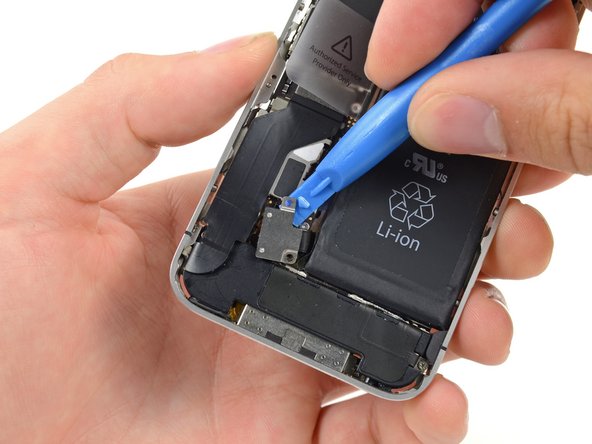

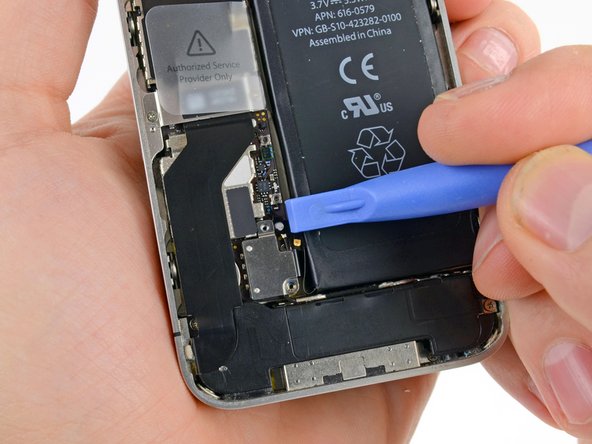

Use a plastic opening tool to gently detach the battery connector from the socket on the device. Start lifting off the connector from the bottom side, by placing the tip of the tool between the loudspeaker enclosure and the metal cover of the connector.
-
-
-

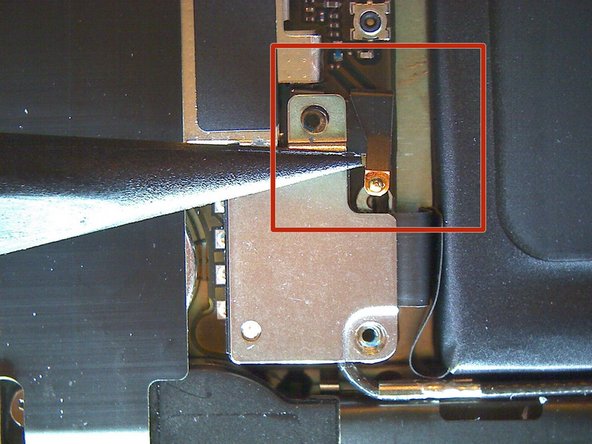

Use a plastic opening tool to pull the pressure contact from underneath the battery connector.
-

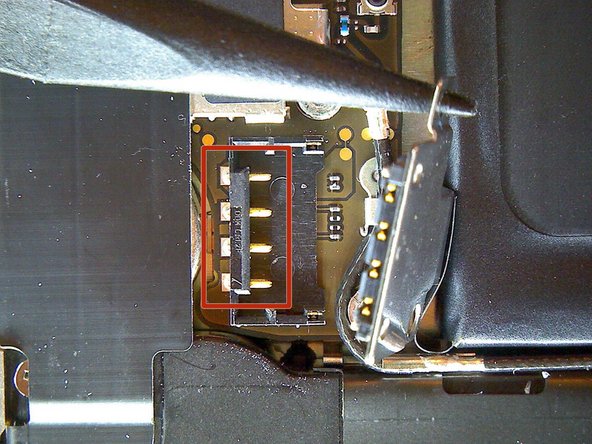

Be careful not to rip off the battery connector socket soldered on the logic board. There are 4 very small soldering points awaiting this mistake!
-
-
-

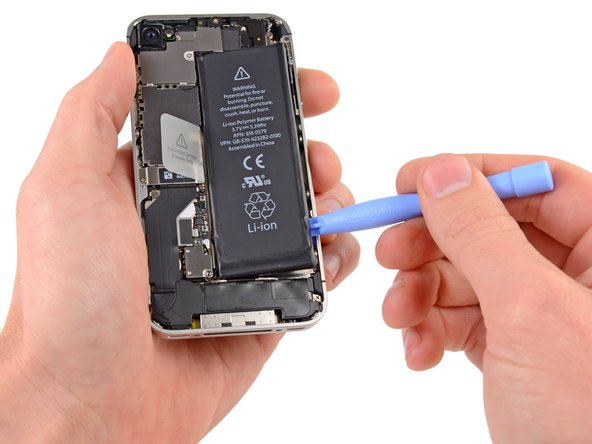

Insert the edge of a plastic opening tool between the battery and the outer case near the bottom of the iPhone.
-

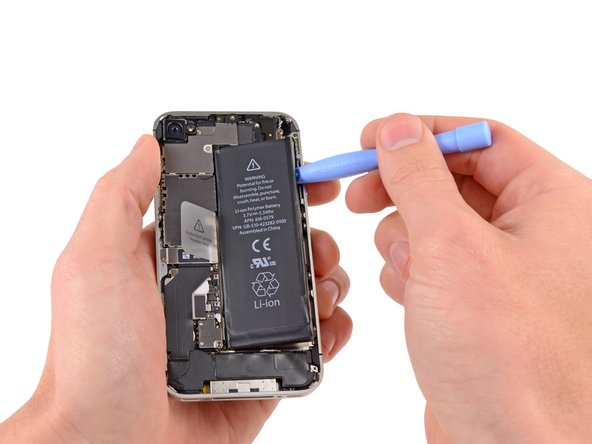

Run the plastic opening tool along the right edge of the battery and pry up at several points to completely separate it from the adhesive securing it to the outer case.
-
-
-

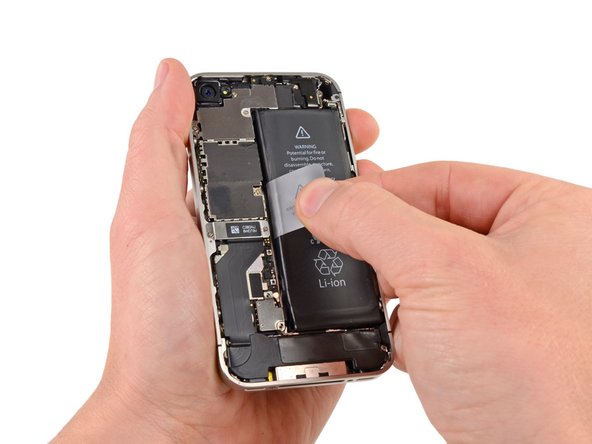

Use the exposed clear plastic pull tab to peel the battery off the adhesive securing it to the iPhone.
-

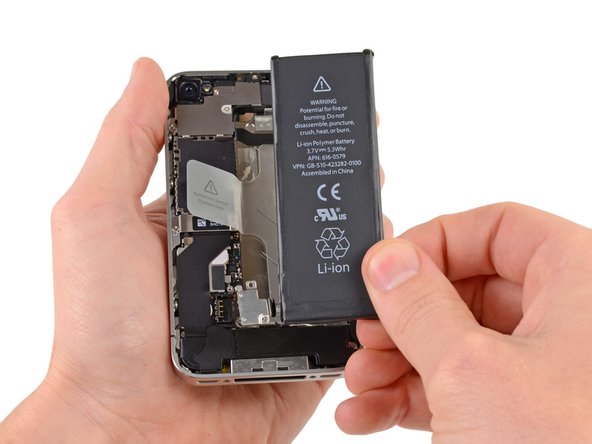

Remove the battery.
-
-
-

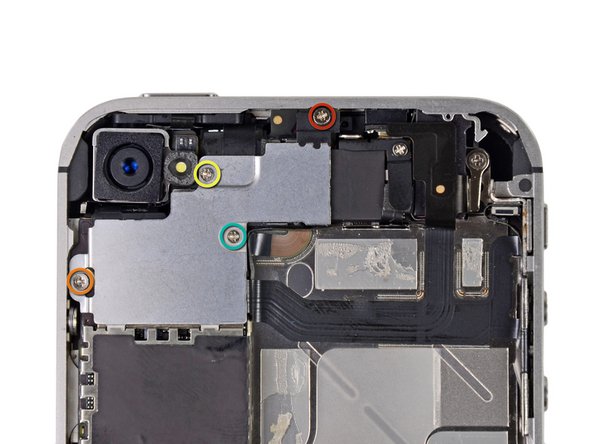

Remove the following four screws securing the cable cover to the logic board:
-
One 2.7 mm Phillips screw
-
One 2.6 mm Phillips screw
-
One 1.3 mm Phillips screw
-
One 1.2 mm Phillips screw
-
-
-

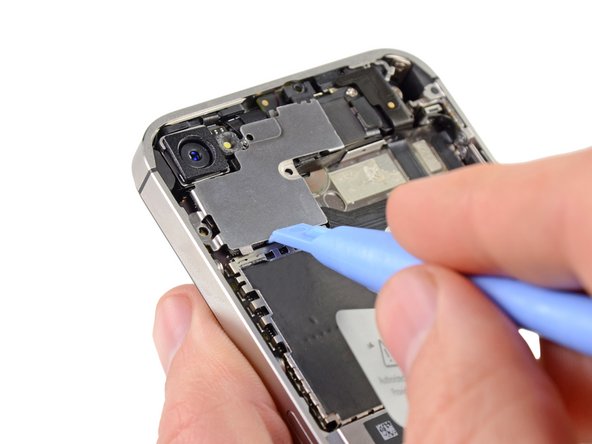

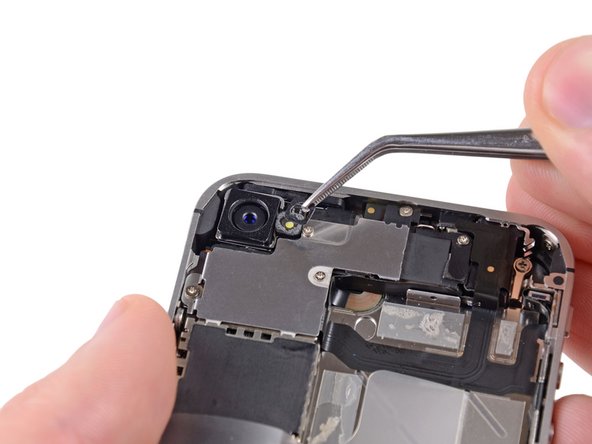

Use the edge of a plastic opening tool to pry the cable cover tabs out of their slots cut into the EMI shield on the logic board.
-

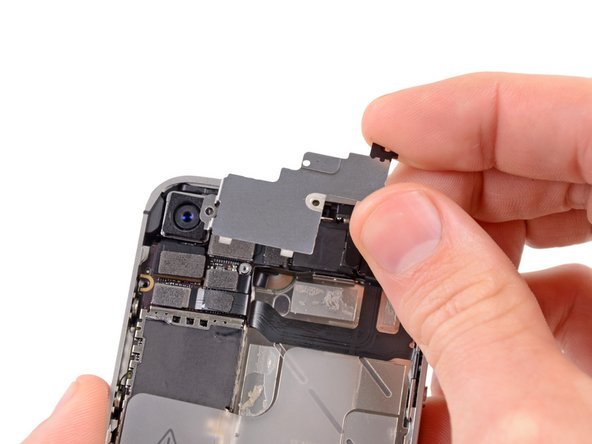

Lift the cable cover from its edge nearest the top and remove it from the iPhone.
-
-
-

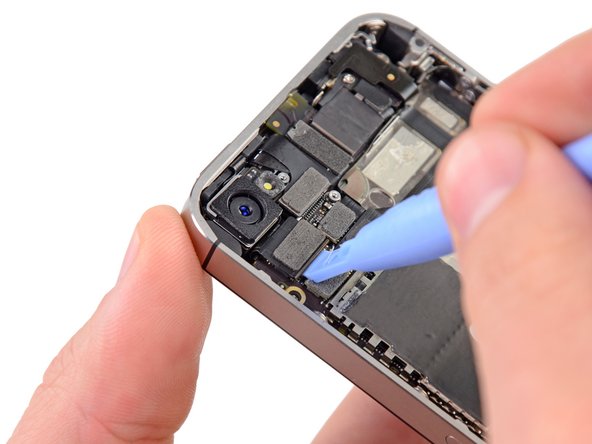

Use the edge of a plastic opening tool to pry the rear camera connector up from its socket on the logic board.
-

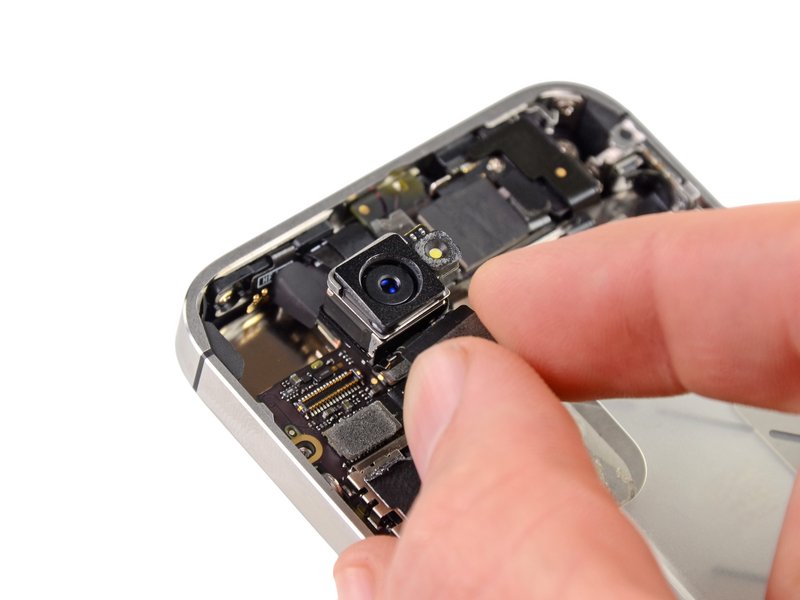

Remove the rear camera from the iPhone.
-
To reassemble your device, follow these instructions in reverse order.
