iPhone 4S Vibrator Replacement

Step 1 iPhone 4S Vibrator Replacement

• Before disassembling your iPhone, be sure it is powered off.
• Remove the two 3.6 mm Pentalobe P2 screws next to the dock connector.
• During reassembly, we recommend you replace the 5-point screws with equivalent Phillips screws. Our provides the tools and screws needed to replace the Pentalobe screws with Phillips screws.
• The 5-Point Screwdriver should only be used once, as it has the potential to strip the screws.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 2

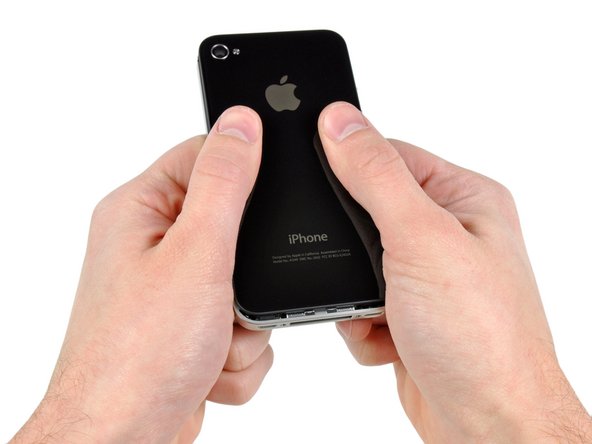

• Push the rear panel toward the top edge of the iPhone.
• The panel will move about 2 mm.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 3

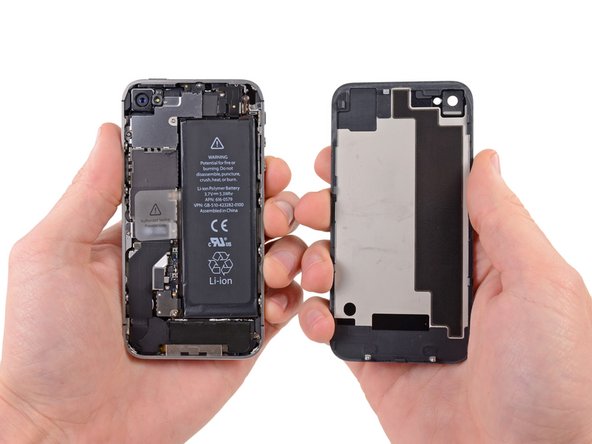

• Pull the rear panel away from the back of the iPhone, being careful not to damage the plastic clips attached to the rear panel.
• Remove the rear panel from the iPhone.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 4

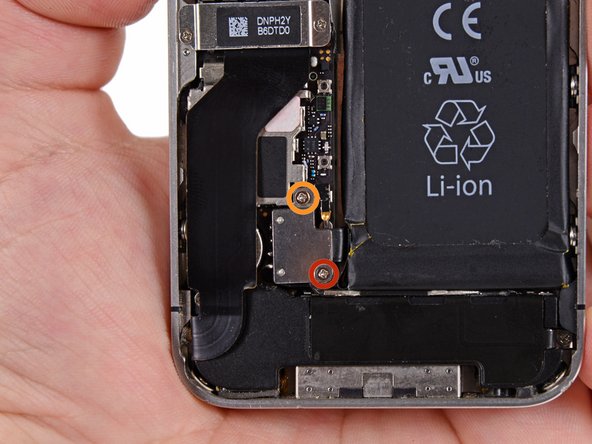

• Remove the following screws securing the battery connector to the logic board:
• One 1.7 mm Phillips screw
• One 1.5 mm Phillips screw.

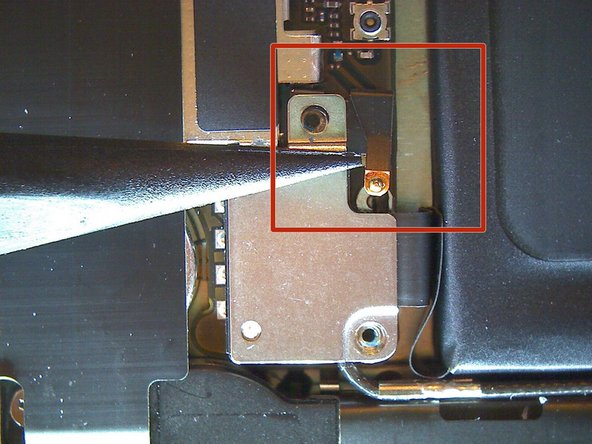

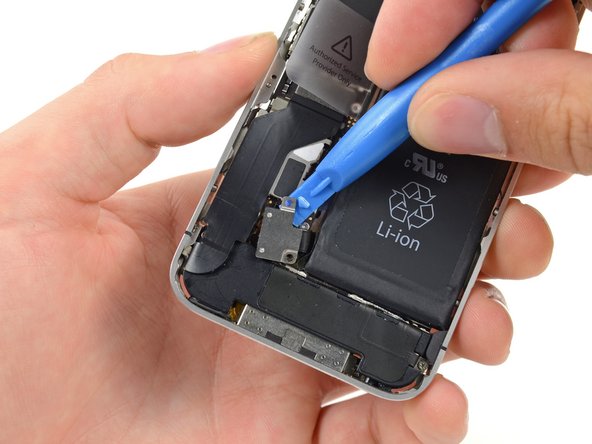

• Use a plastic opening tool to gently detach the battery connector from the socket on the device. Start lifting off the connector from the bottom side, by placing the tip of the tool between the loudspeaker enclosure and the metal cover of the connector.
• The battery connector comes off vertically from the logic board. Do not apply force sideways.
• Pay attention to the pressure contact underneath the top screw of the battery connector. This may come loose while prying the battery connector from its socket.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 5

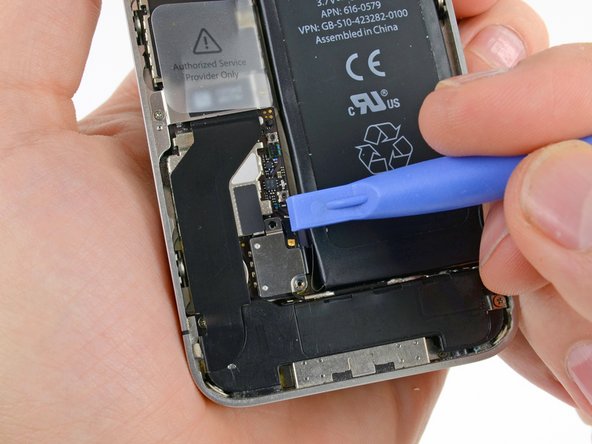

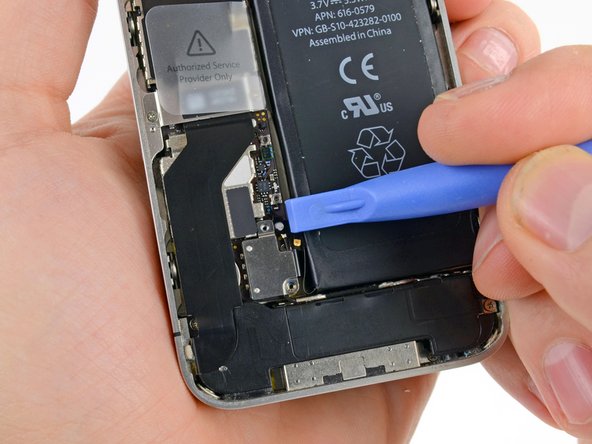

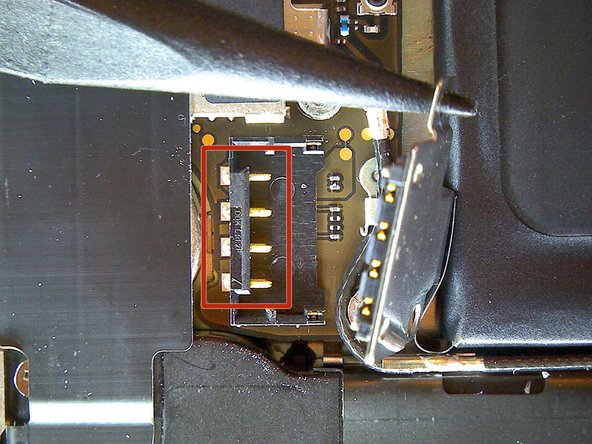

• Use a plastic opening tool to pull the pressure contact from underneath the battery connector.
• When reinstalling the pressure contact, be sure to clean it with a degreaser such as windex or isopropyl alcohol. The oils on your fingers have the potential to create wireless interference.
• Take notice of the position of the small black ground clip on the upper screw of the battery connector. This clip is attached only by the upper screw. When reinstalling, it must be aligned so the gold contact point will press against the back cover.
• Be careful not to rip off the battery connector socket soldered on the logic board. There are 4 very small soldering points awaiting this mistake!
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 6

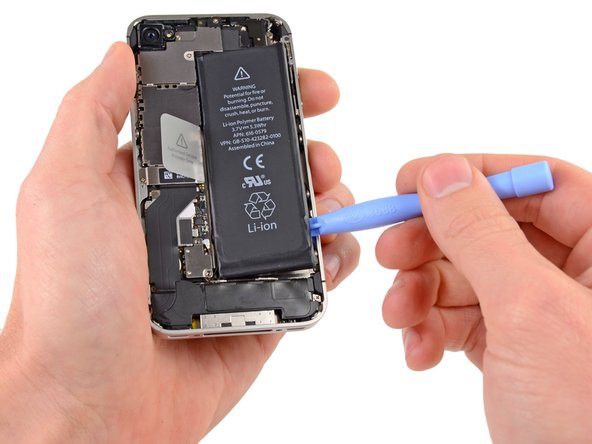

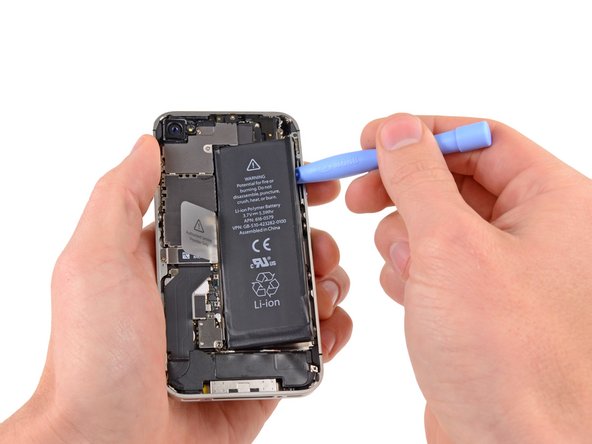

• Insert the edge of a plastic opening tool between the battery and the outer case near the bottom of the iPhone.
• Run the plastic opening tool along the right edge of the battery and pry up at several points to completely separate it from the adhesive securing it to the outer case.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 7

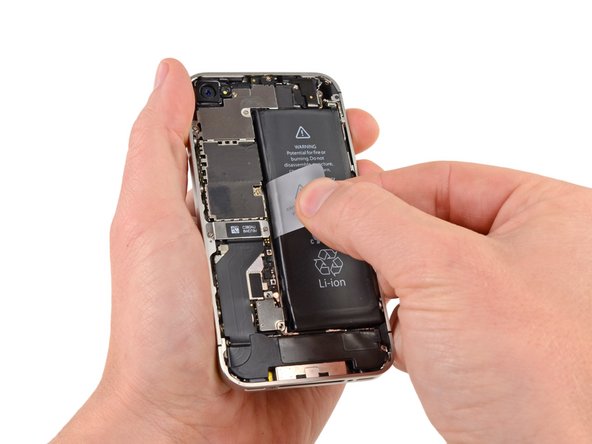

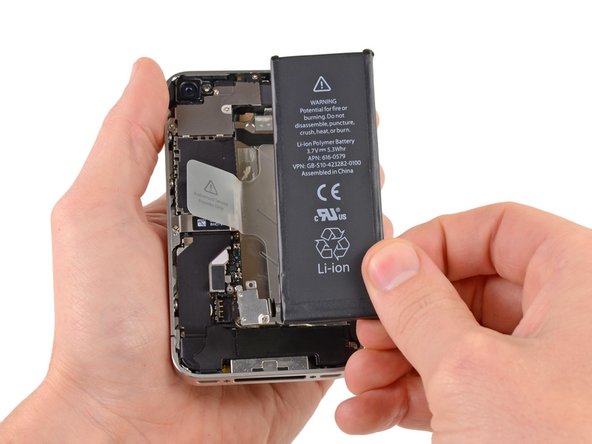

• Use the exposed clear plastic pull tab to peel the battery off the adhesive securing it to the iPhone.
• Be careful not to pull the plastic pull tab too hard as it can be ripped off very easily.
• Remove the battery.
• Perform a hard reset after reassembly. This can prevent several issues and simplify troubleshooting.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 8

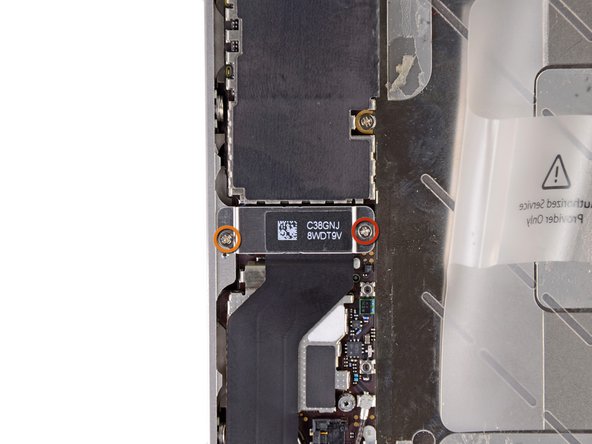

• Remove the following screws securing the dock connector cable cover to the logic board:
• One 1.5 mm Phillips screw
• One 1.2 mm Phillips screw
• Remove the metal dock connector cable cover.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 9

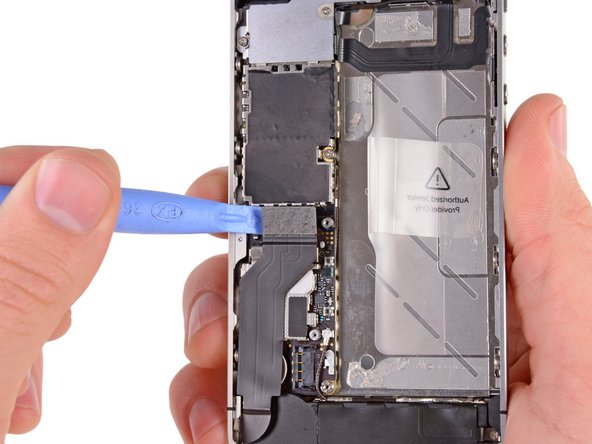

• Use the edge of a plastic opening tool to pry the dock cable up from its socket on the logic board.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 10

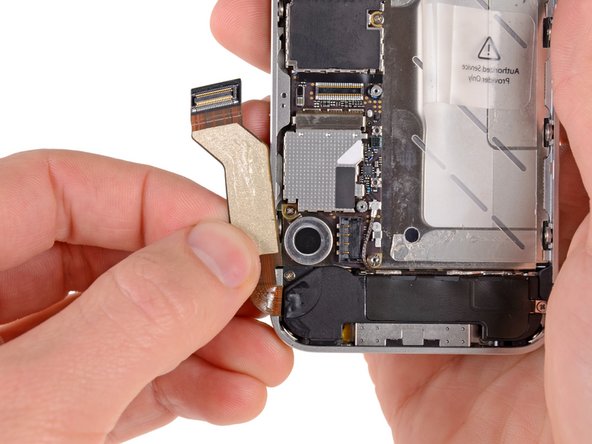

• Peel the dock connector cable off the adhesive securing it to the logic board and the side of the speaker enclosure.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 11

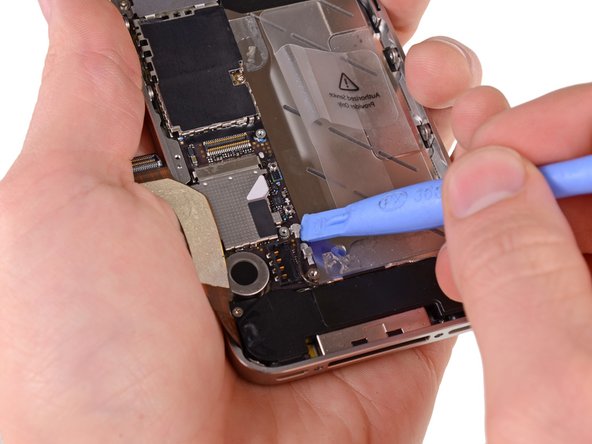

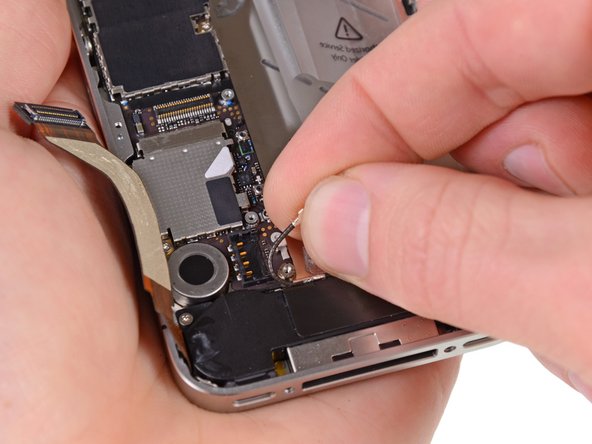

• Use the edge of a plastic opening tool to pry the cellular antenna cable up from its socket on the logic board.
• De-route the cellular antenna cable out from under the metal fingers attached to the logic board.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 12

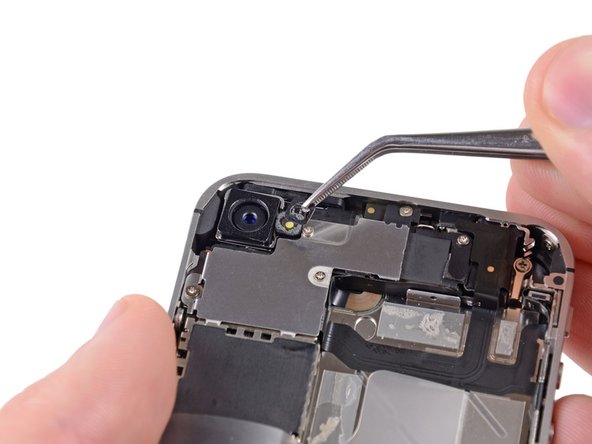

• Be wary of the outer plastic ring located on top of the rear camera's flash assembly. It can be easily displaced if not removed during disassembly.
• You can use tweezers, a plastic opening tool, or a spudger to remove the outer plastic ring.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 13

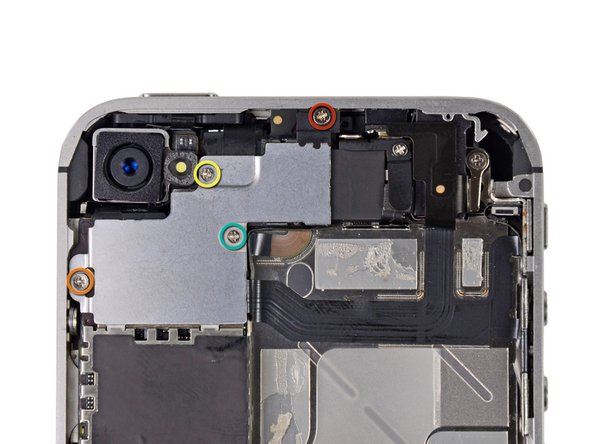

• Remove the following four screws securing the cable cover to the logic board:
• One 2.7 mm Phillips screw
• One 2.6 mm Phillips screw
• One 1.3 mm Phillips screw
• One 1.2 mm Phillips screw
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 14

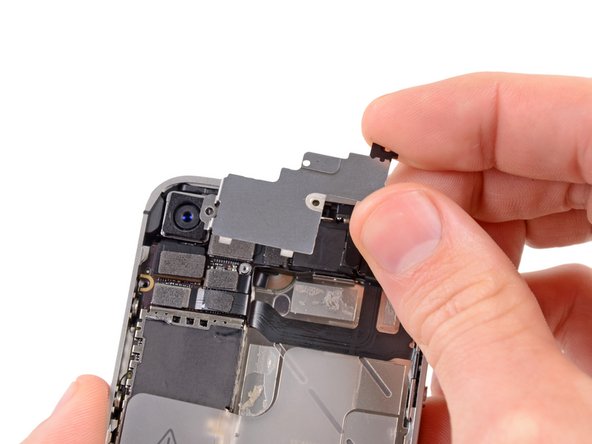

• Use the edge of a plastic opening tool to pry the cable cover tabs out of their slots cut into the EMI shield on the logic board.
• Lift the cable cover from its edge nearest the top and remove it from the iPhone.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 15

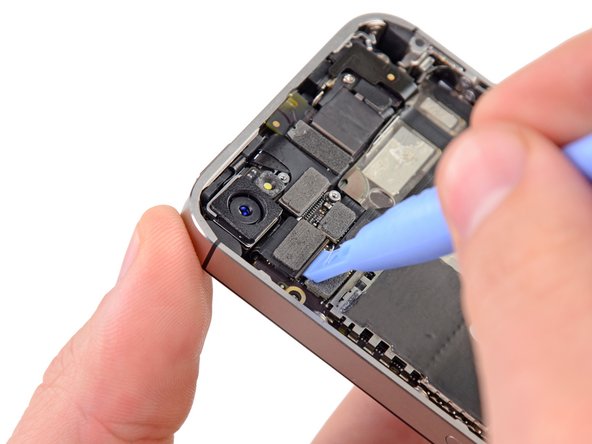

• Use the edge of a plastic opening tool to pry the rear camera connector up from its socket on the logic board.
• Be careful not to break any components off the surrounding area on the logic board as you pry upwards.

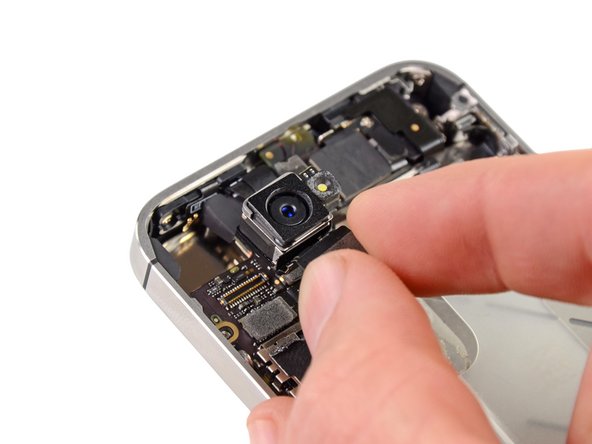

• Remove the rear camera from the iPhone.
• There is a small rubber gasket that sits underneath the rear-facing camera. Make sure that it is properly seated before reassembly.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 16

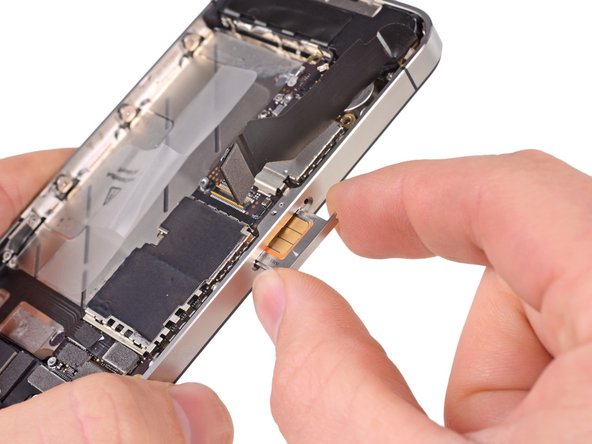

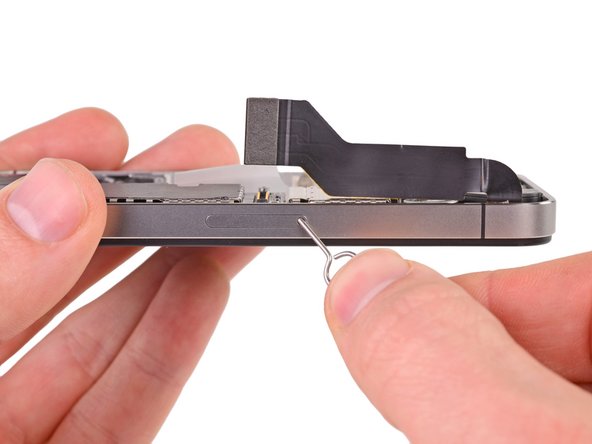

• Use a SIM card eject tool or a paperclip to eject the SIM card and its holder.
• This may require a significant amount of force.
• Remove the SIM card and its holder.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 17

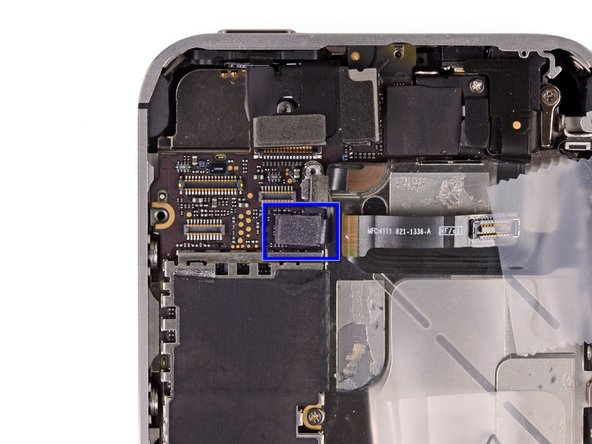

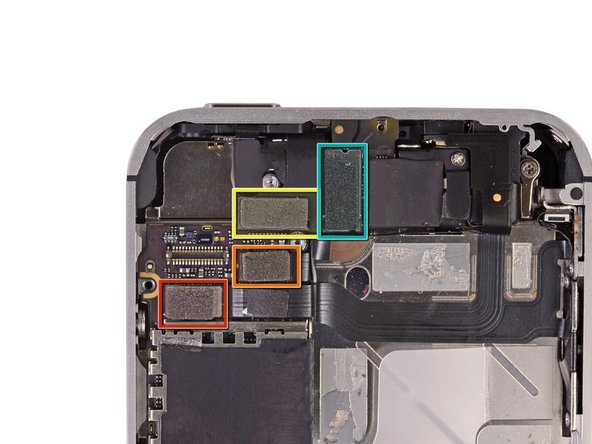

• Remove the five cables near the top of the logic board in the following order:
• Headphone jack/volume button cable
• Front facing camera cable
• Digitizer cable
• Display data cable
• Power button cable (located underneath the headphone jack/volume button cable as shown in the second picture.)
• To disconnect the cables, use the edge of a plastic opening tool to gently lift their connectors up and out of the sockets on the logic board.
• Be careful not to break any of the small and delicate surface mount components as you disconnect the cables.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 18

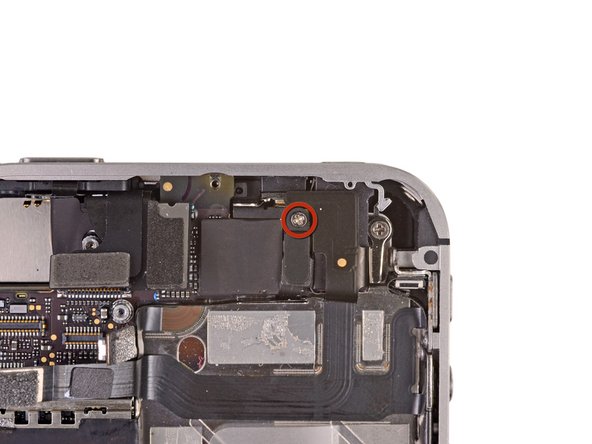

• Remove the 1.5 mm Phillips screw securing the grounding clip to the logic board near the headphone jack.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 19

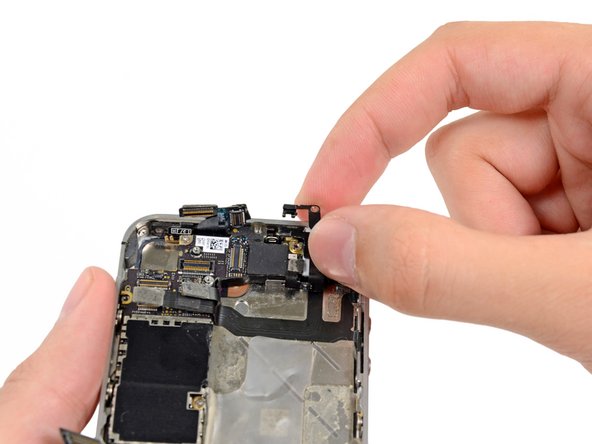

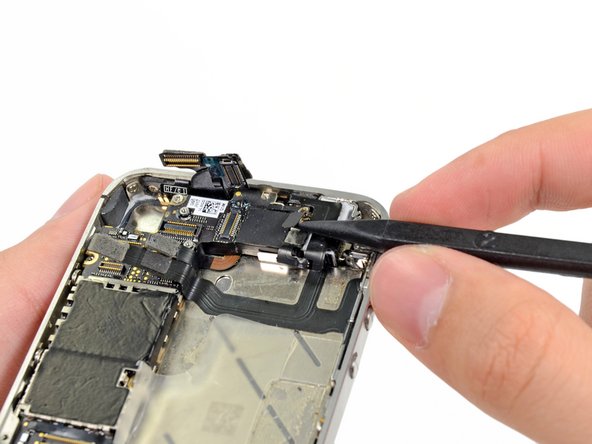

• Use the tip of a spudger to pry the small grounding clip up off the logic board.
• Carefully grasp the grounding clip and remove it from the iPhone.
• Before reassembly, be sure to clean all metal-to-metal contact points on the grounding clip (not the mating halves of connectors) with a de-greaser such as windex or isopropyl alcohol. The oils on your fingers have the potential to cause grounding issues.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 20

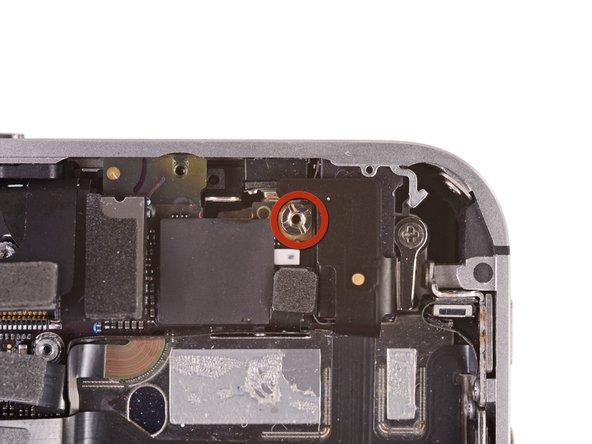

• Use a small flathead screwdriver to remove the 4.8 mm standoff near the headphone jack.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 21

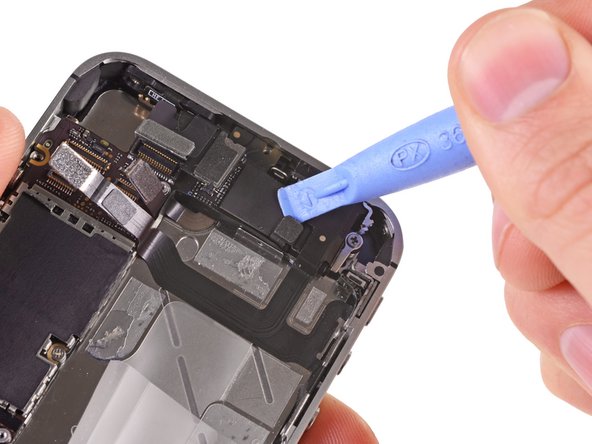

• Use the edge of a plastic opening tool to disconnect the Wi-Fi antenna from the logic board.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 22

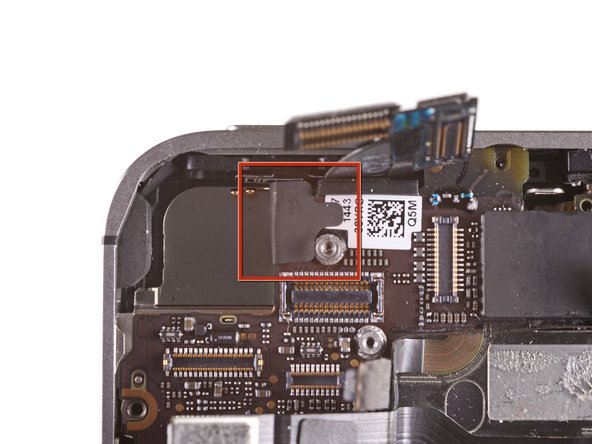

• If present, peel the piece of black tape covering the hidden screw near the power button.

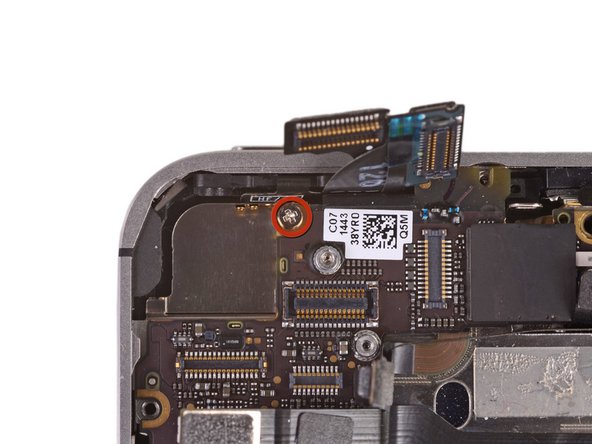

• Remove the 2.6 mm Phillips screw securing the logic board near the power button.
• (Use caution when removing this screw and removing the power contact held by it; the contact tab will come loose with the screw)
• Notice the small rubber bumper under the screen & digitizer cables (which are detached at top above the Q-code). This bumper can fall off of the logic board when removed or get stuck to the cables and fall off later.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 23

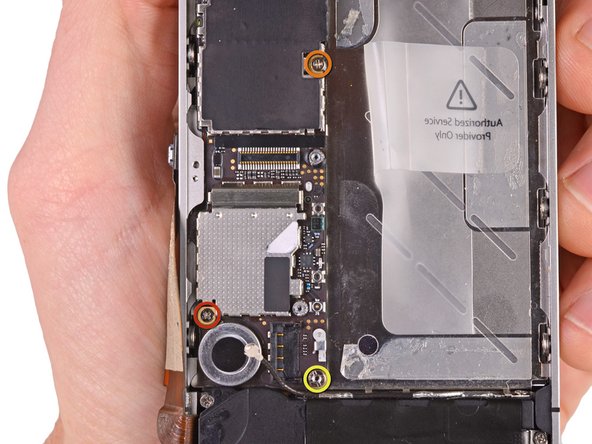

• Remove the following screws securing the logic board to the case:
• One 2.5 mm Phillips screw near the vibrator motor
• One 2.4 mm Phillips screw
• One 3.6 mm standoff along the side of the logic board nearest the battery opening.
• Use a small flathead screwdriver to remove the single 3.6 mm standoffscrew.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 24

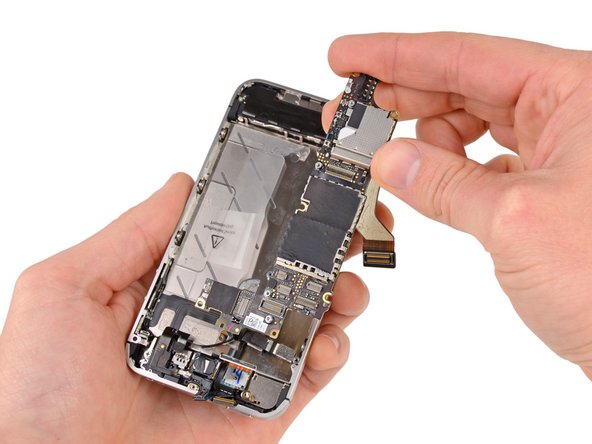

• Carefully lift the logic board from the end closest to the speaker enclosure and slide it away from the top edge of the iPhone.
• Remove the logic board.
• Before reassembly, be sure to clean all metal-to-metal contact points on the logic board (not the mating halves of connectors) with a de-greaser such as windex or isopropyl alcohol. The oils on your fingers have the potential to cause grounding issues.
• There is a small rubber bumper that sits on the top edge of the logic board where the digitizer and screen cables come through the case. It protects the cables as they bend over the top of the logic board. This can either get stuck to the cables or fall off the logic board when it comes out. Look back over step 22 for more details.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 25

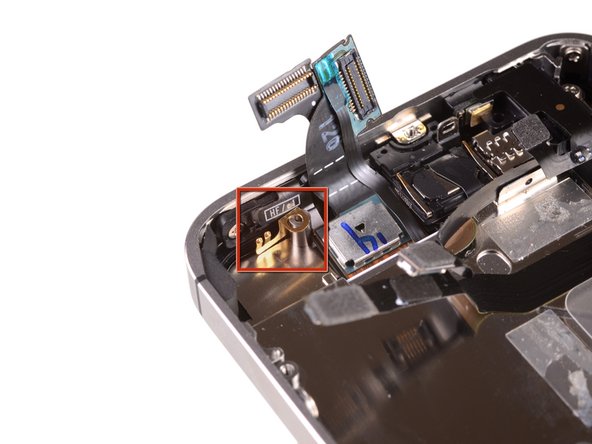

• Be sure not to lose the small grounding finger for the rear facing camera near the power button. This finger rests on top of the PCB, screwed down, and covered with the adhesive black plastic tape.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 26

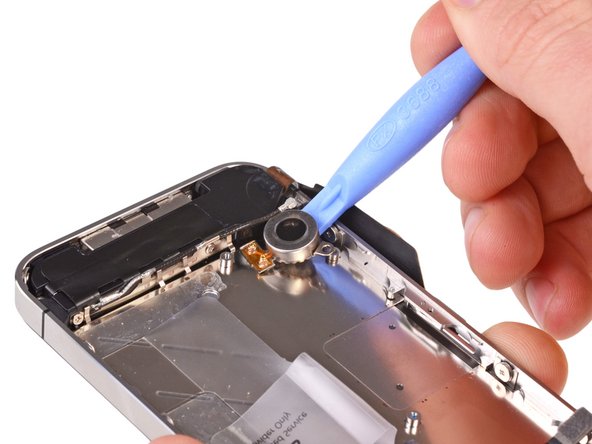

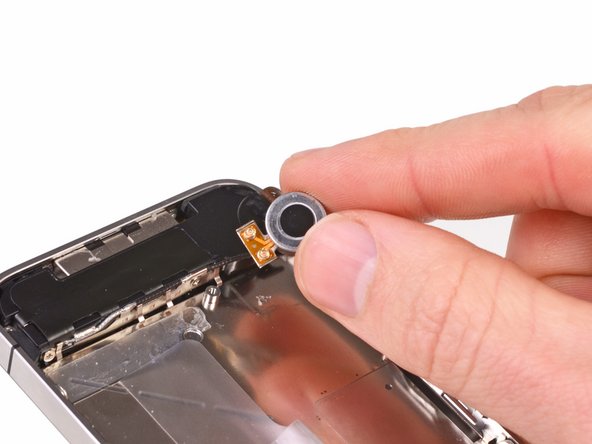

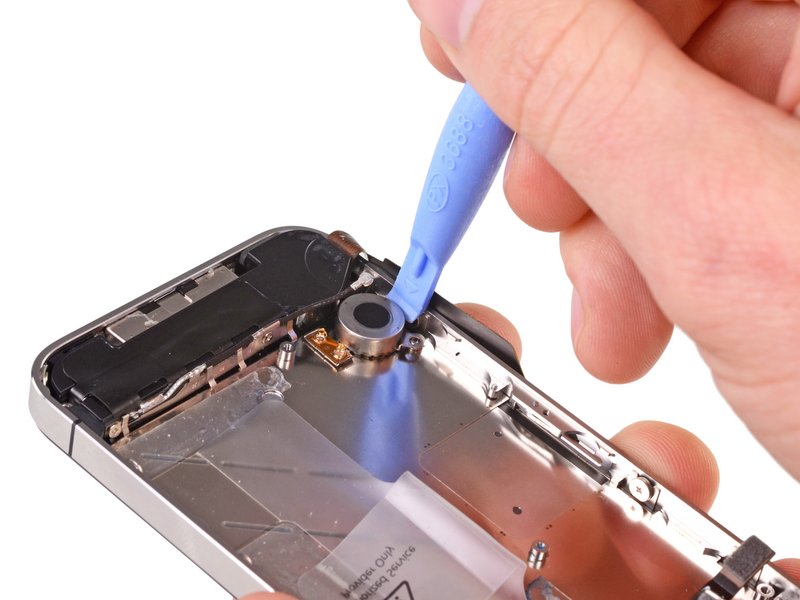

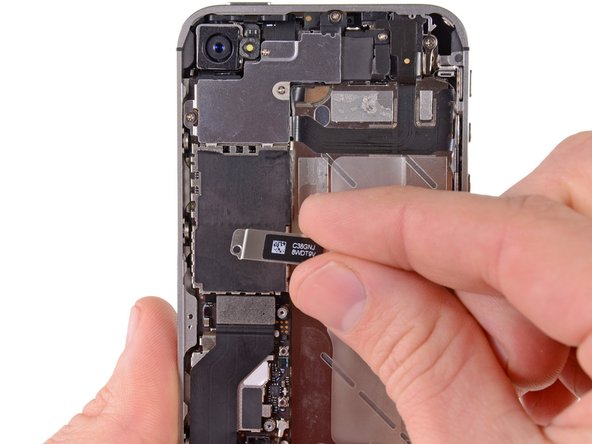

• Wedge the plastic opening tool between the vibrator and the side of the iPhone.
• Pry the vibrator up to release it from the adhesive securing it to the iPhone.
• Remove the vibrator.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
