Introduction
If everything in your iPod works except for the controls, you may need a new click wheel. Replacing the click wheel is an inexpensive but delicate repair.
What you need
-
-
Use a heat gun to soften the adhesive underneath the plastic bezel at the bottom of the iPod.
-

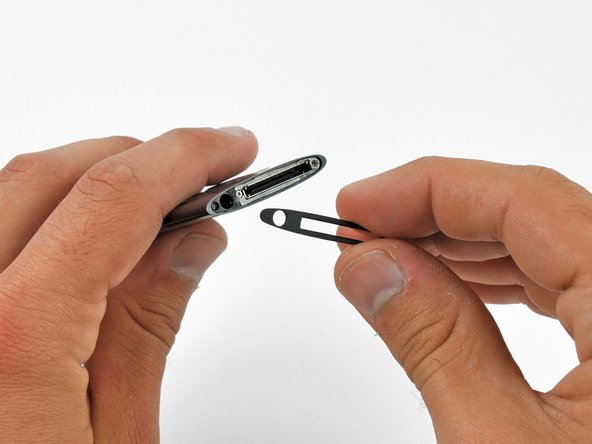

Use a plastic opening tool to pry the bezel from the case of the iPod and remove it.
-
-
-
Unscrew two screws from the metal retainer at the bottom of the iPod:
-
4.4 mm angled Phillips screw
-
5.4 mm Phillips screw.
-

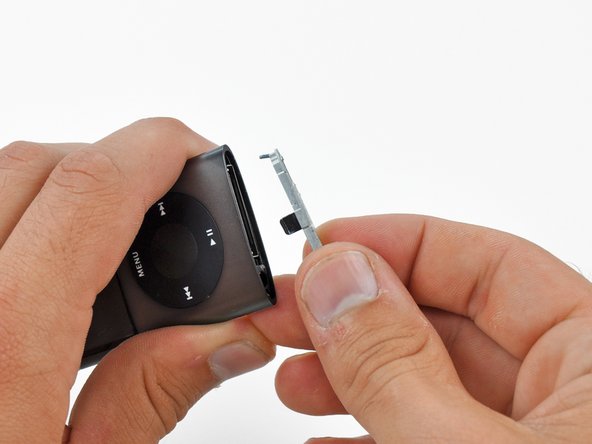

Use a plastic opening tool to pry the metal retainer out from the bottom of the iPod and remove it.
-
-
-

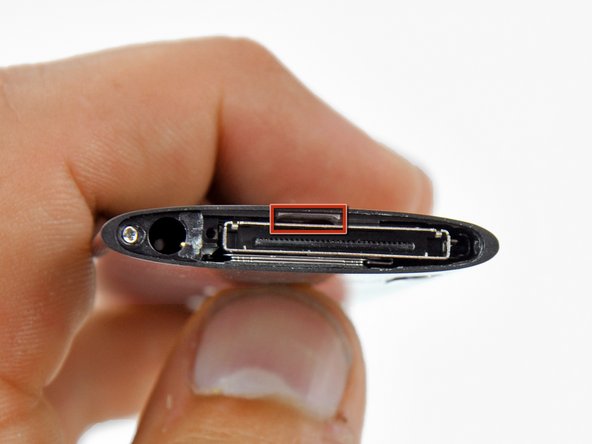

Insert a metal spudger into the slot at the bottom of the iPod just above the dock connector.
-

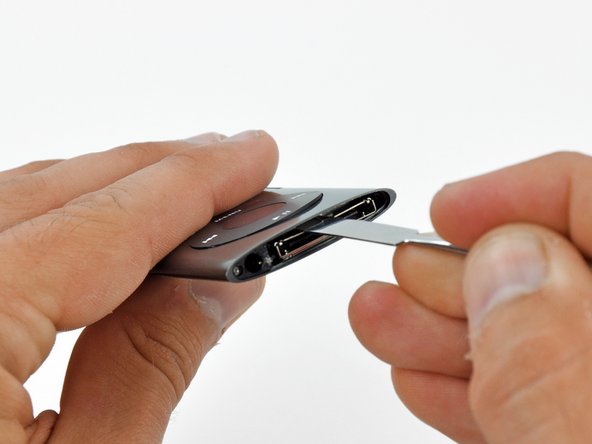

Use the metal spudger to pry up the bottom edge of the click wheel.
-
-
-

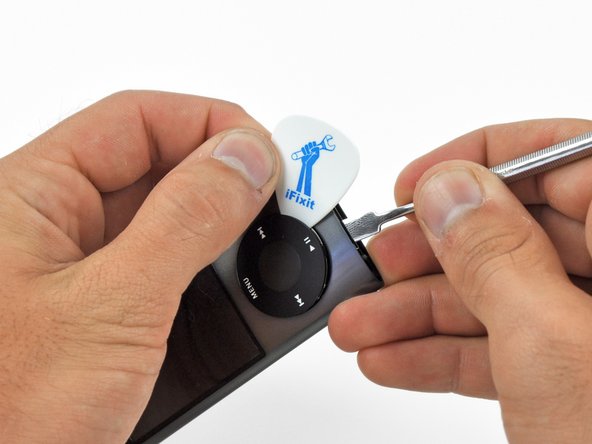

Place a guitar pick between the click wheel and the case of the Nano and remove the metal spudger.
-

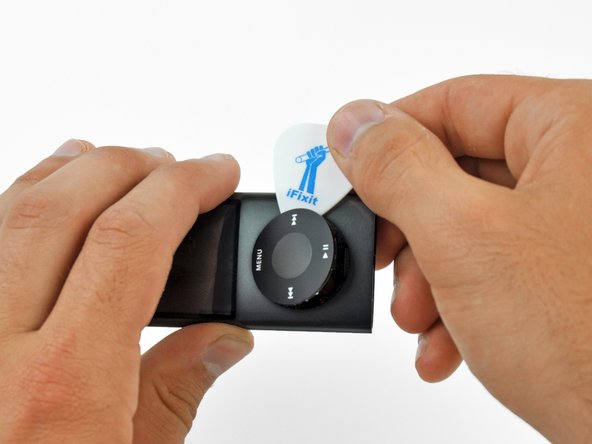

Pry up the edges of the click wheel with the guitar pick until the click wheel comes free from the case.
-
-
-

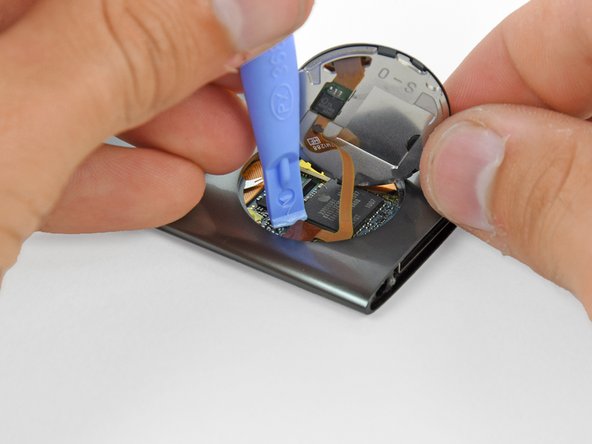

Lift the click wheel out of the way with one hand and use a plastic opening tool to pry the click wheel ribbon cable connector off its socket on the logic board.
-

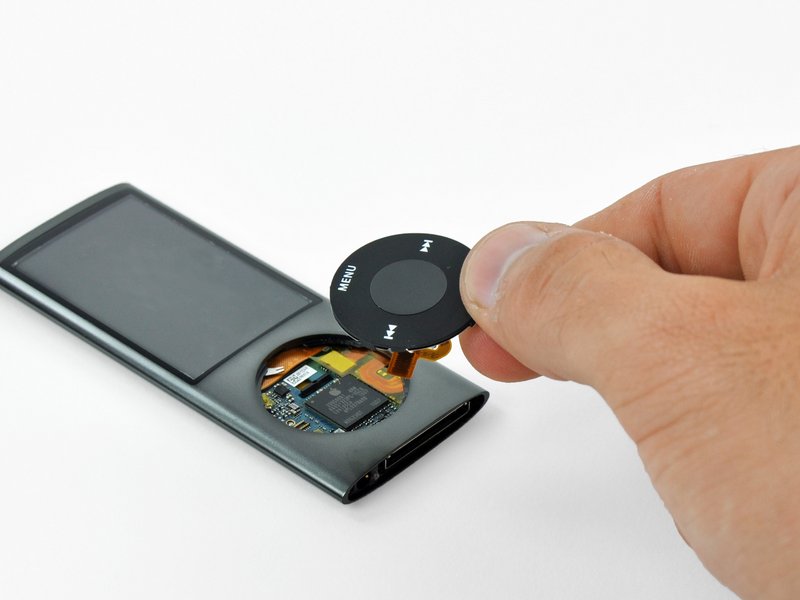

Remove the click wheel.
-
To reassemble your device, follow these instructions in reverse order.
