Introduction

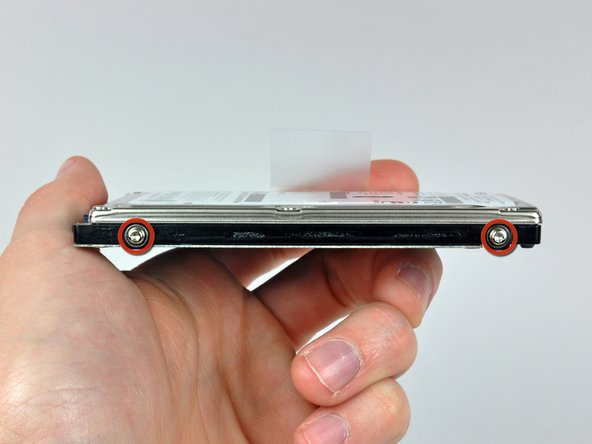

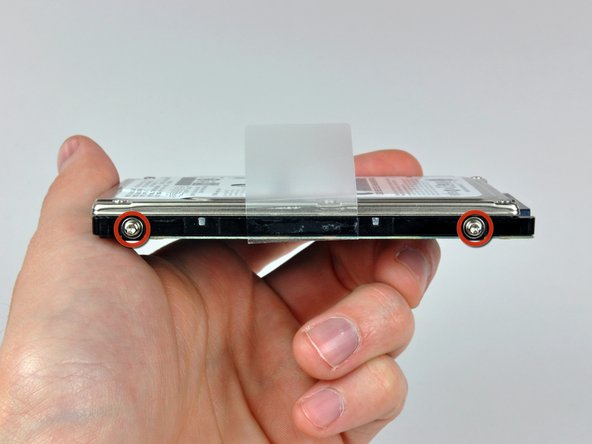

Go to step 1 ↓When replacing your hard drive, you must transfer the four locating pins (removed with a T6 screwdriver) from the old hard drive to the new one.
What you need
Parts
-
1 TB SSD Hybrid 2.5" Hard Drive (Upgrade Kit) Available for sale on iFixit
This kit contains the drive and all tools needed.
-
500 GB SSD Hybrid 2.5" Hard Drive (Upgrade Kit) Available for sale on iFixit
This kit contains the part and tools needed.
-
256 GB Solid State Drive (Upgrade Kit) Available for sale on iFixit
This kit contains the drive and all tools needed.
-
128 GB Solid State Drive (Upgrade Kit) Available for sale on iFixit
This kit contains the part and all tools needed.
Tools
-
-
-
Remove the following 10 screws securing the lower case to the MacBook Pro 13" Unibody:
-
Seven 3 mm Phillips screws.
-
Three 13.5 mm Phillips screws.
-
-
-
Slightly lift the lower case and push it toward the rear of the computer to free the mounting tabs.
-
-
-

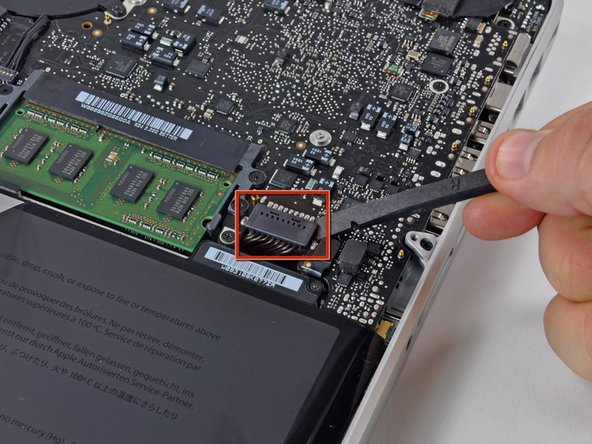

Use the flat end of a spudger to lift the battery connector up out of its socket on the logic board.
-
-
-

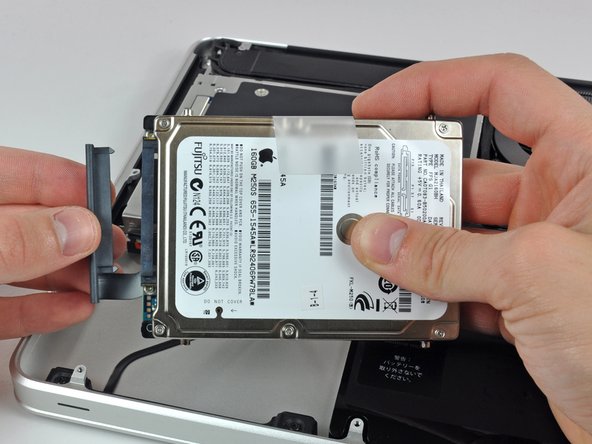

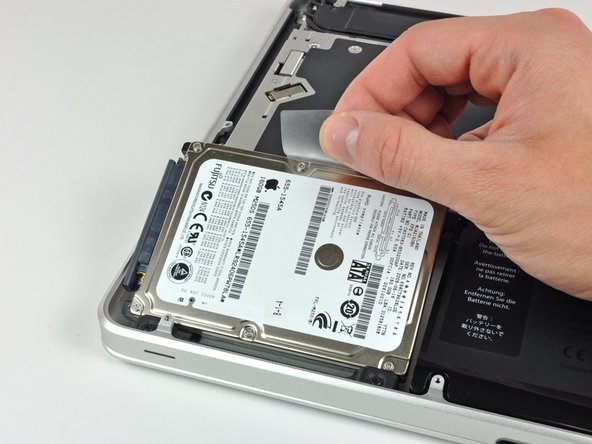

Lift the hard drive by its pull tab and pull it out of the chassis, minding the cable attaching it to the computer.
-
-
To reassemble your device, follow these instructions in reverse order.
